Understanding the Role of Crystal Oscillators in Circuits

A crystal oscillator is an electronic part that sets the frequency in many circuits. This oscillator uses a quartz crystal. The crystal vibrates at a steady speed when voltage is given. The piezoelectric effect in the crystal helps make a stable frequency signal. Frequency stability is important for things like communication systems and timing circuits. Reports show that quartz oscillators can reach flicker floors as low as 2.5 × 10⁻¹⁴ at 5 MHz. The table below gives main usage facts for What Is A Crystal Oscillator in modern uses:

Key Takeaways

• Crystal oscillators use quartz crystals to make steady signals. These signals are very accurate for circuits. The piezoelectric effect in quartz crystals changes electricity into tiny vibrations. It also changes the vibrations back into electricity. There are different types of crystal oscillators. Some types are XO, TCXO, OCXO, and VCXO. Each type has its own level of stability. Some types work better with temperature changes. Crystal oscillators are important in devices that need exact timing. These devices include clocks, computers, and communication systems. They are also used in industrial machines. Good mounting and design help stop frequency drift. They also slow down aging. This makes the oscillator last longer and work better. Things like temperature and shaking can change how well the oscillator works. Special designs help keep the oscillator stable. Crystal oscillators make signals with low phase noise and jitter. This is important for clear signals in radios and GPS. It is also important in digital circuits. Crystal oscillators are very accurate. But they can break easily. They can also be affected by electromagnetic interference. So, they need careful handling and design.

What Is a Crystal Oscillator

Basic Concept

A crystal oscillator is a circuit that uses a quartz crystal. The quartz crystal vibrates when you give it voltage. This happens because of the piezoelectric effect. The crystal gets bigger and smaller, which makes it move back and forth. These movements happen at a certain frequency. The circuit makes these movements stronger and sends them back to the crystal. This keeps the vibrations going. The frequency depends on how thick and what shape the crystal is. People who make the crystals control these things very carefully. Because of this, the crystal oscillator can make a signal that is very accurate.

Note: The piezoelectric effect in quartz crystals helps make exact frequencies. The crystal’s resonance frequency stays steady and can be repeated. This is why it works well in timing and communication circuits.

Key Components

A normal crystal oscillator circuit has a few main parts:

• Quartz Crystal Resonator: This is the most important part. The crystal’s size and shape decide the frequency.

• Amplifier: This part makes the weak signal from the crystal stronger.

• Feedback Network: This part sends some of the output back to the start. This keeps the vibrations going.

• Load Capacitors: These help set the right frequency and make it more stable.

Quartz crystals act like they have resistance, inductance, and capacitance all together. This is called an equivalent circuit. It helps the oscillator keep a steady frequency. Quartz crystals have a high Q factor, sometimes over 100,000. This means they lose very little energy each time they vibrate. Because of this, the frequency stays very exact and the signal stays strong for a long time.

• The main frequency of a quartz crystal depends on its thickness and shape.

• The crystal can work in both series and parallel resonance modes. Each mode has its own frequency.

• The equivalent circuit has low resistance, big inductance, and small capacitance. This shows how the crystal moves.

• The resonance frequencies stay steady and can be repeated. This makes them great for use in oscillators.

Frequency Reference

Crystal oscillators are used as frequency references in many devices. They give timing signals to computers, clocks, radios, and communication systems. It is very important that the frequency does not change much. Even small changes can cause problems with data or timing.

Crystal oscillators are better than other oscillator circuits for keeping the frequency steady. Things like temperature, humidity, and shaking can change the frequency. But special designs like TCXO and OCXO help stop these problems. For example, circuits with resistors and thermistors can keep the frequency within about ±1 ppm even if the temperature changes a lot. Some circuits can do even better, keeping it within ±0.5 ppm. Because of these features, crystal oscillators are the best choice when you need very exact frequency and high accuracy.

Quartz Crystal Oscillator Structure

Quartz Properties

Quartz has special features that make it great for oscillators. When you put voltage on quartz, it changes shape a little. This is called the piezoelectric effect. The size and shape of the quartz decide how it moves. These movements make a steady signal. Quartz crystals also have acceleration sensitivity. If the crystal gets pushed or moved, its main frequency can change. The way the force hits the crystal matters a lot. If the force goes the same way as the crystal’s sensitivity, the frequency changes the most. If the force is sideways, the change is almost nothing. Quartz also reacts to things around it. If the crystal touches a liquid, the liquid’s thickness and weight can change the frequency. If the crystal’s surface is rough, it can hold more liquid and change the signal. This shows that both the inside of the quartz and what is around it are important for how the oscillator works.

Crystal Mounting

How the crystal is held in place is very important. If the holder squeezes the crystal too much, the frequency can slowly change. This is called aging. Good holders use just enough solder and heat to stop extra stress. If the holder is not good, the crystal can bend over time and the frequency will change. This can make the oscillator not work well after a while. Careful mounting keeps the frequency steady for a long time. Engineers try different ways to hold the crystal to find the best one.

Tip: Good mounting keeps the crystal safe and helps the oscillator last longer and work better.

Resonant Frequency

The resonant frequency is the main speed the crystal moves at. Many things can change this, like the crystal’s thickness, shape, and how it is cut. Picking the right resonant frequency is very important when making a quartz crystal oscillator. The table below lists some big things that change the resonant frequency and how well it works:

How the crystal is cut also matters a lot. For example, AT-cut crystals can change frequency by a few parts per million if the temperature changes. Aging can make the frequency change slowly over many years, especially if it gets hot. A real quartz crystal can have a series resonant frequency and a parallel resonant frequency that are about 18 kHz apart near 10 MHz. Quartz has a high Q-factor, so the oscillator keeps a very steady frequency, much better than most other circuits.

Operation of Quartz Crystal

Piezoelectric Effect

Quartz crystals have a special property called the piezoelectric effect. When you put voltage on the crystal, it changes shape a little. This change is tiny but happens fast. The crystal can bend or stretch, depending on the voltage direction. When the voltage stops, the crystal goes back to normal. If you squeeze the crystal, it makes a small voltage. This effect works both ways. The piezoelectric effect lets the crystal turn electricity into movement and back.

Lab tests show how this works. If you shake a piezoelectric material, it makes an electric field. The field’s direction and strength depend on the force and the material. The electric field moves charges inside the crystal. These changes can even help chemical reactions on the surface. Scientists use math to measure how much charge moves when the crystal shakes. The amount of charge depends on the force and the crystal’s structure. This shows the piezoelectric effect is important for quartz crystal operation.

Mechanical Resonance

A quartz crystal does not vibrate at just any speed. It likes to move at certain speeds called resonant frequencies. The main resonant frequency depends on the crystal’s size, shape, and cut. At this special speed, the crystal uses little energy. The vibrations last a long time and stay strong. This is called mechanical resonance.

Engineers use different ways to study resonance in crystals. They use frequency response analysis to find the right frequencies. Modal analysis shows how the crystal moves in different ways. Fast Fourier Transform breaks the vibration into parts. Vibration testing checks how the crystal reacts to forces. These methods help engineers control the resonance. The Q-factor tells how well the crystal keeps vibrating. A high Q-factor means the crystal loses little energy. This makes the oscillator very steady and accurate.

Simulations help engineers see how the crystal acts. They show the crystal is most sensitive to forces along its main axis. The first resonant frequency is usually high, which helps stop unwanted vibrations. These facts help engineers make better oscillators for many uses.

Electrical Oscillation

The quartz crystal works with an oscillator circuit. The circuit gives voltage to the crystal, making it vibrate. The crystal’s vibration makes an electric signal. The circuit sends this signal back to the crystal, keeping the vibration going. This back-and-forth makes a steady signal at one frequency.

The crystal acts like a special RLC circuit. It has resistance, inductance, and capacitance. The series resonant frequency is where inductance and capacitance balance. At this point, impedance is lowest and the vibration is strongest. The formula is fs = 1 / (2π√(LsCs)), where Ls is motional inductance and Cs is motional capacitance. Below this frequency, the crystal acts like a capacitor. Above it, the crystal acts like an inductor until it reaches the parallel resonant frequency. At this point, impedance is highest. The circuit can use either series or parallel resonance.

Series and Parallel Resonance

Quartz crystals can work in two main ways: series and parallel resonance. In series resonance, the crystal’s impedance is lowest. The circuit can easily keep the vibration going. In parallel resonance, the crystal’s impedance is highest. The circuit uses extra capacitance to set this frequency. The choice depends on what the circuit needs.

Small changes in load capacitance can shift the frequency. Engineers use math to predict how much the frequency will change. The frequency change depends on motional and shunt capacitance. This helps engineers design circuits that stay steady even if things change.

Fundamental and Overtone Modes

A quartz crystal can vibrate at its main frequency, called the fundamental mode. It can also vibrate at higher frequencies, called overtones. Overtone frequencies are odd multiples of the main frequency. Using overtone modes lets the oscillator reach higher frequencies without making the crystal too thin. This is helpful in circuits that need very high-frequency signals.

How the quartz crystal works in these modes gives engineers choices. They can pick the best mode for the job, so the oscillator works well in different devices.

Note: The piezoelectric effect, mechanical resonance, and electrical oscillation make quartz crystals very useful in circuits. These features help create steady, accurate signals for many uses.

Crystal Oscillators in Circuits

Frequency Stability

Crystal oscillators help circuits keep a steady frequency. They use a quartz crystal to control the speed. This keeps the frequency stable, even if it gets hot or cold. Some types, like TCXO, are tested from -40 to 85°C. TCXOs can have a temperature coefficient as low as ±0.5 ppm. This means the frequency barely changes, even in tough places. TCXOs come in many sizes for different devices.

Other types, like OCXO, keep the crystal at one temperature. This gives even better frequency stability. OCXOs are used where high accuracy is needed, like in telecom and test gear. Crystal oscillators with high stability help devices send signals at the right time. This keeps data safe and makes sure systems work together.

• TCXO works over a wide temperature range.

• OCXO keeps the crystal at a set temperature for best stability.

• Both types help circuits work well in hard conditions.

Output Waveforms

The output waveform shows what the signal looks like. Engineers check different features to make sure it fits the job. The table below lists important output waveform features:

Crystal oscillators can make different waveforms, like sinewaves. The shape and cleanness of the waveform matter for each use. For example, audio systems need clean signals with little distortion. Engineers also look at phase noise, which shows how much the signal jumps around. Lower phase noise means a clearer signal. The output voltage and frequency must match what the circuit needs. Good stability and low phase noise help the oscillator work well in radios and computers.

Environmental Factors

Many things in the environment can change how a crystal oscillator works. Temperature is the main thing. When it gets hotter or colder, the frequency can drift. Studies use real temperature data from places like the James Wildlife Reserve in California to test how oscillators react. Engineers compare TCXOs and cheaper oscillators without compensation. They use special algorithms to fix frequency drift from temperature changes.

Tests on waveform generators show these fixes can make cheap oscillators five times more stable when temperatures change. Engineers use models and real tests to see how well the oscillator holds its frequency. This helps them pick the right type for each job. By knowing how temperature and other things affect the oscillator, they can build circuits that keep high stability, even in tough places.

Tip: Picking the right crystal oscillator helps circuits stay accurate, even when the environment changes.

Types of Crystal Oscillators

XO

A standard crystal oscillator, called XO, is the simplest kind. It uses a quartz crystal to set its frequency. There are no special parts to control temperature or change the frequency. The XO gives a steady signal for basic timing. Many clocks and digital circuits use XOs. They work best where the temperature stays about the same.

XOs use little power and have a simple design. They do not have features like temperature compensation or voltage control. The frequency stability depends on the crystal’s quality and the circuit. For example, a normal XO might have a frequency tolerance of about ±50 ppm. This means the signal can drift a bit if the temperature changes or as the crystal gets older. Designers pick XOs for simple timing jobs where high accuracy is not needed.

Note: XOs are good for simple devices that need a steady clock but not perfect accuracy.

TCXO

A temperature compensated crystal oscillator, or TCXO, is better than a basic XO. It has extra parts like thermistors and resistors to sense temperature changes. The circuit then adjusts the frequency to keep it steady. TCXOs can keep their frequency stable even when the temperature changes a lot.

TCXOs use a voltage divider to make a correction voltage. This voltage goes to a varactor diode, which helps fine-tune the frequency. The process cannot make perfect compensation because each crystal is a little different. Still, TCXOs usually have aging rates between 0.50 ppm/year and 2.0 ppm/year. Some TCXOs let you adjust the frequency by about ±5 ppm to fix aging over time.

TCXOs work well in portable electronics, GPS devices, and small base stations. They use little power and have good stability. The table below shows how TCXOs compare to other types:

OCXO

An oven controlled crystal oscillator, or OCXO, gives the best frequency stability. It keeps the quartz crystal at a steady high temperature, usually between 80°C and 110°C. The oven inside the OCXO protects the crystal from outside temperature changes. This makes the OCXO signal very steady, even in tough places.

OCXOs use more power than XOs or TCXOs because they heat the oven. They often need 1.5 to 2.0 watts of power. The aging rate is very low, and the frequency stays steady for a long time. OCXOs are used in radio transmitters, cell towers, and military equipment. These places need the most accurate timing.

Technical reviews show OCXOs have the smoothest frequency curve over temperature. They also have the lowest phase noise and jitter. This makes them the best choice for important timing and communication systems.

Tip: OCXOs are best for jobs that need the most stable frequency, but they use more power and cost more than other types.

VCXO

A VCXO is a voltage controlled crystal oscillator. You can change its frequency by using a control voltage. It has a quartz crystal like other oscillators. But it also has a varactor diode. The varactor diode changes its capacitance when the voltage changes. This makes the oscillator’s frequency go up or down.

Engineers use VCXOs when they need to adjust the frequency a little. They use them in radios, network gear, and audio systems. These devices must stay in sync with other systems. The VCXO helps keep everything working together.

VCXOs have a spot for control voltage. When you change the voltage, the frequency changes a bit. This is called the “pull range.” Most VCXOs can change by about ±50 ppm. Some special ones can change even more. The pull range depends on the crystal and the circuit.

Tip: VCXOs work best if the control voltage does not jump around. If the voltage is not steady, the frequency can drift and cause problems.

VCXOs are stable, but not as much as TCXOs or OCXOs. Their main benefit is that you can adjust the frequency right away. This is helpful in phase-locked loops and clock recovery circuits. These systems need to match their timing to other signals. The VCXO lets them make small changes as needed.

Here are some main things about VCXOs:

• You can change the frequency with the control voltage.

• Good for systems that must stay in sync.

• Used in communication, broadcasting, and digital audio.

• Gives a mix of stability and flexibility.

The table below shows how VCXOs compare to other types:

A voltage controlled crystal oscillator lets engineers control timing with accuracy and flexibility. This is why many modern circuits use VCXOs.

Applications

Timing Devices

Timing devices use crystal oscillators to keep time right. You can find these in watches, clocks, and many gadgets. The quartz crystal inside shakes at a certain speed. This helps the device count seconds, minutes, and hours. Many jobs use these timing devices so machines work together. For example, cars use them in engine controls and safety parts. Phones and smartwatches also need these oscillators for exact timing.

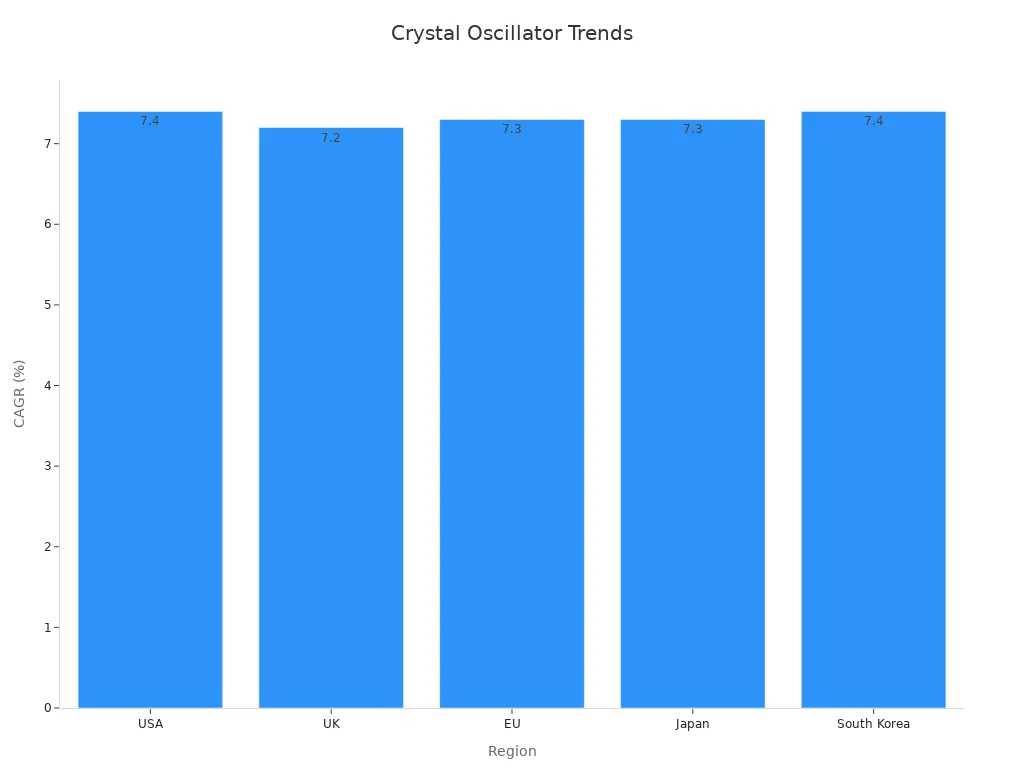

The market for timing devices with crystal oscillators is getting bigger. The table below shows key facts about this market:

Note: Timing devices with crystal oscillators help keep things working together, from cars to smart home gadgets.

Digital Circuits

Digital circuits need steady timing signals to work well. Crystal oscillators give these signals, so each part acts at the right time. Computers, microcontrollers, and digital watches all use these oscillators. The steady clock signal helps the processor run programs and move data without mistakes. If the timing is off, the system can slow down or stop.

Engineers choose crystal oscillators for digital circuits because they are accurate and use little power. Surface mount technology lets these oscillators fit in small spaces. This is important for new gadgets. As devices get smaller and stronger, they need better timing. Crystal oscillators help digital circuits stay dependable as technology changes.

Communication Systems

Communication systems need crystal oscillators for clear and steady signals. Wireless devices, like cell phones and radios, use these to set the right frequency for sending and getting data. Low phase noise in the oscillator makes radar work better and digital signals clearer. In radar, a steady oscillator helps measure speed and distance well. In digital communication, it lowers mistakes and keeps the signal sharp.

Tests show that power supply noise can change how crystal oscillators work in wireless devices. Engineers use special tools to check jitter and phase noise. They found not all oscillators act the same with noise. Some keep a steady signal, but others have more mistakes. Picking the right oscillator helps lower errors and keeps communication systems working well.

Tip: Good crystal oscillators make audio, radar, and navigation systems better by giving a steady timing signal.

Industrial Uses

Crystal oscillators are very important in many factories and plants. They help machines work on time and do their jobs right. Robots, sensors, and power systems all use these parts. Many companies pick crystal oscillators because they are very accurate and dependable.

Key Industrial Applications:

Factories use crystal oscillators in programmable logic controllers, or PLCs. These controllers need good timing to run machines and robots. If the timing is wrong, machines can mess up or stop. Crystal oscillators keep the timing steady and help avoid mistakes.

Many sensors in factories also need crystal oscillators. For example, flow meters use them to check how fast liquids or gases move. The oscillator sets the timing for the sensor’s signals. This helps workers get good readings and make smart choices.

Power plants and energy companies use crystal oscillators to keep the electric grid safe. The grid must work at the same frequency everywhere. Even a small change can cause big trouble, like blackouts. Crystal oscillators help keep the frequency steady so the grid works well.

Note: Crystal oscillators help factories have less downtime. They make sure machines start and stop at the right time. This saves money and keeps people safe.

Test and measurement tools also need crystal oscillators. Tools like oscilloscopes and signal analyzers need a clean, steady signal. This lets engineers check other machines for problems. A crystal oscillator gives these tools the accuracy they need.

In transportation, crystal oscillators help control train signals and traffic lights. These systems must work at the right time to keep people safe. If the timing is off, accidents can happen. Crystal oscillators help stop these risks.

Main Benefits of Crystal Oscillators in Industry:

• High accuracy and stability

• Low power use

• Long life and reliability

• Resistance to vibration and temperature changes

Engineers choose crystal oscillators for hard jobs. They trust these parts to keep factories, power plants, and transport systems working well. Crystal oscillators help industry run better every day.

Integration and Limitations

Circuit Integration

Engineers have some problems when adding crystal oscillators to circuits. Each oscillator must fit the circuit’s needs for frequency, power, and stability. Some important things to check are motional impedance, resonant mode, and drive level. If these do not match, the oscillator might not start or could lose accuracy. The oscillation allowance (OA) helps engineers see if the circuit will start up well. OA uses math to check if there is enough extra power to beat losses in the crystal.

When many oscillators work close together, they can bother each other. For example, high-frequency oscillators near each other might cause problems. Using special integrated circuits, like the LS-TTL 74LS00, can help stop this. Engineers test these ideas in labs to make sure each oscillator works without trouble.

Modern circuits also need to control jitter, which means small timing changes. Some integrated oscillators can keep rms phase jitter under 1.0 picosecond. Low jitter is important for clear signals in computers and communication devices.

Tip: Matching the crystal and circuit well helps stop startup and interference problems.

Design Considerations

When designing with crystal oscillators, engineers look at a few main things. These include frequency stability, phase noise, jitter, and how temperature changes affect the circuit. The table below compares crystal oscillators and MEMS oscillators, which are another timing choice:

Crystal oscillators are very accurate but can be hurt by temperature and shock. MEMS oscillators are tougher and work well in hard places. Engineers must think about these things when picking the right oscillator for a project.

Limitations

Crystal oscillators are accurate, but they have some problems. They might not start in cold places and can need up to 15 hours to fix. If the crystal does not match the circuit, it can fail and take 40 hours to repair. Electromagnetic interference (EMI) can also cause trouble, leading to more tests and higher costs.

• Cold startup problems may need long fixes.

• Wrong crystal settings can make the oscillator fail.

• EMI problems can add up to 50 hours of work and cost more.

• Quartz crystals break easily if dropped or shaken.

• Frequency drift and aging mean you must check and fix them often.

• More failures mean higher costs for repairs and new parts.

Crystal oscillators are still a top pick for accuracy, but engineers must plan for these problems. MEMS oscillators are a strong choice for many new uses.

Crystal oscillators help circuits keep the right frequency. This makes them very important in electronics. They have a high quality factor and low jitter. These features help GPS, planes, and communication systems work on time. The table below lists their main strengths and limits:

More people want 5G, IoT, and car tech. This pushes engineers to make better designs for tough places and new uses. Crystal oscillators will keep being important for future electronics.

FAQ

What makes a crystal oscillator different from other oscillators?

A crystal oscillator uses a quartz crystal to set its frequency. Other oscillators use things like coils or capacitors. The crystal gives much better frequency stability and accuracy.

Why do devices need such stable timing?

Stable timing helps devices work together. Computers, phones, and radios need exact timing. This lets them send data, keep time, and avoid mistakes. Even small timing errors can cause big problems.

Can temperature changes affect a crystal oscillator?

Yes, temperature changes can make the frequency shift. Special types like TCXO and OCXO help keep the frequency steady. They work well even when it gets hot or cold.

How long does a crystal oscillator last?

Most crystal oscillators work for many years. Good mounting and careful design help them last longer. Aging can slowly change the frequency, but most devices work well for a long time.

Are crystal oscillators fragile?

Quartz crystals can break if dropped or shaken hard. MEMS oscillators are tougher than quartz ones. Engineers pick crystal oscillators for accuracy, but they must handle them with care.

What is phase noise, and why does it matter?

Phase noise shows how much the signal moves around. Low phase noise means a cleaner signal. Radios, clocks, and test tools need low phase noise to work their best.

Can you adjust the frequency of a crystal oscillator?

Some types, like VCXO, let engineers change the frequency with a control voltage. Most basic crystal oscillators do not allow easy adjustment.

Tip: Always check what kind of oscillator you have before trying to change its frequency.

Where can you find crystal oscillators in daily life?

People use crystal oscillators in watches, computers, phones, cars, and even kitchen appliances. These parts help devices keep time and work together smoothly.
