What is a Varactor Diode?

Definition and Basic Function

A varactor diode is a special type of semiconductor. It works like a capacitor that changes with voltage. Unlike regular diodes, it doesn’t just let current flow one way. Instead, its capacitance changes when reverse voltage is applied. This makes it useful for circuits needing precise adjustments.

Think of a varactor diode as a capacitor that can change size. Its ability to adjust capacitance helps in tasks like tuning frequencies. It’s used in things like radios and TVs to quickly change channels or frequencies. These diodes are important for making accurate adjustments in electronic devices.

Key Features of Varactor Diodes

Reverse Bias Operation

A varactor diode only works in reverse bias mode. When reverse voltage is applied, current doesn’t flow through it. Instead, a depletion region forms at the PN junction. This region acts like the insulating layer of a capacitor. The size of this region changes with voltage, affecting the diode’s capacitance.

Voltage-Controlled Capacitance

The main feature of a varactor diode is controlling capacitance with voltage. Higher reverse voltage makes the depletion region wider, lowering capacitance. Lower reverse voltage makes the region smaller, increasing capacitance. This lets the diode adjust frequencies in circuits with great accuracy.

Tip: Changing capacitance with voltage makes varactor diodes vital for wireless networks, radar, and GPS systems.

Differences Between Varactor Diodes and Standard Diodes

Varactor diodes work differently from regular diodes. Regular diodes convert AC to DC, while varactor diodes act as adjustable capacitors. Their capacitance changes with reverse voltage, unlike standard diodes.

Also, varactor diodes use their depletion region as an insulator. This lets them act as variable capacitors for tuning circuits and frequency control. Regular diodes don’t have this ability and are mainly used for tasks like rectifying signals or regulating voltage.

How Does a Varactor Diode Work?

The Role of Reverse Bias in Capacitance Control

Depletion Region and Capacitance Variation

When reverse bias is applied, the depletion region in the varactor diode grows. This region acts like the insulating part of a capacitor. Its size changes the diode's capacitance. A larger depletion region lowers capacitance, while a smaller one raises it. This makes the diode useful for adjusting circuits.

More reverse voltage makes the depletion region bigger, reducing capacitance.
Less reverse voltage makes the depletion region smaller, increasing capacitance.

Changing the voltage lets you control the diode's capacitance. For example, in the GVD30601-001 model, capacitance decreases as voltage increases. This happens because the depletion region grows with the square root of the voltage.

Voltage-Capacitance Relationship

The link between voltage and capacitance in a varactor diode is uneven. At low voltages, capacitance drops quickly. At higher voltages, the drop slows down and levels off. This feature is important for fine-tuning frequencies in devices like RF filters or oscillators.

Note: Adjusting capacitance with voltage makes varactor diodes vital for systems like 5G and GPS.

PN Junction and Capacitance Modulation

The pn junction in a varactor diode helps change capacitance. Reverse bias changes the electric field at the junction. This shifts the charge in the depletion region, altering capacitance. Manufacturers design these diodes to work well for specific uses.

For example, the MAVR-011020-1411 diode has a capacitance range from 0.025 to 0.275 pF. This wide range is ideal for high-frequency tasks needing precise tuning. Special circuits keep the reverse voltage steady, ensuring reliable capacitance control.

Mathematical Representation of Capacitance in Varactor Diodes

Engineers use math to describe how varactor diodes behave with reverse bias. These equations help design circuits that use the diode's adjustable capacitance.

Equation	Description
Eq. (1)	Capacitance drops fast at first, then slows as voltage rises.
Eq. (6)	AC capacitance depends on bias voltage and input power level.

Circuits often include parts like bias inductors and blocking capacitors. These parts manage the reverse voltage across the diode. This setup ensures the diode meets system frequency needs and works as a variable capacitor.

Applications of Varactor Diodes in Electronics

Varactor diodes are very important in many electronic uses. They work like adjustable capacitors, making them useful for tuning circuits, frequency changes, and communication systems. Let’s look at some of their main uses.

Tuning Circuits

Varactor diodes are great for tuning circuits because they change capacitance with voltage. This helps adjust frequencies accurately, which is needed for high-frequency tuning.

Voltage-Controlled Oscillators

Voltage-controlled oscillators (VCOs) use varactor diodes to create signals with adjustable frequencies. Changing the reverse voltage changes the output frequency. This is helpful in wireless systems, where VCOs are part of frequency synthesizers. For example, RF and microwave VCOs often use semiconductor varactor diodes for precise frequency control.

RF Filters and Amplifiers

In RF filters and amplifiers, varactor diodes help adjust frequencies. They improve signal quality by tuning the filter’s range. A 1024-element RIS design using varactors shows this. It creates a 180° phase shift at 5.8 GHz with low power use. This makes varactor diodes perfect for advanced communication systems needing high-frequency tuning.

Frequency Modulation and Demodulation

Varactor diodes are also key in frequency modulation (FM) and demodulation. Their adjustable capacitance helps control signal frequencies well.

FM Radio Systems

In FM radios, varactor diodes adjust the carrier frequency. Changing the bias voltage shifts the circuit’s resonant frequency. For example, raising the voltage from 0 to 19 V can move the frequency from 2.35 to 2.7 GHz. This ensures clear and steady signal transmission.

Phase-Locked Loops

Phase-locked loops (PLLs) use varactor diodes to keep frequencies stable. The diode’s capacitance adjusts the oscillator to match the input signal. This is crucial in systems like GPS and 5G, where accurate frequency control is needed.

Other Communication System Applications

Varactor diodes are essential in today’s communication systems. They are used in VCOs, matching networks, and phase shifters. Their demand has grown with 5G, IoT, and car technology advancements.

Application Segment	Description
Voltage-Controlled Oscillators	Used in frequency synthesizers for wireless communication systems like 5G.
Driving Forces	1. 5G and Beyond: High-performance RF varactor diodes.
	2. IoT Growth: Compact, energy-efficient RF components.
	3. Automotive Advancements: Demand for ADAS and connected car technologies.

Varactor diodes are shaping the future of communication systems. Their flexibility and efficiency make them key for high-frequency tuning and signal processing.

Practical Considerations for Using Varactor Diodes

Picking the Right Varactor Diode

Voltage and Capacitance Details

When picking a varactor diode, check its voltage and capacitance limits. These details show how well it will work in your circuit. First, find the highest reverse voltage it can handle. Going over this limit might harm the diode or shorten its life. Next, check the capacitance range. This shows how much the diode's capacitance changes with voltage. A bigger range gives more options for tuning.

For instance, if you're making a radio tuner, pick a diode with a capacitance range that fits the frequency band you need. Always match the diode's details to your circuit's needs for the best results.

Matching Frequency Range

The frequency range is also very important. Varactor diodes are often used in high-frequency circuits like RF systems. Choose a diode that works well in your needed frequency range. Some diodes are made for specific ranges, like VHF or UHF bands. Using the wrong diode can cause weak performance or signal problems.

Tip: Look at the manufacturer's datasheet to learn about the diode's frequency range. This helps avoid mismatched parts.

Replacing a Varactor Diode

Checking Circuit Fit

When swapping a varactor diode, make sure the new one fits your circuit. Compare the voltage and capacitance ratings of the old and new diodes. They should be close to keep the circuit working right. Also, check the diode's size and shape. A mismatch can make it hard to install or mess up the circuit layout.

If you're unsure, check the circuit's diagram or ask the diode maker for help. This can save time and prevent mistakes.

Testing and Adjusting

After putting in the new diode, test the circuit to see if it works. Use a multimeter to measure the reverse voltage and ensure it's within safe limits. Then, check the circuit's output to confirm the frequency or signal quality is correct.

You might need to adjust the circuit. Change the bias voltage to get the right capacitance. This ensures the diode works well as a variable capacitor.

Fixing Common Problems

Even with care, problems can happen with varactor diodes. One issue is changing capacitance. This might be caused by voltage changes or a bad diode. To fix it, use a voltage regulator to steady the bias voltage. If it still doesn't work, test the diode with a multimeter to see if it's damaged.

Another problem is poor frequency performance. This happens if the diode doesn't match the circuit's frequency range. Switching to a better-suited diode can solve this. Regular checks and tests can help find and fix these problems early.

Advantages and Limitations of Varactor Diodes

Benefits of Using Varactor Diodes

Compact Design and Efficiency

Varactor diodes are small and work well in modern circuits. They change capacitance with reverse voltage, making them great for tuning. Unlike regular parts, they help create flexible circuits for special tasks. For example, they can adjust capacitance by up to 20 times, which is useful for filters and oscillators.

These diodes come in tiny packages like SC-79 and SOD-882. This makes them perfect for devices with limited space. They also have low resistance and leakage, improving performance in voltage-controlled oscillators (VCOs). This combination of size and efficiency makes them ideal for advanced communication systems.

Precision in Capacitance Control

Varactor diodes are excellent for controlling capacitance accurately. This is important for circuits that need precise frequency tuning. Their capacitance changes predictably with reverse voltage, allowing fine adjustments. For example, as reverse voltage increases, capacitance decreases, as shown below:

Specification	Value
Minimum Capacitance Ratio	2.2
Total Capacitance at 1 V	5.88 pF
Total Capacitance at 4 V	3.44 pF
Total Capacitance at 8 V	2.24 pF
Total Capacitance at 12 V	1.5 pF
Total Capacitance at 20 V	1.15 pF
Reverse Breakdown Voltage	20 V (Min)
Series Resistance (Max)	1.0 Ω
Tuning Range	18 V

This predictable behavior ensures reliable use in RF filters and phase-locked loops. The chart below shows how capacitance drops as voltage rises:

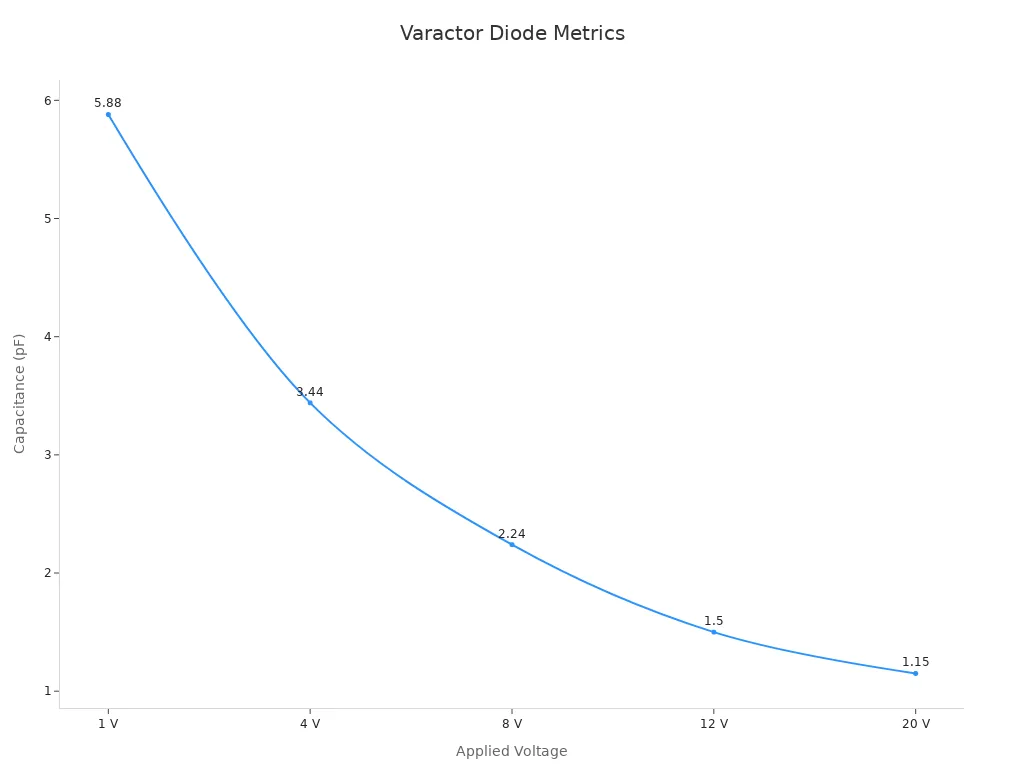

Line chart showing how capacitance decreases as voltage increases in varactor diodes

Tip: Varactor diodes are great for systems needing accurate frequency control, like 5G and GPS.

Limitations to Consider

Sensitivity to Voltage Variations

Varactor diodes react strongly to voltage changes, which can affect their performance. Even small voltage shifts can change capacitance a lot, causing instability. This means you need to carefully control the voltage for steady operation. Without proper regulation, the diode might not keep the right frequency or signal quality.

To fix this, use voltage regulators or circuits that stabilize the reverse voltage. This keeps the diode working within its limits and ensures reliable results.

Restricted Capacitance Range

Varactor diodes can adjust capacitance, but their range is limited. They only work within a specific range, which might not suit all needs. For example, a minimum capacitance ratio of 2.2 may not be enough for circuits needing big frequency changes.

To avoid problems, pick a diode that fits your project’s needs. Always check the capacitance range and tuning details before using it. If the range is too small, look for other parts or designs to meet your goals.

Future Trends in Varactor Diode Technology

Advances in Semiconductor Materials

The future of varactor diodes looks bright with better materials. Companies are testing new options to boost efficiency and performance. Silicon is still popular, but materials like gallium arsenide (GaAs) and silicon carbide (SiC) are gaining interest. These materials handle higher frequencies and lose less power, making them great for advanced uses.

The market for varactor diodes shows this shift. In 2021, it was worth $721.3 million. By 2030, it may grow past $1,924.47 million, with a yearly growth rate of 10.7%. This rise shows the need for better materials and their impact on these diodes' future.

Note: New materials will make varactor diodes more efficient and flexible.

Integration with Next-Generation Communication Systems

Varactor diodes are key for modern communication systems. The growth of 5G networks needs parts that handle fast data and precise signals. These diodes are vital in voltage-controlled oscillators (VCOs) and RF tools, which support 5G setups.

You’ll see varactor diodes in 5G towers, phones, and satellites. Their ability to change capacitance with voltage helps manage complex signals. As telecom grows, these diodes will become even more common in advanced systems.

Tip: Use varactor diodes for 5G or satellite projects needing accurate frequency control.

Miniaturization and Performance Enhancements

Smaller designs are pushing varactor diode innovation forward. Modern devices need tiny parts that still work well. Varactor diodes are shrinking while staying efficient. Packages like SC-79 and SOD-882 show how small they’ve become.

Performance is also improving. Engineers are lowering resistance and expanding tuning ranges. These upgrades make varactor diodes better for high-frequency tasks. As technology improves, expect smaller diodes with even better performance.

Callout: Tiny varactor diodes are perfect for portable gadgets and IoT devices needing space-saving solutions.

A varactor diode works like a capacitor controlled by voltage. It helps adjust frequencies in devices such as radios and TVs. This makes it very important for today’s communication systems. By changing capacitance with voltage, it becomes useful in tuners and RF filters.

When choosing or replacing a varactor diode, check its voltage limit. Also, look at its capacitance range and if it fits your frequency needs. These steps help the circuit work its best. As technology improves, varactor diodes will stay important for systems like 5G and IoT.

FAQ

1. What does a varactor diode do?

A varactor diode works like a capacitor controlled by voltage. It helps adjust frequencies in devices like radios, TVs, and communication systems. Its ability to change capacitance with voltage makes it great for tuning and signals.

2. How is a varactor diode different from a regular diode?

A regular diode lets current flow in one direction only. A varactor diode works in reverse bias and changes its capacitance with voltage. This makes it useful for tuning frequencies, unlike regular diodes.

3. Can varactor diodes work in high-frequency circuits?

Yes, they can. Varactor diodes are perfect for high-frequency circuits like RF filters and oscillators. They control capacitance precisely, making them great for systems like 5G and satellites.

4. What happens if you go over a varactor diode’s voltage limit?

Going over the reverse voltage limit can break the diode. Always check the maximum voltage rating in the datasheet. Keep the circuit within safe limits to avoid damage.

Tip: Use a voltage regulator to stop voltage spikes from harming the diode.

5. How do you check if a varactor diode works?

You can test it with a multimeter. Set the multimeter to measure resistance. In reverse bias, the diode should block current. If it allows current, the diode is broken and needs replacing.

6. Why is controlling capacitance important in communication systems?

Controlling capacitance helps fine-tune frequencies for clear signals. Systems like 5G and GPS need precise adjustments to keep communication stable and reliable.

7. Are varactor diodes good for small devices?

Yes, they are. Varactor diodes are small and fit well in portable devices like smartphones and IoT gadgets. Their size and efficiency save space while keeping performance high.

8. What materials are used to make varactor diodes?

Most varactor diodes are made of silicon. Some advanced ones use materials like gallium arsenide (GaAs) or silicon carbide (SiC). These materials improve performance for high-frequency and high-power uses.

Note: Check the datasheet to find out what material your diode uses.
