You need to know the difference between a single vs double pole breaker before you select a circuit breaker for your home. A single-pole circuit breaker usually handles 120 volts and 15-30 amps. A double-pole circuit breaker manages 240 volts and 20-60 amps or more. Choosing the right circuit breaker helps keep your home safe and prevents electrical problems. Using the wrong breaker can create fire risks or damage your equipment.

Key Takeaways

• Single-pole breakers supply 120 volts and handle 15-30 amps, ideal for lights and small appliances.

• Double-pole breakers supply 240 volts and handle 20-60 amps or more, used for large appliances like dryers and ovens.

• Always match the breaker’s voltage and amperage to your appliance and wire size to prevent fire risks.

• Turn off the main power and use a voltage tester before working on any breaker to stay safe.

• Label your breakers and panel to quickly identify circuits during emergencies or repairs.

• Never replace a single-pole breaker with a double-pole breaker or vice versa; each fits specific wiring setups.

• Watch for signs of overload like frequent tripping, flickering lights, or warm outlets and call a professional if needed.

• If unsure about installation or wiring, always hire a licensed electrician to protect your home and family.

What Are Circuit Breakers

Purpose

You use circuit breakers to protect your home and devices from electrical problems. These devices stop the flow of electricity when they sense trouble, like too much current or a short circuit. When you plug in too many things or a wire gets damaged, a circuit breaker steps in to prevent fires or damage. You can think of circuit breakers as safety switches that guard your electrical system.

Circuit breakers do more than just protect your home. They also help you control and manage the flow of electricity. If you need to work on a part of your electrical system, you can switch off the right circuit breaker to stay safe. This makes repairs and upgrades much easier and safer for you.

Tip: Always know which circuit breaker controls each part of your home. Labeling your breaker panel can save time and keep you safe during emergencies.

How They Work

A circuit breaker works by monitoring the flow of electricity through a circuit. When the current gets too high, the breaker trips and cuts off the power. This action stops overheating and reduces the risk of fire. Inside each circuit breaker, you find a switch and a sensing device. The sensing device reacts to heat or magnetic force caused by too much current. When this happens, the switch flips and opens the circuit.

You can reset most circuit breakers by flipping the switch back to the "on" position after fixing the problem. This makes them easy to use and reliable for everyday protection.

Engineers use many ways to measure how well circuit breakers perform under load. They look at things like speed, timing, gas content, and the current in the trip and close coils. They also check the waveforms of control circuit signals, gas pressure, and how fast the mechanism moves. These indicators show how the circuit breaker handles mechanical, insulation, and electrical stress. Experts use advanced models, like adaptive neural networks, to study these signals and grade the health of circuit breakers. This helps you keep your electrical system safe and working well.

• Key performance indicators for circuit breakers include:

  • Speed and timing of operation

  • Gas content and pressure

  • Trip and close coil current signals

  • Control circuit signal waveforms

  • Mechanism traveling time and speed

By tracking these features, you can spot problems early and plan repairs before a failure happens. This approach keeps your home safer and helps you avoid unexpected outages.

Single-Pole Breakers

Voltage and Amperage

When you look at single-pole breakers, you see that they are designed for standard household circuits. These breakers usually handle 120 volts and have amperage ratings between 15 and 30 amps. You can find the exact performance details in the table below:

This table shows you the typical voltage and amperage for a single-pole breaker. The voltage ratings and amperage ratings help you match the breaker to your circuit needs. You should always check these numbers before you install or replace a breaker.

Applications

You use single-pole breakers for many everyday tasks in your home. These breakers protect circuits that power lights, outlets, and small appliances. Here are some common uses:

• Lighting circuits in bedrooms, hallways, and living rooms

• Electrical outlets in most rooms of your house

• Small appliances that do not need high amperage, such as fans or table lamps

Single-pole circuit breakers work well for these jobs because they handle the right voltage and amperage for standard household needs. You will find that most rooms in your home rely on these breakers to keep things running safely.

Tip: If you want to add new outlets or lights, check your panel for open single-pole breaker slots. This helps you plan upgrades without overloading your system.

Wiring

When you install a single-pole breaker, you need to follow safe wiring practices. You protect one energized wire with this type of breaker. The wiring process uses clear steps and follows national standards to keep you safe:

1. Review the wiring diagram for your breaker model. Diagrams use standard symbols and codes from the National Electrical Code (NEC) and IEEE.

2. Identify the correct circuit and turn off the main power. Always use lockout/tagout (LOTO) procedures to prevent accidents.

3. Prepare the wires by stripping insulation to the correct length. Inspect each wire for damage before connecting.

4. Attach the wires to the correct terminals. Secure the live, neutral, and ground wires tightly.

5. Mount the breaker in the panel using the right hardware. Make sure the enclosure protects the breaker from dust and moisture.

6. Restore power and test the circuit with a voltage tester or multimeter. Confirm that the breaker works as expected.

7. Inspect all connections and compare them to the wiring diagram. Make sure your work meets local electrical codes.

8. Label the breaker and update your panel directory for future reference.

By following these steps, you make sure your single pole breaker is installed safely and works properly. Good wiring keeps your home safe and helps your circuit breakers last longer.

Safety

You need to pay close attention to safety when you work with a single-pole breaker. Electricity can cause serious injuries or even death if you do not follow the right steps. You should always turn off the main power before you touch any wires or breakers. Use a voltage tester to make sure the power is off. Never trust a breaker label alone. Sometimes, labels are wrong or missing.

Wear rubber-soled shoes and use insulated tools. These tools help protect you from electric shock. Keep your hands dry and stand on a dry surface. Water and electricity do not mix. If you see any water near your electrical panel, stop right away and call a professional.

Note: If you feel unsure about any step, you should call a licensed electrician. Safety comes first.

Check the breaker for signs of damage before you install or reset it. Look for cracks, burn marks, or loose parts. A damaged breaker can fail to trip during a problem. This failure can lead to overheating or fire. Replace any faulty breaker right away.

You should never use a single-pole breaker with a higher amperage rating than the wire can handle. For example, if your wire is rated for 15 amps, do not install a 20-amp breaker. This mistake can cause the wire to overheat and start a fire. Always match the breaker size to the wire size.

Here is a quick safety checklist for working with single-pole breakers:

• Turn off the main power before starting.

• Test all wires with a voltage tester.

• Wear safety gear like gloves and goggles.

• Use insulated tools.

• Check for water or moisture near the panel.

• Inspect the breaker for damage.

• Match the breaker size to the wire size.

• Label the breaker after installation.

You should also keep your electrical panel closed and locked if possible. This step keeps children and pets safe. Teach everyone in your home not to touch the panel without permission.

If your single-pole breaker trips often, do not just reset it each time. Frequent tripping means there is a problem, such as an overloaded circuit or a short. Find the cause before you turn the breaker back on. Ignoring this warning can lead to bigger safety risks.

Tip: Keep a flashlight near your electrical panel. Power outages can happen at night, and you will need to see clearly to work safely.

By following these safety tips, you protect yourself, your family, and your home. A single-pole breaker is a key part of your electrical system, but it only works well if you use it safely.

Double-Pole Breakers

Voltage and Amperage

You use double-pole breakers when you need to handle more power than a single-pole breaker can provide. These breakers supply a higher voltage, usually 240 volts. Most double-pole circuit breakers have amperage ratings from 20 to 60 amps, but some can go up to 200 amps for special uses. You often see double-pole breakers in homes with large appliances that need both higher voltage and more amperage.

Here is a table to help you understand the typical voltage and amperage for double-pole breakers:

You should always check the voltage and amperage before you install a breaker. This step helps you match the breaker to your appliance and wiring needs.

Tip: Double-pole breakers protect two energized wires at the same time. If one side trips, both sides shut off together for safety.

Applications

You need double-pole breakers for high-demand applications in your home. These breakers power large appliances that require more energy than standard outlets can provide. Some common uses include:

• Electric dryers

• Water heaters

• Central air conditioning units

• Electric ranges and ovens

• Well pumps

Double-pole circuit breakers make sure these appliances get the right voltage and amperage to run safely. You should never try to run these machines on a single-pole breaker. Doing so can damage the appliance or create a fire risk.

Note: Always check your appliance manual for the correct breaker size. Using the wrong breaker can void warranties and cause safety problems.

Wiring

When you install a double pole breaker, you connect it to two separate hot wires. Each wire carries 120 volts, but together they provide 240 volts across the appliance. The breaker fits into two slots in your electrical panel. This setup allows the breaker to control both wires at once.

Follow these steps for safe wiring:

1. Turn off the main power before you start.

2. Identify the two hot wires for your appliance.

3. Strip the insulation and check for damage.

4. Connect each hot wire to its own terminal on the double-pole breaker.

5. Secure the breaker in the panel, making sure it covers two slots.

6. Attach the ground and neutral wires to their correct bars.

7. Restore power and test the circuit with a voltage tester.

8. Label the breaker for easy identification.

Double-pole breakers use a shared trip mechanism. If one side detects a problem, the breaker shuts off both wires. This feature keeps you and your home safe from electrical hazards.

Safety Reminder: If you feel unsure about wiring a double-pole breaker, call a licensed electrician. Working with higher voltage can be dangerous.

Safety

You must take extra care when working with double-pole breakers. These breakers handle higher voltage and more current than single-pole types. Mistakes can cause serious injury or even death. Always put safety first before you start any electrical work.

Start by turning off the main power to your panel. Never trust that a breaker is off just because the switch is down. Use a voltage tester to check that both wires are not live. This step protects you from electric shock.

Wear the right safety gear. Put on rubber-soled shoes and use insulated gloves. Stand on a dry surface. Water and electricity do not mix. If you see any water near your panel, stop right away and call a professional.

Tip: Keep a flashlight and a phone nearby. If something goes wrong, you can see clearly and call for help fast.

Check your double-pole breaker for damage before you install or reset it. Look for cracks, burn marks, or loose parts. A damaged breaker may not trip when needed. This failure can lead to overheating or fire. Replace any faulty breaker right away.

You must match the breaker size to the wire size. For example, a 30-amp double-pole breaker needs wire rated for 30 amps. Using a breaker that is too large for the wire can cause the wire to overheat. This mistake is a common cause of electrical fires.

Follow these safety steps every time you work with a double-pole breaker:

1. Turn off the main power.

2. Test both wires with a voltage tester.

3. Wear insulated gloves and rubber-soled shoes.

4. Stand on a dry, non-metallic surface.

5. Inspect the breaker for damage.

6. Match the breaker size to the wire size.

7. Label the breaker after installation.

8. Keep the panel closed and locked.

Teach everyone in your home not to touch the electrical panel. Children and pets should stay away from this area. If your breaker trips often, do not just reset it. Frequent tripping means there is a problem, such as an overloaded circuit or a short. Find the cause before you turn the breaker back on.

Note: If you feel unsure about any step, call a licensed electrician. Working with double-pole breakers is not a safe DIY project for most people.

By following these safety tips, you protect yourself, your family, and your home. Double-pole breakers play a key role in your electrical system, but they only work well if you use them safely.

Single vs Double Pole Breaker

Voltage Differences

When you compare a single vs double pole breaker, you notice a big difference in the voltage each type provides. A single pole breaker supplies 120 volts, which is the standard voltage for most household outlets and lights. In contrast, a double pole breaker delivers 240 volts. This higher voltage is necessary for large appliances like electric dryers and ovens.

You can see the voltage differences clearly in the table below:

The wiring setup also changes with the breaker type. A single pole breaker uses one hot wire and one neutral wire. A double pole breaker uses two hot wires and one neutral wire. This setup allows you to power devices that need more energy. Always check the voltage needs of your equipment before choosing a breaker.

Tip: Using the wrong voltage can damage your appliances or create safety hazards. Always match the breaker to your device's voltage requirements.

Amperage Differences

The next important difference in the single vs double pole breaker comparison is amperage. Amperage measures how much electrical current flows through the circuit. Most single pole breakers handle between 15 and 30 amps. Double pole breakers can handle much more, often ranging from 20 to 60 amps, and sometimes even higher for special uses.

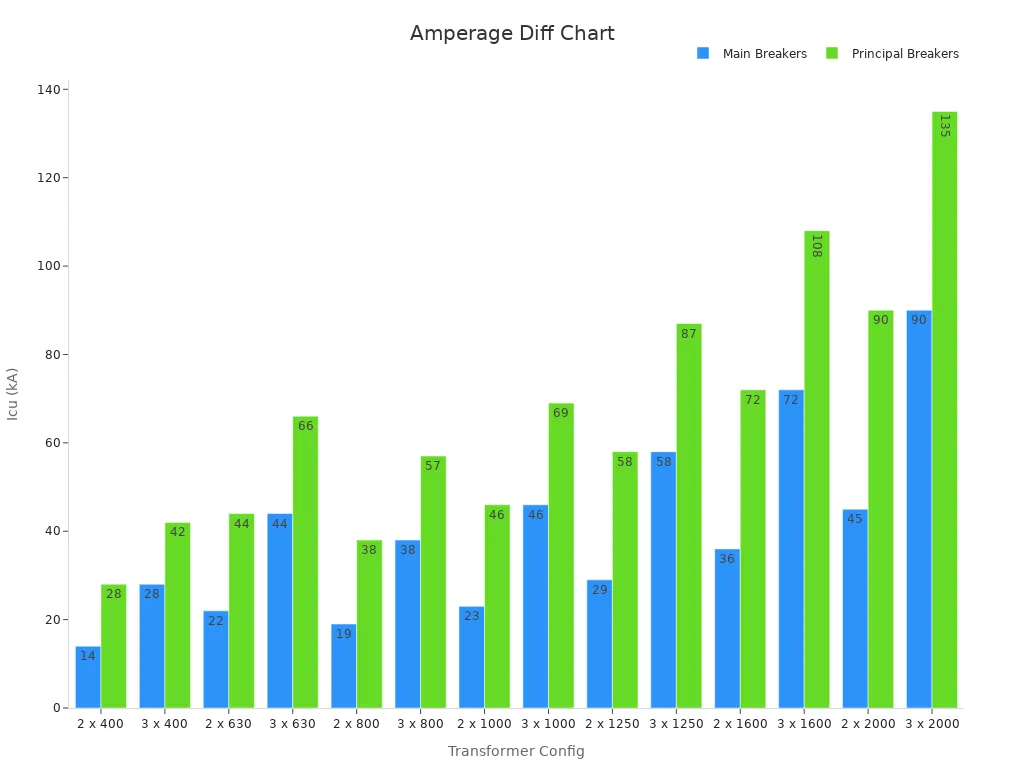

The chart below shows how amperage and breaking capacity can change with different breaker types and transformer setups:

You can see that as the system size increases, the required amperage and breaking capacity also rise. This is why you use double pole breakers for high-power equipment. Always check the amperage rating on your breaker and make sure it matches the wire size and the needs of your device.

Note: Never install a breaker with a higher amperage rating than your wiring can handle. This mistake can cause overheating and fire.

Application Differences

You need to know when to use each type of breaker. The single vs double pole breaker decision depends on what you want to power. Use a single pole breaker for standard circuits like lights, outlets, and small appliances. These circuits do not need much voltage or amperage.

Choose a double pole breaker for large appliances that need more power. Examples include electric water heaters, ovens, and central air conditioners. These devices require both higher voltage and higher amperage to run safely.

Here is a quick guide to help you decide:

• Use a single pole breaker for:

  • Bedroom and living room lights

  • Standard wall outlets

  • Small kitchen appliances

• Use a double pole breaker for:

  • Electric ranges and ovens

  • Clothes dryers

  • Water heaters

  • Central air conditioning units

🛠️ Always check the manufacturer's instructions for your appliance. The manual will tell you the correct breaker type and size.

Choosing the right breaker keeps your home safe and your devices working well. Understanding the voltage and amperage differences helps you make smart decisions for your electrical system.

Panel Space and Wiring

When you look at your electrical panel, you see rows of slots for circuit breakers. The type of breaker you choose affects how much space you use and how you wire your circuits. Understanding these differences helps you plan upgrades and avoid overcrowding your panel.

Panel Space

Single-pole breakers take up one slot in your panel. You can fit more single-pole breakers in a standard panel. This setup works well for homes with many small circuits, like lights and outlets.

Double-pole breakers need two slots because they connect to two separate bus bars. Each double-pole breaker uses twice the space of a single-pole breaker. If you have many large appliances, you may run out of panel space faster.

Here is a quick comparison:

Tip: Before adding new circuits, check your panel for open slots. You may need a panel upgrade if you run out of space.

Wiring Differences

Wiring for each breaker type also looks different. A single-pole breaker connects to one hot wire and one neutral wire. You use this setup for most basic circuits. The wiring is simple and easy to follow.

A double-pole breaker connects to two hot wires. Each wire comes from a different bus bar. Together, they provide 240 volts for heavy-duty appliances. You also connect a neutral and a ground wire, depending on the appliance. The wiring for double-pole breakers is more complex and needs careful attention.

Here is a summary of the wiring:

• Single-pole breaker wiring:

  • One hot (black or red) wire

  • One neutral (white) wire

  • One ground (bare or green) wire

• Double-pole breaker wiring:

  • Two hot (black and red) wires

  • One neutral (white) wire (for some appliances)

  • One ground (bare or green) wire

⚡ Always turn off the main power before working on wiring. Use a voltage tester to make sure the wires are not live.

Planning for the Future

When you compare single vs double pole breaker options, think about your future needs. If you plan to add more large appliances, you may need extra panel space for double-pole breakers. If you only need more outlets or lights, single-pole breakers will save space.

You should also consider wiring complexity. Double-pole breakers require more skill and attention to detail. If you feel unsure, call a licensed electrician for help.

Choosing the Right Breaker

Appliance Requirements

You need to match your breaker to the needs of your appliances. Each device in your home uses a different amount of power. To choose the right breaker, you must know how much electricity each appliance draws. Start by checking the label on your appliance. You will find the wattage and voltage listed there. If you cannot find the label, you can look up typical values online.

To figure out the right breaker size, follow these steps:

1. Estimate how many hours you use the appliance each day. You can guess or keep a log.

2. Find the wattage. Read the label, multiply the amperage by the voltage, or search online.

3. Calculate daily energy use: (Wattage × Hours Used Per Day) ÷ 1000 = Daily kWh.

4. Multiply daily kWh by the number of days you use the appliance each year to get annual energy use.

5. Multiply annual energy use by your utility rate to find the yearly cost.

These numbers help you understand the load your circuit breaker must handle. If you use several appliances on one circuit, add their wattages together. Make sure the total does not go over the breaker's rating. This keeps your home safe and prevents tripping.

⚡ Always check both the voltage and amperage before you pick a breaker for any appliance.

Safety and Code

You must follow safety rules and local electrical codes when you choose a breaker. Codes exist to protect you and your home from fire and shock. Never use a breaker with a higher rating than your wires can handle. For example, do not put a 30-amp breaker on a circuit with 14-gauge wire. This mistake can cause wires to overheat and start a fire.

Check your local building codes before you start any electrical work. Some areas have special rules for kitchens, bathrooms, or outdoor circuits. You may need to use ground fault circuit interrupters (GFCIs) or arc fault circuit interrupters (AFCIs) in certain rooms. These devices add extra protection.

🛑 If you are not sure about the code, ask your local building department or a licensed electrician.

When to Call a Pro

Some jobs are too risky to do yourself. If you feel unsure about wiring or breaker size, call a professional. Electricians know how to match the right circuit breaker to your appliances and wiring. They also understand local codes and safety rules.

Call a pro if you see any of these signs:

• You do not know the wire size or breaker rating.

• Your panel looks crowded or messy.

• You see burn marks or melted wires.

• Breakers trip often for no clear reason.

• You plan to add large appliances or remodel your home.

A licensed electrician can inspect your system and make safe upgrades. This step protects your family and your property.

Common Mistakes and Tips

Wrong Breaker Risks

You might think any breaker will work for your circuit, but using the wrong type or size can create serious hazards. If you install a breaker with a higher amperage than your wiring supports, the wires can overheat. This mistake often leads to melted insulation or even electrical fires. Choosing a breaker that is too small causes constant tripping and interrupts your daily activities. You should always match the breaker’s voltage and amperage rating to the wire size and the device it protects.

Some people try to fix a tripping breaker by replacing it with a larger one. This shortcut does not solve the real problem. Instead, it removes the safety feature that protects your home from overloads. You should never use a double-pole breaker for a single-pole circuit or vice versa. Each breaker type serves a specific purpose. Using the wrong one can damage your appliances and put your safety at risk.

⚠️ Always check the manufacturer’s instructions and local codes before installing or replacing a breaker.

Overload Signs

You need to watch for signs that your circuit is overloaded. These warning signs help you catch problems early and prevent bigger issues. Here are some common indicators:

• Breakers that trip often show the circuit cannot handle the current load.

• Lights that flicker or dim when you turn on appliances signal the circuit is under strain.

• Burning smells near outlets suggest wires or devices are overheating.

• Plugs or outlets that look scorched or discolored point to excessive heat.

• Buzzing sounds from outlets or switches mean abnormal current flow.

• Outlets that feel warm to the touch can signal too much electrical load.

• Using a clamp meter or load monitoring device lets you measure the current draw. This helps you see if the circuit is close to its amp rating.

If you notice any of these signs, you should stop using the circuit and call a professional. Ignoring these warnings can lead to equipment damage or fire.

🔍 Regularly check your outlets and breakers for these signs, especially during times of high usage.

DIY Safety

You may want to save money by doing electrical work yourself. While some tasks are simple, working with breakers requires caution. Always turn off the main power before you touch any wires or breakers. Use a voltage tester to make sure the circuit is not live. Wear insulated gloves and rubber-soled shoes for extra protection.

Never guess about wire sizes or breaker ratings. If you feel unsure, ask a licensed electrician for help. Avoid using makeshift tools or shortcuts. Proper tools and safe practices keep you and your home safe.

🛑 Safety should always come first. If you do not feel confident, call a professional. Your safety is worth more than saving a few dollars.

By following these tips, you reduce the risk of electrical accidents and keep your home running smoothly. Always respect electricity and use the right breaker for every job.

Single-pole breakers give you 120 volts and handle 15-30 amps. Double-pole breakers provide 240 volts and support 20-60 amps or more. Picking the right breaker keeps your home safe and meets code rules.

• Always match the breaker to your appliance and wire size.

• Check the voltage and amperage before you install.

If you feel unsure, ask a licensed electrician. Your safety comes first.

FAQ

What is the main difference between a single-pole and a double-pole breaker?

A single-pole breaker gives you 120 volts and protects one wire. A double-pole breaker gives you 240 volts and protects two wires. You use single-pole breakers for lights and outlets. You use double-pole breakers for large appliances.

Can I replace a single-pole breaker with a double-pole breaker?

No, you cannot swap them. Each breaker type fits a different circuit and wiring setup. Using the wrong breaker can cause safety problems or damage your equipment. Always match the breaker to your circuit’s needs.

How do I know which breaker my appliance needs?

Check the label on your appliance. It lists the voltage and amperage. If it says 120V, use a single-pole breaker. If it says 240V, use a double-pole breaker. You can also look in the user manual.

What happens if I use the wrong size breaker?

If you use a breaker that is too large, your wires can overheat and cause a fire. If you use one that is too small, it will trip often. Always match the breaker size to your wire and appliance.

Do I need an electrician to install a breaker?

You should call an electrician if you feel unsure or if you work with double-pole breakers. Working with electricity can be dangerous. Electricians know the codes and keep your home safe.

Why does my breaker keep tripping?

Your breaker trips to protect you from too much current. Common causes include overloaded circuits, short circuits, or faulty appliances. Unplug some devices and reset the breaker. If it keeps tripping, call a professional.

Can I add more breakers to my panel?

You can add more breakers if your panel has open slots and enough capacity. Always check your panel’s rating. If you run out of space, you may need a panel upgrade. Ask an electrician for advice.

What safety gear should I use when working with breakers?

Wear rubber-soled shoes, insulated gloves, and safety glasses. Always turn off the main power before you start. Use a voltage tester to check that wires are not live. Safety comes first every time.

See Also

Comparing Zener And Avalanche Breakdown Mechanisms Clearly Defined

A Complete Guide To Calculating Poles In Amplifier Circuits

How Step Recovery Diodes Work And Their Practical Applications

Beginner’s Guide To Understanding The 8 Pin Relay Diagram

Choosing Between LR44 And 357 Batteries Which Performs Best
