SanDisk iNAND eMMC Review for Reliable Embedded Storage
SanDisk iNAND eMMC gives strong and reliable storage. Many engineers trust SanDisk because it is very tough. iNAND can handle over 10,000 program and erase cycles. It works in temperatures from -40°C to 85°C. This storage keeps data safe with smart error correction and wear-leveling. SanDisk iNAND eMMC uses up to 20% less power than others. It also works well with big OEMs. Its automotive-grade storage meets hard AEC-Q100 rules. This makes it a great pick for rough places.
Key Takeaways
SanDisk iNAND eMMC gives strong and safe storage. It works well in hard places like cars and factories. It uses new 3D NAND and SmartSLC technology. This helps it run fast and last a long time. The storage comes in sizes from 32GB to 256GB. It fits many devices, from small IoT gadgets to big car systems. It has built-in security to keep data safe. It uses secure write protection and safe firmware updates. SanDisk iNAND eMMC moves data quickly. This helps devices start fast and run apps well. It works in very hot or cold weather, from -40°C to 85°C. This makes it good for tough places. The storage is easy to use with many platforms. SanDisk gives strong technical support. Engineers should pick the right model and size for their device. They should test it well to get the best results.
Overview
What Is It
SanDisk iNAND eMMC is small and works well in tight spaces. It puts NAND flash memory and a controller together in one package. This follows the eMMC standard. Engineers can use it in devices where space and strength are important. SanDisk iNAND eMMC uses 3D NAND technology with SmartSLC. This helps it run faster and last longer. The storage supports eMMC 5.1 HS400. This means it can move data quickly and handle tough jobs.
The table below shows the main parts and features of SanDisk iNAND eMMC:
Component / Feature | Description / Specification |
|---|---|
Flash Memory Technology | 3D NAND with SmartSLC architecture |
NAND Cell Type | SLC (Single-Level Cell) |
Interface | eMMC 5.1 HS400 |
Capacity Range | 32GB to 256GB |
Voltage Range | 2.7V to 3.6V |
Form Factor | Compact JEDEC-compliant (11.5 mm x 13 mm x 1 mm for 32GB model) |
Block Organization | Symmetrical block organization for optimized data management and wear-leveling |
Timing | Synchronous timing for precise data transfer |
Programmability | Yes, supports programmable features for customization |
Command Compatibility | Compatible with standard eMMC commands |
Security Features | Secure Write Protect, Encrypted Field Firmware Upgrade (FFU), increased RPMB partition size |
Performance Highlights | Sequential write speed up to 260MB/s; Random Read +135%, Random Write +275% improvements over previous gen |
Reliability & Endurance | 4th generation SmartSLC technology, 80% TBW improvement over prior generations |
Target Applications | Mobile devices, automotive infotainment, IoT devices, thin-and-light compute devices |
This design makes SanDisk iNAND eMMC a good pick for embedded flash storage. It has programmable features, secure write protection, and smart error correction. These things help keep data safe and make the storage last longer.
Target Applications
SanDisk iNAND eMMC works in many fields that need strong eMMC storage. The car industry uses it in smart and self-driving cars. Engineers use it for driver help systems, music and video, maps, and HD mapping. It also helps with car-to-car and car-to-road communication, digital dashboards, event recorders, and self-driving features.
Other fields use eMMC storage in phones, IoT devices, and light computers. These devices need to work fast and keep data safe. SanDisk iNAND eMMC does this with its tough build and by meeting strict rules like AEC-Q100. The storage works in very hot or cold places, from -40°C to 105°C, so it is good for hard jobs.
Note: Many engineers pick eMMC storage because it is fast, strong, and easy to use. SanDisk iNAND eMMC gives these benefits for many different devices.
Key Features
Capacities
SanDisk iNAND eMMC storage comes in many sizes. You can pick from 32GB, 64GB, 128GB, or 256GB. This helps engineers choose the right size for their device. Small IoT gadgets and big car systems can both use it. The 256GB size is the biggest you can get with eMMC. SanDisk lets designers pick the best fit for each job.
Feature/Aspect | Details |
|---|---|
Product Series | SanDisk iNAND 7550 series |
Storage Capacities | |
NAND Technology | 3D NAND with SmartSLC architecture |
Interface | eMMC 5.1 HS400 |
Compliance | JEDEC e.MMC 5.1 standard |
Application Suitability | Smartphones, tablets, automotive, IoT, embedded systems |
SanDisk iNAND eMMC storage gives sizes that are as good as other top brands. Its design helps save space on the circuit board. This makes it great for small devices.
Technologies
SanDisk uses new technology in its eMMC storage. The memory uses 3D NAND with SmartSLC. This makes it faster and last longer. SmartSLC lets the storage be used more times before wearing out. The eMMC 5.1 HS400 interface moves data quickly. Devices can write data at speeds up to 260MB/s. Reading and writing random data is also much better than before.
Some important technology features are:
Power-off protection keeps data safe if power goes out.
Wear leveling spreads data out to stop some parts from wearing out fast.
Flash management keeps the storage working well and reliable.
Symmetrical block organization helps handle data better.
These features help SanDisk iNAND eMMC storage work well in tough places. Using both 2D and 3D NAND flash memory gives speed and strength.
Security
Security is very important for these devices. SanDisk iNAND eMMC storage has features to keep data safe. Secure Write Protect stops people from changing important files. Encrypted Field Firmware Upgrade (FFU) lets you update the device safely. A bigger Replay Protected Memory Block (RPMB) partition keeps private data safer.
Note: SanDisk’s eMMC storage follows strict rules to protect data. These security tools help engineers make devices that keep user data safe, even in hard or risky places.
SanDisk’s focus on security, new technology, and many sizes makes its eMMC storage a good pick for embedded systems.

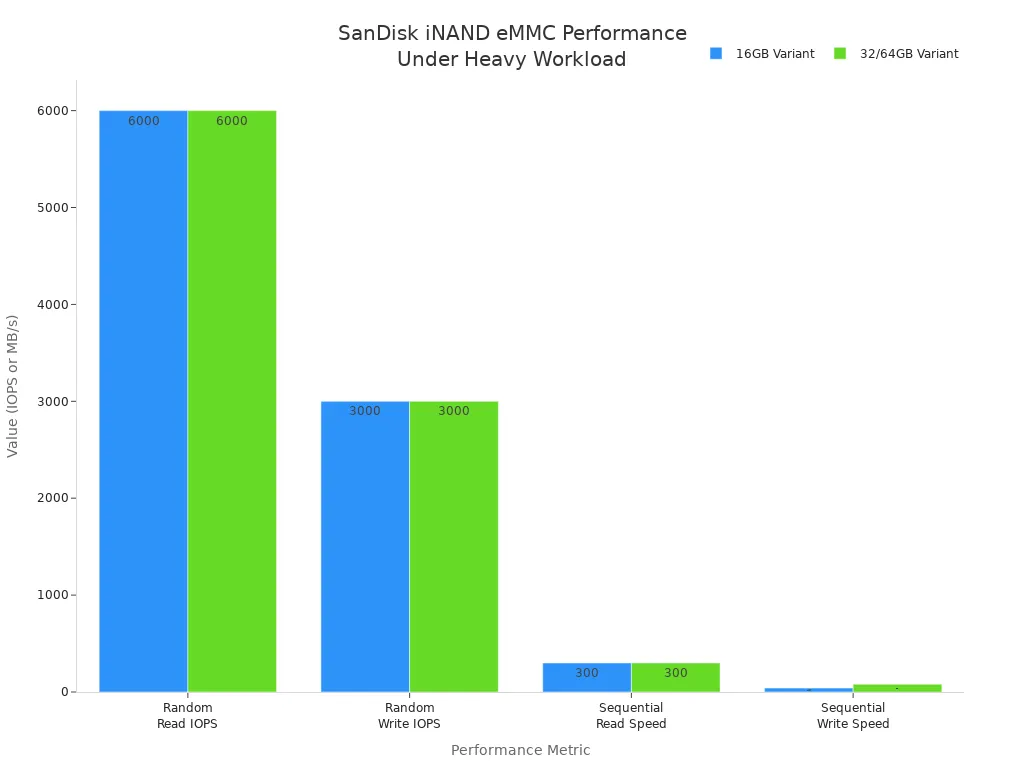

Performance
emmc Storage Speeds
Sequential
SanDisk iNAND 7132 gives fast speeds for emmc storage. The iNAND 7132 can read up to 280 MB/s and write up to 125 MB/s. These speeds help devices open big files quickly. The iNAND Extreme model, made for Bay Trail, reads up to 150 MB/s and writes up to 45 MB/s. The iNAND 7550 series can write as fast as 260 MB/s. These speeds show SanDisk emmc storage is as good as or better than many others.
iNAND eMMC Model | Sequential Read Speed | Sequential Write Speed |
|---|---|---|
iNAND 7132 | Up to 280 MB/s | Up to 125 MB/s |
iNAND Extreme (Bay Trail optimized) | Up to 150 MB/s | Up to 45 MB/s |
iNAND 7550 (SDINBDA4-32G) | N/A | Up to 260 MB/s |
Devices with iNAND 7132 start up fast and play videos smoothly. High speeds help with hard jobs in cars and factories.
Random
Random speed is important for everyday use. The iNAND 7132 can read and write many small files at once. The iNAND Extreme model can do up to 4000 random reads and 800 random writes each second. The iNAND 7550 series is even better, with 135% faster random reads and 275% faster random writes than older models. These upgrades make emmc storage react quickly when you use it.
iNAND eMMC Model | Random 4KB Read IOPS | Random 4KB Write IOPS |
|---|---|---|
iNAND Extreme (Bay Trail optimized) | Up to 4000 IOPS | Up to 800 IOPS |
iNAND 7550 (SDINBDA4-32G) | 135% improvement (random read) | 275% improvement (random write) |
Responsiveness
How fast a device feels depends on emmc storage. SanDisk iNAND 7132 stays quick even when almost full. Tests show iNAND Extreme can do 6,000 random reads and 3,000 random writes per second for both 16GB and 32/64GB sizes. It can read at 300 MB/s. It writes at 40 MB/s for 16GB and 80 MB/s for bigger sizes. This means devices keep working fast, even when busy.
The iNAND 7132 uses a page-mapped design and multi-die interleaving. These help keep emmc storage fast. Apps open quickly and switching between them is smooth. Devices with iNAND 7132 can handle lots of data and sensor updates without slowing down.
SanDisk emmc storage is known for being fast and steady. The iNAND 7132 keeps both big and small jobs quick, even as it fills up.
Reliability
Endurance
SanDisk iNAND eMMC is made to last a long time. It can handle thousands of times being written and erased. This makes it good for places where storage is used a lot. Factories and cars need storage that can take lots of writing and erasing. SanDisk made the iNAND series to last longer than regular eMMC storage.
The table below shows how endurance and reliability compare for top eMMC brands:
Feature/Aspect | SanDisk iNAND 7232 | Samsung eMMC 5.1 | Kingston eMMC | Micron eMMC |
|---|---|---|---|---|
Wear Leveling | Improved for long-term use | Standard | Basic | Standard |
Endurance | Enhanced for demanding apps | Good | Less endurance | Comparable |
NAND Management | Advanced | Standard | Basic | Standard |
Reliability Focus | High reliability | Reliable | Cost-effective | Reliable |
SanDisk iNAND eMMC uses special wear leveling and SmartSLC technology. These help spread out data so no part wears out too fast. Devices with this storage can work well for years, even if used a lot. You can help it last longer by not overloading it and watching how much data you use.
Data Integrity
SanDisk cares a lot about keeping data safe in its emmc storage. The iNAND 7132 eMMC has strong error correction. These systems find and fix mistakes before they hurt your data. The storage also has auto and manual read refresh to keep data right over time.
The iNAND eMMC can keep data safe for up to 10 years.
It uses smart tools to protect and fix important data.
Power-off protection keeps data safe if power goes out.
Data retention is better than JEDEC rules, so it lasts longer.
SanDisk’s car-grade eMMC storage meets tough safety and quality rules like IATF16949, AEC-Q100, and ISO26262. These show it is very reliable for important jobs.
Environmental Tolerance
SanDisk iNAND eMMC works well in hard places. The storage can run in very hot or cold weather, from -40°C to 85°C. This means it is good for cars, factories, and outdoor machines.
It has strong power supply protection. The device can check its health and scan itself when it gets hot. These things help stop problems and keep it working right.
SanDisk’s iNAND series meets JEDEC eMMC and industrial rules. The 7550 eMMC uses 4th generation SmartSLC and works with many voltages. These choices make it great for tough jobs in cars, IoT, and factories.
Works in wide temperatures: -40°C to 85°C
Strong power management for steady work
Made for car electronics and factory systems
Devices with SanDisk iNAND eMMC can work in hard places without losing data or slowing down. This makes it a good pick for engineers who need strong storage for tough jobs.
Integration
Compatibility
SanDisk made its emmc storage easy to use in many devices. Engineers can put SanDisk iNAND emmc in phones, tablets, wearables, car systems, and IoT gadgets. The storage follows the JEDEC eMMC standard, so it works with most platforms. SanDisk works with chipset makers and OEMs to make sure everything fits together well. This teamwork helps stop problems and makes building devices faster.
Some platforms have had certain compatibility problems. The table below shows common issues and how to fix them:
Compatibility Issue | Description | Impact | Workaround / Notes |
|---|---|---|---|
Lack of HAL support for extended CSD register | HAL only reads CSD, not EXTCSD, leading to incomplete device info | Incorrect capacity reporting, limited memory | Manually read EXTCSD register for correct device info |
Incorrect addressing mode assumptions | HAL assumes byte addressing for devices <2GB, but eMMC uses block addressing | Capacity read as 1GB instead of actual size | Use block addressing mode; stop HAL converting to byte addressing |
RX FIFO overrun errors during data reads | Slow or unoptimized code reading FIFO causes RX overrun errors | Data transfer failures, especially in debug builds | Optimize FIFO read loops; build with optimizations (-O3) |
Performance and data transfer issues | Debug builds with gcc are slower, causing timing issues | RX overruns and data read errors | Use optimized builds or adjust code to speed up FIFO reads |
Platform-specific reports | Issues documented on STM32F4, STM32F7, STM32L4 platforms | Compatibility challenges with these MCUs | Workarounds tested and confirmed on these platforms |
Tip: Engineers should always check platform guides and test emmc storage to avoid these problems.
Platforms
SanDisk iNAND emmc works with many platforms and operating systems. The storage runs in devices using Android and Windows. This means engineers can use emmc storage in lots of products, like phones, car screens, and factory IoT systems. SanDisk makes sure its emmc meets both home and work needs.
The hardware and software needed for emmc are simple. Devices just need an eMMC interface and JEDEC support. SanDisk gives guides and designs to help engineers connect emmc storage fast.
sandisk Support
SanDisk gives strong help to engineers using emmc storage. The company shares product briefs that explain features, speed, and how long it lasts. Documents talk about car rules like AEC-Q100 and special features for tough places.
Support includes:
Online help and tech support
Training like webinars and articles
Contact info for distributors such as Avnet Silica
Newsletters, podcasts, and a design hub for help
API requests and certifications for big projects
Note: SanDisk’s good support and guides help engineers fix problems fast and finish projects on time.
SanDisk works closely with OEMs and chipset makers to make sure emmc storage fits new designs. This teamwork and strong support make SanDisk iNAND emmc a smart pick for embedded storage.
Pros and Cons
Advantages
SanDisk iNAND eMMC gives many good things for embedded systems. Many engineers pick this storage because it helps devices work well and last longer. Here are its main strong points:
You can add it to products quickly, so companies sell faster.
It helps devices check data right where they are, making choices faster.
By handling more data on the device, it sends less over the network.
Fast data moves mean devices start up quickly and apps load fast.
It uses little power, so batteries last longer in mobile and embedded devices.
It is very tough and reliable, so it works well in hard places like factories and cars.
It works in both hot and cold weather, so it fits many jobs.
You can pick small or big storage sizes, so it fits many devices.
It works with lots of things like phones, tablets, wearables, cars, and IoT systems.
Because it is built-in, there is less chance of losing data than with removable storage.
Its small size makes it good for devices with not much space.
SanDisk iNAND eMMC is great for hard jobs like factory machines, medical tools, smart meters, and travel systems. Its strong speed and toughness help engineers make better devices.
Drawbacks
SanDisk iNAND eMMC has many good sides, but there are some downsides too:
The biggest storage size is 256GB, so it may not be enough for devices that need lots of space.
Some microcontrollers and other platforms may not work with it right away, so engineers might need more time to fix problems.
The eMMC standard is not as fast as newer storage types like UFS or NVMe.
It is hard to upgrade or change the storage because it is attached to the board.
Devices with eMMC can get slower as the storage gets full or older.
Engineers should check what their project needs and test eMMC storage in their own devices to stop problems before they happen.
Use Cases
Industry Adoption
Many industries use sandisk for storage in their products. The company works with big chipset makers and mobile OS teams. Some partners are Intel, Qualcomm, Texas Instruments, Freescale, Marvell, MediaTek, Microsoft, NVIDIA, and ST-Ericsson. These partnerships help sandisk iNAND eMMC fit many mobile devices.
The car industry uses sandisk a lot. Car makers put sandisk automotive-grade iNAND in connected cars and infotainment systems. It is also used in driver help systems. These products support things like e-cockpits, AI databases, and self-driving features. Western Digital owns sandisk and makes the iNAND EM132 eMMC for cars. This shows that many car companies use sandisk storage.
Factories also use sandisk iNAND eMMC in control systems and IoT devices. Its strong build and long life make it a good pick for factories, smart meters, and medical tools. Many phone and tablet makers trust sandisk for fast and safe storage.
Sandisk iNAND eMMC is trusted by many industries that need strong and fast storage.
Application Examples
Sandisk iNAND eMMC works well in tough places. The SDINBDA6-64G model has the AEC-Q100 certification. This means it can handle the hard conditions in cars. It shows sandisk storage can take heat, cold, and lots of use.
The SDINBDG4-32G-XI1 model is made for tough jobs too. It works from -40°C to +85°C and moves data fast. Its MLC setup helps it last longer, so it is good for factory controls, car electronics, planes, defense, and medical devices.
Feature/Specification | Details |
|---|---|
Operating Temperature Range | -40°C to +85°C |
Memory Capacity | 32GB |
Interface Type | eMMC 5.1 HS400 |
Sequential Read Speed | Up to 300 MB/s |
Sequential Write Speed | Up to 150 MB/s |
Configuration | MLC (Multi-Level Cell) |
Certifications | AEC-Q100 |
Application Areas | Industrial, automotive, aerospace, medical, IoT |
IoT devices often work outside or in factories. Sandisk iNAND eMMC keeps data safe and devices working, even in hard places. Medical and aerospace devices also use it because it is strong and reliable.
Devices with sandisk iNAND eMMC can work where other storage might not. This makes it a top pick for engineers who need storage they can count on.
Recommendation
Best Fit
SanDisk iNAND eMMC is great for devices that need to be strong and fast. The iNAND 7550 series uses new 3D NAND and SmartSLC technology. This helps it write data at speeds up to 260MB/s. It also reads and writes small files much faster than older models. Devices like car screens, fancy phones, and IoT gadgets work best with this storage. The 4th generation SmartSLC keeps data safe if power goes out and helps the storage last 80% longer. These things make sandisk emmc a smart pick for engineers who need tough and long-lasting storage.
The table below shows which iNAND emmc is good for each device:
iNAND eMMC Type | Target Embedded Systems | Key Performance & Reliability Features |
|---|---|---|
iNAND 7250 | High-end smartphones and tablets | High-speed data transfer, large storage capacity |
iNAND 7232 | Mid-range smartphones and tablets | Balanced performance and cost-efficiency |
iNAND 7220 | Entry-level devices | Low power consumption, sufficient storage for basic tasks |
iNAND 8521 | Automotive and industrial applications | Enhanced durability, reliability, extended temperature support |
Sandisk emmc is best for cars, factories, and IoT devices where speed and strength are important.
Guidance
Engineers should pick the right sandisk emmc for their project. The iNAND 8521 is best for cars and factories because it is extra tough and works in hot or cold places. Phones and tablets that need to open apps fast should use the iNAND 7250 or 7232. Simple devices can use the iNAND 7220 for basic storage and to save power.
Always check how much space and speed your device needs. Devices that use lots of data or work in hard places need storage with good error correction and power-off safety. Sandisk gives guides and help to make adding emmc easy. Testing the storage in real life helps make sure it works well.
Tip: Pick the emmc that fits your device’s job and data needs. This helps stop problems and keeps your device working well.
SanDisk iNAND eMMC is a good choice for strong and fast storage. Engineers like it because it keeps data safe and works well for a long time. It has special tools to fix errors and spread out use, so no part wears out too fast. Some of its best features are:
It can read data as fast as 300 MB/s.
It is very reliable for cars, medical tools, and IoT devices.
It saves power and does not take up much space.
Consideration | Importance |
|---|---|
Upgradeability | Hard to upgrade because it is soldered on |
Programming Mode Support | DDR mode helps it move data faster |
Needed to keep it working well for years |
Engineers should pick the right storage for their project. They can ask SanDisk or partners for help with hard jobs. Doing more research helps make sure the storage is the best choice for each device.
FAQ
What devices work best with SanDisk iNAND eMMC?
SanDisk iNAND eMMC works in many devices. It fits smartphones, tablets, car systems, IoT gadgets, and factory machines. Engineers pick it when they need storage that is small, quick, and dependable.
How does SanDisk iNAND eMMC handle power loss?
The storage has power-off protection built in. This keeps your data safe if the power goes out. It helps stop data from getting messed up or causing errors.
Can engineers upgrade or replace SanDisk iNAND eMMC?
No, you cannot upgrade or swap out this storage easily. The eMMC chip is attached right to the device’s board. You have to use the storage size that comes with the device.
What security features does SanDisk iNAND eMMC offer?
SanDisk iNAND eMMC has Secure Write Protect and Encrypted Field Firmware Upgrade (FFU). It also has a big RPMB partition. These things help keep important data safe and let you update safely.
Does SanDisk iNAND eMMC support harsh environments?
Yes. The storage works from -40°C to 85°C. It meets car and factory rules, so it is good for hard places.
How does SanDisk iNAND eMMC compare to UFS storage?
eMMC is fast and reliable for many devices. UFS is quicker and better for fancy products. SanDisk iNAND eMMC is great for most devices that do not need the very fastest speed.
What should engineers check before integrating SanDisk iNAND eMMC?
Engineers should check if the storage works with their platform. They need to pick the right size and think about where the device will be used. Testing the storage in the real device helps stop problems.
Where can engineers get technical support for SanDisk iNAND eMMC?
SanDisk gives help online and has guides and documents. Engineers can talk to sellers or go to the SanDisk website for help and info.
