Understanding the Advantages and Disadvantages of NAND and NOR Flash

·17 min read

When considering NAND flash vs NOR flash memory, understanding their differences is crucial. NAND flash stores more data and offers faster write speeds, while NOR flash excels in quick read times and allows for random access. These characteristics make each type suitable for different applications. For instance, NAND flash is ideal for data storage, whereas NOR flash is more effective for executing code.

Selecting the appropriate memory type impacts speed, cost, and reliability. By comparing NAND flash vs NOR flash, you can determine which option best meets your requirements.

Key Takeaways

NAND flash is great for saving lots of data cheaply. It works well in SSDs and USB drives.
NOR flash is good for quick reading and random access. It’s used in firmware and embedded systems.
Picking the right flash memory affects speed, cost, and reliability. Think about what you need.
NAND flash writes and erases data faster. This helps with tasks needing frequent updates.
NOR flash is better for storing code safely. It’s used in tough places like medical tools and cars.
NAND flash can store more data in smaller spaces than NOR flash.
NAND flash is cheaper for big storage, but NOR flash is better for speed and safety.
Both NAND and NOR flash are important today. They help devices like phones and data centers work.

Overview of Flash Memory

What is Flash Memory?

Flash memory is a storage type that keeps data without power. It uses special transistors to trap electrons and store data. This creates a voltage difference, helping it hold information securely. Over time, flash memory has improved with new types like SLC, MLC, TLC, and QLC. These types show how many bits each cell can hold. Higher levels store more data but may be less durable. Manufacturers also stack cells to fit more data in small spaces.

As storage grows, problems like lower durability and reliability appear. These happen due to overlapping voltages and limited use cycles. Still, flash memory is key to modern tech because it is fast and flexible.

Types of Flash Memory

NAND Flash

NAND flash is made for storing lots of data at low cost. It arranges data in grids, making writing and erasing faster. This is why it’s used in SSDs and USB drives. Many gadgets use NAND flash to store large amounts of data efficiently.

NOR Flash

NOR flash is great for quick reading and random access. It stores data so you can directly reach specific spots. This makes it perfect for firmware and embedded systems. Devices needing speed and reliability often use NOR flash.

Importance of Flash Memory in Modern Technology

Flash memory is very important in today’s tech world. It changed storage by being reliable and efficient. You’ll find it in phones, laptops, cars, and more. For example:

Phones use it for apps, systems, and user data.
Cars use it for maps and entertainment systems.
It replaced older magnetic storage, saving power and space.

Flash memory demand is growing with tech advances. In cloud computing, it speeds up data processing. PCIe and NVMe make data transfer faster for gaming and editing. Healthcare also uses flash for quick and safe storage.

Worldwide, flash memory use is rising. For example:

Region/Sector	Trend Description	Growth Rate
Asia-Pacific	Fast growth due to data centers and mobile devices.	Over 20% CAGR
Cloud Computing	Better flash speeds up data processing.	Big improvements
Sustainability Focus	Using eco-friendly materials and energy-saving methods.	Matches global goals

Flash memory is essential for modern devices. Whether it’s a phone, gaming system, or server, flash memory provides fast, reliable, and compact storage.

NOR Flash Memory

What is NOR Flash Memory?

NOR flash memory is a type of storage that keeps data even without power. It uses special transistors to store data, allowing quick and reliable access. Unlike NAND flash, NOR flash lets you read data directly from specific spots. This makes it great for tasks needing random access, like firmware or embedded systems.

NOR flash often includes features to improve how it works. For example, it supports setups like Quad SPI and Dual-Quad SPI to make data transfer faster. It also offers different solutions, such as octal, serial, and parallel options. These features make it useful for cars, factories, and networking devices. The table below shows some key features and benefits of NOR flash:

Feature	Description
Technology	Uses floating gate and MIRRORBIT™ technologies for reliability.
Interface	Supports Quad SPI and Dual-Quad SPI for faster data transfer.
Applications	Found in car systems, factory machines, and network routers.
Benefits	Saves space, uses less power, and works well in tough conditions.

Advantages of NOR Flash

Fast Read Speeds

NOR flash is very fast at reading data. This makes it perfect for starting up systems or running firmware quickly. Its speed helps devices work smoothly without delays.

Random Access Capabilities

NOR flash can access data in any order. Unlike NAND flash, which reads data in sequence, NOR flash retrieves specific data directly. This is helpful for tasks like running small code blocks in embedded systems.

Reliability for Code Storage

NOR flash is dependable for storing important code. Its strong design keeps data safe, even in tough environments. This makes it a top choice for cars, medical tools, and industrial machines where reliability matters.

Disadvantages of NOR Flash

Lower Storage Density

NOR flash holds less data compared to NAND flash. While NAND flash can store up to 16Gb, NOR flash usually holds 64Mb to 2Gb. This means you might need more NOR chips, which can cost more and take up space.

Higher Cost Per Bit

NOR flash costs more per bit than NAND flash. This makes it less affordable for storing large amounts of data. For example, NAND flash is often used in gadgets because it’s cheaper.

Slower Write and Erase Speeds

NOR flash writes and erases data slower than NAND flash. Writing 128KB of data to NOR flash takes about 300µS, and erasing it takes around 520ms. NAND flash does these tasks much faster, making it better for frequent updates.

The table below compares NOR and NAND flash performance:

Feature	NOR Flash	NAND Flash
Storage Density	64Mb to 2Gb	1Gb to 16Gb
Write Speed	Slower (300µS)	Faster (typically)
Erase Speed	~520ms for 128KB	3.5ms for 128KB
Cost per Bit	Higher	Lower

Even with these downsides, NOR flash is still useful. It’s best for tasks where speed, reliability, and random access matter more than storage size or cost.

NAND Flash Memory

What is NAND Flash Memory?

NAND flash memory is a storage type that keeps data without power. It works by moving electrons through a thin layer to store data. Special transistors, called floating gate transistors, hold the charge to represent information. To program a cell, voltage is applied to the control gate. Erasing data needs a higher voltage to reset the charge.

NAND flash is built for storing lots of data. It arranges data in a grid pattern, making writing and erasing faster. This design is perfect for SSDs, USB drives, and memory cards. Its ability to store large data at a low cost makes it important in modern technology.

Advantages of NAND Flash

High Storage Density

NAND flash can store a lot of data in small spaces. Manufacturers stack memory cells in layers using 3D NAND technology. This increases storage without needing more room. For example, SSDs now hold terabytes of data, great for video editing or gaming.

Cost-Effectiveness

NAND flash is affordable because of its high storage and efficient production. It costs less per bit than other flash types. This makes it popular for gadgets, cloud storage, and business use. Even with some challenges like slower write times as density grows, it’s still a budget-friendly choice for big data storage.

Faster Write and Erase Speeds

NAND flash writes and erases data quickly, which is useful for frequent updates. It handles data in blocks, improving speed and performance. This is helpful for tasks like AI, machine learning, and high-speed computing. Faster speeds also reduce delays, keeping systems running smoothly.

Disadvantages of NAND Flash

Slower Read Speeds

NAND flash reads data slower than NOR flash. It accesses data in sequence, so it must read whole blocks to find specific information. This can be a problem for tasks needing quick, direct access to data.

Limited Random Access Capabilities

NAND flash cannot access data randomly like NOR flash. It reads data in order, so you can’t jump to specific spots. This makes it less useful for things like firmware or systems needing random access.

Lower Endurance Compared to NOR Flash

NAND flash wears out faster than NOR flash. It can handle fewer write and erase cycles before breaking down. As storage gets denser, its lifespan shortens even more. This can make it less reliable for long-term use in business systems.

Comparative Analysis of NAND Flash vs NOR Flash

Speed

Read Speeds

NOR flash is faster at reading data than NAND flash. It lets you access data directly, one byte at a time. This makes it great for tasks needing quick and exact data access. It works well in systems like firmware and embedded devices. NAND flash, however, reads data in order, which slows random access. For example, NOR flash is better for fast booting or running code instantly.

Metric	NAND Flash	NOR Flash
Read Speed	Slower random access	Fast byte-level access
Access Granularity	Page (typically 4 KiB)	Byte-level access

Write and Erase Speeds

NAND flash is quicker at writing and erasing data. It handles data in blocks, making it faster for frequent updates. For instance, NAND flash erases a 128KB block in 3.5 milliseconds. NOR flash takes about 520 milliseconds for the same task. This makes NAND flash better for SSDs and fast computing. But NOR flash can write small data updates directly, which is useful for specific tasks.

Metric	NAND Flash	NOR Flash
Write Speed	Fast write and erase speeds	Slower write operations
Erase Granularity	Block (256 KiB typical)	Block (64 KiB typical)

Endurance and Reliability

Choosing between NAND and NOR flash depends on durability. NAND flash wears out faster because it stores more data. It supports fewer program/erase (P/E) cycles than NOR flash. For example, QLC NAND has fewer cycles, making it less durable. NOR flash lasts longer and keeps data safe in tough conditions. It’s ideal for cars and industrial machines.

P/E Cycles: NAND flash handles thousands of cycles, while NOR flash manages tens of thousands.
Data Retention: NOR flash holds data longer, even in extreme heat or cold.

Power Consumption

NAND flash uses less power for writing and erasing than NOR flash. This makes it better for devices with batteries. For example, NAND flash uses 10nJ per byte when writing, while NOR flash needs 1µJ per byte. Erasing data is also more efficient with NAND flash, using only 0.2nJ per byte compared to NOR flash’s 600nJ per byte. This shows NAND flash is better for saving energy during frequent updates.

Metric	NAND Flash	NOR Flash
Write Energy Consumption	10nJ/byte	1µJ/byte
Erase Energy Consumption	0.2nJ/byte	600nJ/byte

Tip: Pick NAND flash if you need energy savings and frequent updates.

Cost

When looking at NAND flash vs NOR flash, cost is important. NAND flash is cheaper because it stores more data and is made efficiently. Companies like Toshiba and Samsung use advanced methods, like 64-layer 3D NAND, to make storage bigger and costs lower. This makes NAND flash a favorite for gadgets and business storage.

NOR flash, however, costs more per bit. Its design focuses on speed and reliability, not storage size, which raises production costs. For example, NOR flash is used in cars and factories where performance matters more than price. Studies show the NOR flash market includes serial and parallel types, used in electronics and cars.

Manufacturer	Memory Type	Cost Details
Toshiba/SanDisk	64-layer 3D NAND	Uses advanced methods to lower costs and increase storage.
Samsung	64-layer 3D NAND	Designs memory cells to store more data and reduce chip sizes.
SK Hynix	72-layer 3D NAND	Shows how making memory is complex and affects cost per gigabyte.
Intel/Micron	64-layer 3D NAND	Explains how supply chains and production steps impact memory prices.

If you need cheap storage for lots of data, pick NAND flash. But for tasks needing speed and reliability, NOR flash is worth its higher price.

Storage Density

NAND flash is great for storing lots of data in small spaces. Companies stack memory cells using 3D NAND technology. This lets NAND flash hold terabytes of data in tiny chips, perfect for SSDs, USB drives, and memory cards. For example, one NAND flash chip can store up to 16Gb, much more than NOR flash.

NOR flash, on the other hand, holds less data. It usually stores 64Mb to 2Gb per chip. This happens because its design focuses on random access and reliability, not storage size. So, NOR flash isn’t ideal for big data storage but works well for firmware and embedded systems.

If you need to save a lot of data in a small space, NAND flash is the best choice. Its high storage capacity is essential for modern devices like smartphones and cloud systems.

Suitability for Different Use Cases

Choosing between NAND flash and NOR flash depends on what you need. NAND flash is best for storing large amounts of data at a low cost. It’s used in gadgets like smartphones, cameras, and memory cards. Its fast write and erase speeds make it great for video streaming, gaming, and business storage.

NOR flash is better for tasks needing quick reads and reliability. It’s found in cars, factory machines, and IoT devices. For example, NOR flash is ideal for storing firmware in systems where fast access to small code is needed.

NAND Flash Uses:
- Gadgets: phones, tablets, and USB drives.
- Business storage: SSDs and cloud systems.
- New tech: IoT devices and car systems.
NOR Flash Uses:
- Embedded systems: firmware and boot programs.
- Factory tools: machines and medical devices.
- Car systems: navigation and entertainment.

As technology grows, both NAND flash and NOR flash are in demand. NAND flash leads in big storage, while NOR flash is key for tasks needing speed and dependability.

Practical Uses of NAND Flash vs NOR Flash

NOR Flash Applications

Embedded Systems

NOR flash is used in systems needing speed and reliability. Examples include microcontrollers, factory tools, and IoT gadgets. It stores and runs code directly, making it great for real-time tasks. Its ability to access data randomly ensures smooth performance in precise environments.

Firmware Storage

NOR flash is often chosen for storing firmware. Devices like routers, printers, and smart gadgets depend on it for essential code. Its quick read speeds help firmware load fast during startup. This ensures devices work efficiently without delays. NOR flash also keeps data safe when power is off, making it a reliable storage option.

Medical Devices

Medical tools rely on NOR flash for accuracy and dependability. Devices like pacemakers, diagnostic machines, and monitors use it to function correctly. NOR flash works well even in tough conditions, making it suitable for hospitals and labs.

NAND Flash Applications

Consumer Electronics

NAND flash is widely used in electronics because it stores lots of data cheaply. Phones, tablets, and laptops use it for apps, photos, and videos. Its fast write and erase speeds are perfect for gaming and video recording. The table below shows its common uses:

Application Area	Description
Consumer Electronics	Used in phones, tablets, and laptops needing large storage.
Automotive	Needed for advanced car systems like infotainment and controls.
Industrial	Found in IoT devices, factory tools, and industrial computers.
SSDs	Replacing hard drives in devices for better performance.
Smartphones	Supports high-resolution cameras and advanced features with large storage.

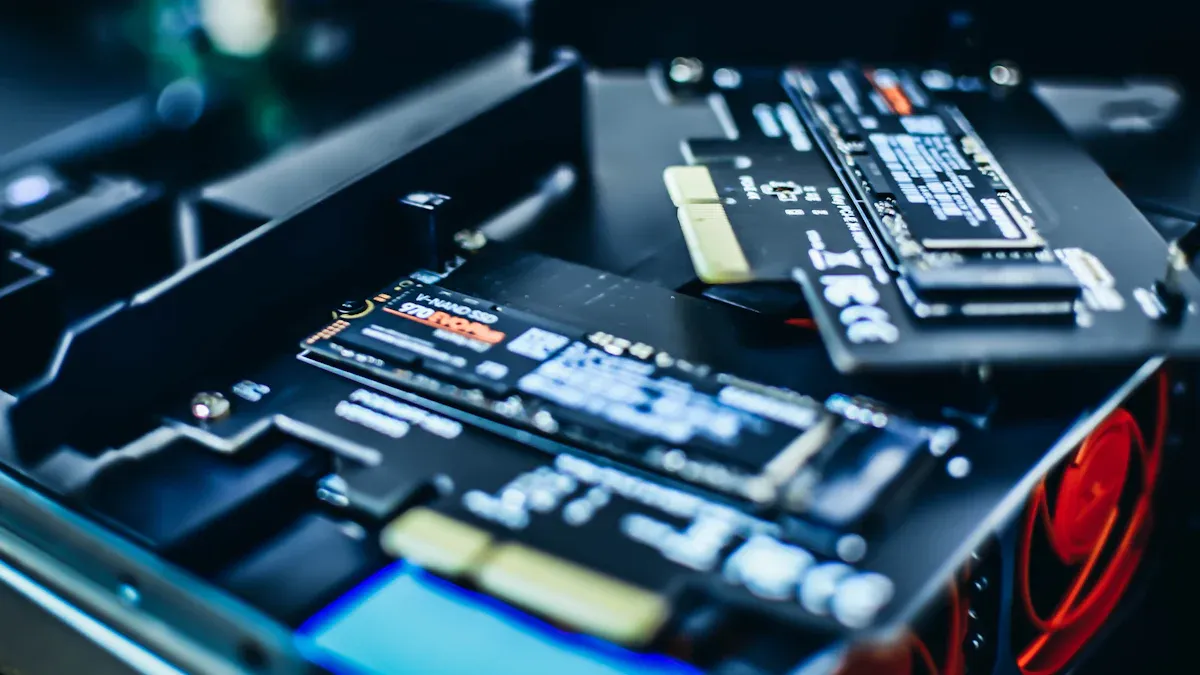

Solid-State Drives (SSDs)

SSDs depend on NAND flash for speed and efficiency. They replace old hard drives, offering faster startup and data transfer. Whether editing videos or running software, SSDs with NAND flash provide smooth performance.

Enterprise Data Storage

Businesses use NAND flash for storing large amounts of data. Data centers rely on it to handle heavy workloads and access information quickly. Its high capacity and durability make it a cost-effective choice for digital businesses.

New Trends in Flash Memory Use

AI and IoT need flash memory for fast, reliable data storage.
Brazil's electronics industry grew 8% in 2022, showing rising flash demand in new markets.
Germany's electronics sector grew 10% in 2021, highlighting flash's role in factories.
Data centers are growing due to cloud services, increasing demand for NAND flash.
In 2021, Germany's medical devices made up 25.8% of Europe's total, showing NOR flash's healthcare potential.

Flash memory keeps improving to meet modern tech needs. From phones to data centers, its uses keep expanding.

Deciding between NAND flash and NOR flash depends on what you need. NAND flash is great for storing lots of data, costs less, and writes fast. This makes it perfect for SSDs and gadgets like phones. NOR flash is better for quick reads, random access, and reliability. It works well for firmware and systems that need dependable performance.

Here’s a simple comparison to help you choose:

Criteria	NAND Flash	NOR Flash	EEPROM
Data Handling	Stores data in blocks, good for big files	Reads specific spots, great for frequent reads	Erases one byte at a time, good for small updates
Durability	Lasts 1,000–100,000 cycles based on type	More durable than NAND	Very durable for frequent changes
Speed	Writes and erases quickly	Reads faster than NAND	Slower reads, good for small data
Storage Size	Holds lots of data	Holds less data	Smaller storage, higher cost
Cost	Cheaper for big storage needs	Costs more per unit	Best for special uses
Best Use	Big data (SSDs, USB drives)	Firmware and code storage	Low-power devices

Tip: Think about your storage, speed, and durability needs before deciding.

FAQ

What is ECC in flash memory?

ECC stands for Error Correction Code. It finds and fixes mistakes in flash memory. This keeps data safe and reliable. Devices like SSDs and embedded systems use ECC to work well.

How does NAND flash achieve high storage density?

NAND flash stacks memory cells in layers using 3D technology. This design saves space and stores more data. It’s great for devices needing lots of storage and good performance.

Why is NOR flash better for random access?

NOR flash can quickly reach specific memory spots. This makes it faster at finding data. It’s perfect for firmware and systems needing quick and accurate performance.

What factors affect the endurance of NAND flash?

NAND flash endurance depends on how many times it can be erased and rewritten. Higher storage types, like QLC NAND, wear out faster. ECC helps by fixing errors and making it last longer.

Which flash memory type is more cost-effective?

NAND flash costs less because it stores more data and is made efficiently. It’s great for gadgets and business storage. NOR flash costs more but is better for tasks needing reliability.

Can ECC improve the performance of flash memory?

Yes, ECC makes flash memory work better by fixing errors. It keeps data accurate during reading and writing. This is important for SSDs and other high-speed storage systems.

Why is NAND flash preferred for SSDs?

NAND flash writes and erases data quickly. It stores a lot and costs less. These features make it ideal for SSDs used in gaming, video editing, and heavy data tasks.

How does NOR flash ensure reliability in harsh environments?

NOR flash is built to handle tough conditions like extreme heat or cold. It keeps data safe without power and uses ECC for extra reliability. This makes it great for medical tools and car systems.
