Miniature Circuit Breakers Definition and Their Role in Electrical Safety

A miniature circuit breaker is a switch that works by itself. It protects electrical circuits from getting damaged. If there is too much electricity or a short circuit, the mcb stops the electricity fast. This quick action helps stop fires. It also keeps people and equipment safe. The table below shows what a normal mcb can do. It can handle currents like 20 A. It can also stop very high fault currents up to 50 kA, based on its type. These numbers show how a miniature circuit breaker keeps electrical systems safe and reliable.

Key Takeaways

• Miniature circuit breakers protect circuits by stopping power fast. They do this during overloads or short circuits. This helps prevent fires and damage.

• MCBs can be reset after they trip. Fuses must be replaced instead. This makes MCBs easier and cheaper to use.

• There are different MCB types like B, C, and D. Each type is good for different jobs. Some are for homes and some for big factories. Picking the right type gives the best protection.

• MCBs use thermal and magnetic systems to find problems. They turn off power quickly without anyone helping.

• Testing and taking care of MCBs keeps them working well. This helps stop electrical dangers and keeps equipment safe.

• MCBs are used in homes, businesses, and factories. They help make places safer and follow electrical rules.

• It is important to pick and install the right MCB. The MCB rating must match the wires and loads. This stops false trips and gives good protection.

• MCBs help stop fires and keep equipment safe. They break dangerous currents before anything bad happens.

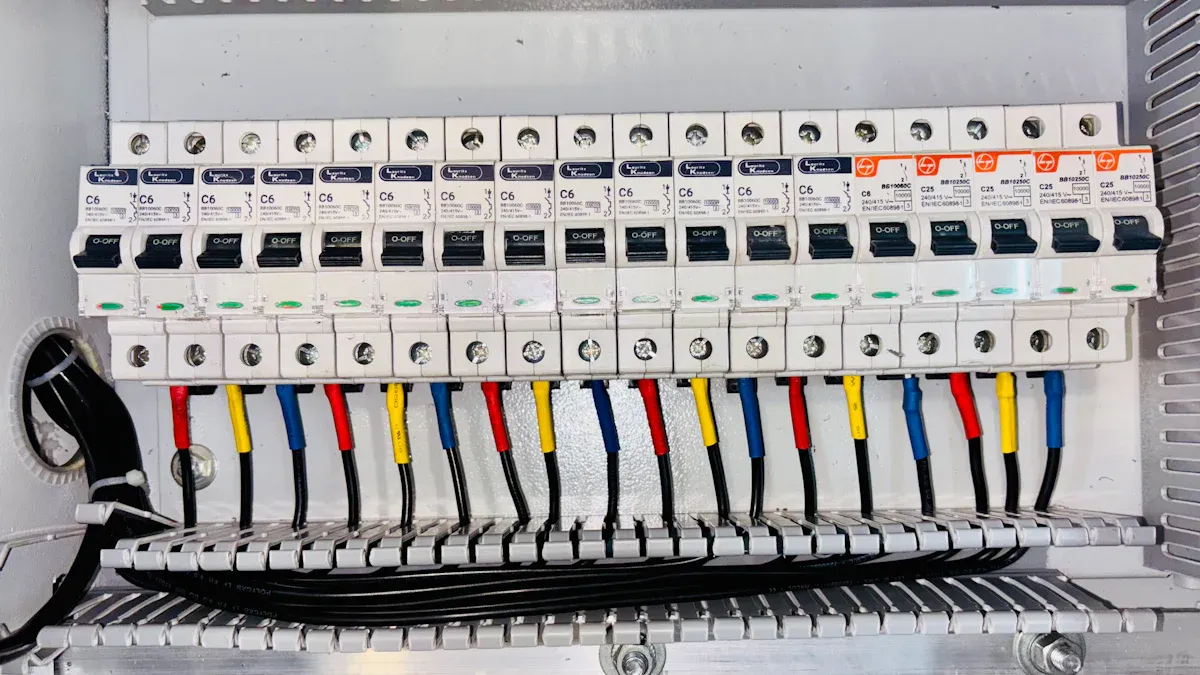

Miniature Circuit Breaker Basics

What Is an MCB

A miniature circuit breaker, or mcb, is a special switch. It turns off power by itself when there is a problem. It can sense too much current or a short circuit. When this happens, the mcb shuts off the circuit fast. This keeps wires and devices from getting hurt. The main job of an mcb is to keep people and equipment safe. It does this by stopping dangerous electricity. Rules like IEC 60898-1 and IEC 60947-2 explain what an mcb does. They say it disconnects circuits when there are faults. The mcb works with a thermomagnetic system. Inside, a bimetallic strip bends if it gets hot from too much current. This opens the contacts and stops the electricity. If there is a short circuit, a magnetic plunger trips the breaker even faster. This design gives quick and steady protection in homes, schools, and factories.

Note: An mcb is smaller than other circuit breakers. It is used for low-voltage systems. Bigger circuit breakers protect larger or more complex systems.

Main Components

Each miniature circuit breaker has several key parts. These parts work together to keep things safe:

• Main Contacts: These let electricity flow or stop it.

• Trip Unit: This has a bimetallic strip for overloads and a magnetic part for short circuits.

• Terminals: These join the mcb to the wires.

• Housing: This plastic case keeps all the parts safe.

• Trip Indicator: This shows if the mcb has turned off.

• Auxiliary Contacts: These help with extra control or signals.

• Trip Spring: This helps open the contacts quickly.

The mcb works because of these parts. The bimetallic strip heats up and bends when there is too much current. This lets a latch go and opens the contacts. The magnetic part acts fast if there is a sudden surge. It trips the breaker right away. All these parts make the mcb a safe and trusted device.

MCB vs Fuse

Some people wonder why an mcb is better than a fuse. Both protect circuits, but they work in different ways. A fuse melts if too much current goes through it. This stops the power, but you must replace the fuse each time. An mcb can be turned back on after it trips. This is a big reason why mcbs are better than fuses.

Here are some main reasons why mcbs are better than fuses:

• Reusability: You can turn an mcb back on. A fuse must be changed.

• Faster Response: An mcb acts fast for both overloads and short circuits.

• Easy Operation: Anyone can reset an mcb without tools.

• Clear Indication: The trip indicator shows when the mcb has worked.

• Better Safety: An mcb gives safer and more reliable protection.

Reports like the Miniature Circuit Breakers (MCB) Market report by DataIntelo show more people use mcbs now. They are used in homes, businesses, and factories. The market for miniature circuit breakers is growing. This is because they are safe, reliable, and easy to use. The advantages of mcb over fuse make them the best choice for modern electrical systems.

Tip: Always pick the right mcb rating for the wire and load. This gives the best safety and stops false trips.

The advantages of mcb over fuse are easy to see. An mcb gives better safety, is easier to fix, and works again after a problem. These things make the miniature circuit breaker the top choice for electrical safety today.

MCB Protection Mechanism

Overload Protection

Miniature circuit breakers have a special way to stop too much current. When a circuit has too much load, the MCB notices the extra current. Inside, there is a bimetallic strip that helps with this job. As more current flows, the strip gets hot and bends. This bending makes the MCB turn off the circuit. It stops electricity before wires or devices get hurt.

A 2022 study in Scientific Reports showed better bimetal materials help MCBs work well. The researchers used temperature checks and machine learning to see how the bimetal would act. Their results showed that good design helps the MCB trip at the right time. This makes the device more trustworthy.

Tests also show that this protection works well. For example, a case study on ScienceDirect tested MCBs with small generators. The tests showed MCBs can trip fast enough, even with low short circuit currents. This means the devices protect circuits in many situations.

The table below shows results from another test about overload:

MCBs use these features to find and fix faults quickly. They help stop overheating and lower the chance of fire or broken equipment. Following rules like the continuous load rule, which keeps current at 80% of the MCB rating, also helps stop overcurrent.

Tip: Check the load on each circuit often. Make sure it does not go over the MCB’s rated value. This easy step keeps the protection working well.

Short Circuit Protection

Short circuit protection is another important job for an MCB. A short circuit happens when electricity goes the wrong way. This can cause a big surge of current. The MCB uses a magnetic trip system for this. When a short circuit happens, the magnetic field inside gets very strong. This pulls a plunger that opens the contacts right away. It stops the current in just a few milliseconds.

Manufacturers test and check MCBs to make sure they can handle these events. The table below shows data from some certified MCB models:

These numbers show MCBs can stop short circuit currents up to 10kA. This means the device can safely stop even big fault currents. By stopping the flow so fast, the MCB keeps wires, devices, and people safe.

Note: Always pick an MCB with a breaking capacity that matches the short circuit current in your system.

Automatic Switching

Automatic switching is a main part of how an MCB works. The device does not need anyone to flip a switch when there is a problem. It senses overcurrent or short circuit and turns off the circuit by itself. This automatic action makes the MCB a safe way to stop electrical faults.

The working idea behind automatic switching uses both thermal and magnetic trip units. The thermal part reacts to slow rises in load. The magnetic part acts right away for short circuits. This two-part system lets the MCB handle different faults. After the device trips, you can reset it by moving the switch back to ON. This makes MCBs easier to use than fuses.

MCBs help keep systems safe by giving fast, automatic protection. They find and react to faults before damage happens. This is very important in homes, schools, and factories, where quick action can stop fires and equipment loss.

⚡ Alert: Never ignore a tripped MCB. Always check what caused the fault before you reset the device.

Key MCB Functions

Circuit Interruption

An mcb can stop electricity if there is a problem. It notices when the current gets too high. Then, it opens its contacts to stop the flow. This keeps wires, devices, and people safe. The mcb acts very fast, usually in less than a second. This quick action helps stop fires and damage. Many homes and businesses use mcbs for safety. Stopping the current makes the mcb important for modern safety.

⚡ Tip: Always find out why an mcb tripped before turning it on again. This helps stop more problems and keeps things safe.

Reusability

An mcb is special because you can use it again. A fuse must be replaced after it blows, but not an mcb. You just flip the switch back to ON after it trips. This saves both time and money. Electricians and homeowners like this feature a lot. The mcb has a clear sign that shows when it trips. This makes it easy to see and fix problems fast. Using the mcb again means less waste and fewer stops in daily life.

• Resetting an mcb is easy.

• You do not need any tools.

• The device can protect the circuit many times.

Sensitivity

Sensitivity is another important job for an mcb. The device must notice even small changes in current. This helps give the best protection. Makers test each mcb to make sure it works right. These tests include:

1. Looking at the mcb to check for damage.

2. Checking if the switch moves smoothly.

3. Testing with electricity to measure resistance.

4. Timing how fast the mcb trips, including:

   • Delay tests for overloads to see if it trips on time.

   • Instant tests with high current to check fast tripping.

5. Testing the insulation to see if it is strong.

6. Writing down all the results for later.

These steps make sure the mcb trips at the right time. It works for both overloads and short circuits. High sensitivity lets the mcb react fast and keep things safe.

🛡️ Note: Test and check your mcb often. This keeps it sensitive and reliable.

Types of MCBs

Miniature circuit breakers have different types for different jobs. Each type is best for certain places. The main types are Type B, Type C, and Type D. These types help protect homes, businesses, and factories. Knowing the differences helps people pick the right one.

Type B

Type B MCBs trip if the current is three to five times higher than normal. These work well where the electric load does not change much. Most houses use Type B MCBs. They protect things like lights, fans, and small appliances. Type B MCBs act fast if there is a short circuit or overload. This quick action helps stop fires and keeps people safe.

Key features of Type B MCBs:

• Trips at 3 to 5 times the rated current

• Good for homes and small shops

• Stops short circuits and overloads

Tip: Electricians often use Type B for bedrooms and living rooms.

Type C

Type C MCBs trip if the current is five to ten times higher than normal. These are good for places with bigger starting currents. Shops, small factories, and offices use Type C MCBs a lot. Machines like air conditioners and pumps can make a quick surge when they start. Type C MCBs can handle these surges without tripping too soon. They still protect against real problems.

Main uses for Type C MCBs:

• Trips at 5 to 10 times the rated current

• Good for circuits with motors or big appliances

• Used in shops and small factories

A table below shows the main differences:

Type D

Type D MCBs trip at ten to twenty times the normal current. These are best for places with very strong starting currents. Big machines, transformers, and large motors need Type D MCBs. These do not trip during normal surges from big equipment. They only trip if there is a real problem. This makes them important for factories and workshops.

When to use Type D MCBs:

• Trips at 10 to 20 times the rated current

• Best for big machines in factories

• Stops strong surges and faults

⚡ Note: Always match the MCB type to the equipment and wires. Picking the right one keeps everything safe and working well.

People should learn about the types before choosing. Each type gives a different kind of protection. The right choice depends on the load and the place. Using the correct type helps stop damage and keeps everyone safe.

Other Types

There are more miniature circuit breakers besides Type B, Type C, and Type D. These special types help protect different electrical systems. Each one has its own features for certain jobs.

Some less common types of mcbs are:

• Type K MCBs: These trip when the current is 8 to 12 times higher than normal. Type K is good for motors that need a lot of power to start. Many small factories and workshops use this type for their machines.

• Type Z MCBs: Type Z trips very fast. It works at 2 to 3 times the rated current. This type protects sensitive things like electronics and control circuits. Type Z helps keep computers and medical tools safe.

• Type S MCBs: Type S means "selective." These breakers wait a short time before tripping. This lets smaller breakers trip first if there is a problem. Type S keeps the main power on while only the bad part turns off.

• Type AC and Type A MCBs: These types protect against AC and sometimes DC faults. Type AC is for normal AC loads. Type A can find both AC and pulsed DC faults. Many new homes and offices use these for extra safety.

The table below compares these other types:

Note: Electricians pick the right type for the equipment and the risk of faults. Using the right breaker helps stop damage and keeps people safe.

Some places need special protection. For example, hospitals use Type Z for medical tools. Factories with big machines use Type K. Large buildings may use Type S for better control during faults. These other types of mcbs give more choices for safety in different places.

People should always check what their system needs before picking a breaker. The many types of mcbs help match protection to the equipment. This careful choice helps stop false trips and keeps everything working well.

MCB Applications

Residential Use

Miniature circuit breakers are very important in homes. They keep wires safe from too much current or short circuits. Families trust MCBs to protect lights, fans, and appliances. More people are building new homes and using smart devices. This means we need good circuit protection. MCBs help stop fires and damage. They are needed for safe living today.

A good MCB system can stop dangerous currents fast. This keeps your home safe from harm. Builders and electricians like MCBs because they are easy to use. Many new homes have MCBs because of government programs. In India, the government helps put MCBs in new houses. This shows that MCBs are now a normal part of safe homes.

🏠 Tip: Make sure your MCB rating matches your wires and devices. This gives you the best safety.

Commercial Use

Commercial buildings need strong electrical safety. Offices, stores, and hospitals use MCBs for lights and equipment. These places have many electrical needs. MCBs help keep power safe and stop problems.

Reports say commercial use is the biggest part of the MCB market. In 2024, it makes up 42% of the market. This number will keep growing. New safety rules and better systems make more people use MCBs. The U.S. Department of Energy says MCBs are important for safety.

Facility managers pick MCBs because they work well and are easy to reset. This helps businesses run without long stops and keeps equipment safe.

Industrial Use

Factories and warehouses need even stronger protection. They use MCBs for big machines and control panels. These places have high currents and many surges. MCBs made for industry can handle these hard jobs.

The market for industrial MCBs is getting bigger. By 2034, it may reach USD 3.4 billion. More machines and automation mean more need for protection. Programs like "Made in China 2025" help factories get better MCBs.

Industrial MCBs must follow strict rules. They keep workers, machines, and buildings safe from faults. Many factories use MCBs with renewable energy, showing they work in many ways.

⚙️ Note: Check and maintain industrial MCBs often. This keeps them working well.

MCB Safety Role

Fire Prevention

Miniature circuit breakers help stop fires from starting. If a short circuit happens, the MCB acts very quickly. It turns off the power before wires get too hot. Hot wires can cause fires in walls or near things like couches. The fast work of the MCB keeps homes and buildings safe. Many fire experts say using MCBs lowers the chance of electrical fires. People trust MCBs because they always work when there is trouble.

🔥 Tip: Check your MCBs often to make sure they trip when needed. This helps protect your home from fire.

Equipment Protection

MCBs also keep important equipment safe. If a device uses too much current, the MCB notices the overload. It shuts off the power to stop any damage. This helps computers, TVs, and kitchen tools last longer. In factories, MCBs protect machines from short circuits. They help stop expensive repairs and long breaks. Good protection means you spend less money fixing or replacing things.

The table below shows how MCBs protect equipment:

Standards Compliance

MCBs must follow strict safety rules. These rules make sure every breaker works the right way. Standards like IEC 60898-1 and IEC 60947-2 set the limits for how MCBs should trip. Builders and electricians use these rules in homes, offices, and factories. Following these rules means everyone is safer.

🛡️ Note: Always pick MCBs that passed safety tests. Certified products give the best protection.

MCBs help people follow safety codes in many places. This is important in hospitals, schools, and big buildings. When everyone uses certified MCBs, the risk of fire and equipment damage goes down. Good rules mean safer places to live and work.

MCB Selection and Maintenance

Choosing the Right MCB

Selecting the correct miniature circuit breaker keeps electrical systems safe and reliable. People should look at several important factors before making a choice. Experts recommend following these steps:

1. Check the system voltage, frequency, and type of load. The MCB’s ampere rating must match the expected current.

2. Make sure the MCB rating works with the wire size. This prevents wires from overheating or getting damaged. IEC standards suggest the MCB’s trip current should not be more than 1.45 times the wire’s safe current.

3. Pick the right trip curve type. Type B, C, D, K, and Z each protect different kinds of loads. For example, Type B works well for lights and outlets, while Type D fits heavy machines.

4. Decide how many poles the circuit needs. Single, double, triple, or four-pole MCBs fit different wiring setups. Multi-pole breakers should have a common trip feature.

5. Calculate the highest fault current the system might see. The MCB’s breaking capacity must be high enough to stop this current safely.

6. Always choose products that meet safety standards like IEC 60898-1, IEC 60947-2, or UL 489. Look for certifications such as CE, UL, or VDE.

7. Avoid mistakes like picking an MCB that is too large, ignoring wire size, or using uncertified products.

8. Replace any MCB that looks damaged or does not trip during a test. Most MCBs last 10 to 20 years if used correctly.

9. For complex systems or three-phase power, ask a professional electrician for help.

🛡️ Tip: Using the right MCB protects against overloads and short circuits, lowering the risk of fire.

Installation Tips

Proper installation helps MCBs work as designed. Safety comes first during every step. Experts suggest these best practices:

1. Turn off the main power and check with a voltage tester before starting.

2. Wear insulated gloves and safety goggles to protect against shocks.

3. Pick an MCB that matches the panel’s voltage, current, and phase.

4. Use the right tools, such as insulated screwdrivers and wire strippers.

5. Mount the MCB firmly on the DIN rail. Connect wires tightly to avoid loose connections.

6. Inspect all connections, replace the panel cover, and restore power safely.

7. Test each breaker to make sure it works.

8. Use lockout devices if needed to stop accidental switching during maintenance.

9. If unsure, call a licensed electrician.

⚡ Alert: Loose connections can cause overheating and fires. Always double-check every wire.

Maintenance

Regular maintenance keeps MCBs working well and extends their life. Good habits include:

• Test each MCB by switching it off and on. Make sure it trips when needed.

• Replace any breaker that looks damaged or fails to trip.

• Clean dust and dirt from the panel to prevent problems.

• Use lockout devices during repairs to keep circuits safe.

• Only use certified MCBs that meet standards like IEC 60898-1 or UL 489.

• Keep a record of tests and replacements for future checks.

• Read troubleshooting guides for help with common issues.

🧰 Note: Most MCBs last many years, but regular checks help catch problems early. Always follow safety rules and ask for help if needed.

Miniature circuit breakers are very important for electrical safety. They help stop fires and protect equipment from harm. Reports say more people are buying MCBs now. There is information about different types, uses, and where they are needed.

• Studies show that more people want to be safe at home and at work.
  Picking the right MCB and taking care of it keeps people and things safe. It is always smart to ask an expert for help with electricity.

FAQ

What does an MCB do in a home?

An MCB protects home circuits from too much current or short circuits. It turns off the power quickly if there is a problem. This helps prevent fires and keeps people safe.

How is an MCB different from a fuse?

An MCB can be reset after it trips. A fuse must be replaced after it blows. MCBs also show when they trip, making them easier to use and safer for most people.

Can someone install an MCB without an electrician?

A licensed electrician should install an MCB. This ensures the device works correctly and follows safety rules. Incorrect installation can cause electrical hazards.

How often should someone test or check an MCB?

People should test MCBs at least once a year. Regular checks help find problems early. If an MCB looks damaged or does not trip, replace it right away.

What causes an MCB to trip?

An MCB trips when it senses too much current or a short circuit. Overloaded circuits, faulty devices, or wiring problems can cause this. Always find the cause before resetting.

Are MCBs safe for use with all appliances?

MCBs work well with most home and office appliances. For sensitive electronics or large machines, choose the right MCB type and rating. This gives the best protection.

What do the letters B, C, and D mean on an MCB?

These letters show the trip curve type. Type B is for homes, Type C is for small businesses, and Type D is for heavy machines. Each type handles different current surges.

Can an MCB stop all electrical fires?

An MCB greatly lowers the risk of electrical fires. It cannot stop fires from other causes, like faulty appliances or poor wiring. Good wiring and regular checks add more safety.
