Understanding the Difference Between Magnetic Sensors and Hall Effect Sensors

You might wonder about the difference between a magnetic sensor vs Hall effect sensor. The key distinction is that a Hall effect sensor detects magnetic fields specifically through the Hall effect, while a magnetic sensor can operate using other techniques such as magnetoresistive or reed switch methods. Hall effect sensors are the most widely used because they are reliable, cost-effective, and easy to implement. Understanding the differences between a magnetic sensor vs Hall effect sensor is crucial, as choosing the right sensor impacts the performance, safety, and accuracy of your system, especially in critical applications like automotive or medical devices.

Key Takeaways

• Magnetic sensors find magnetic fields in different ways. They use the Hall effect, magnetoresistance, or reed switches. Hall effect sensors use the Hall effect to make a voltage. This voltage shows if a magnetic field is there. It also shows how strong it is and which way it goes. Each sensor type is good for different jobs. Reed switches are good for simple on and off jobs. Magnetoresistive sensors are good for careful measuring. Hall effect sensors are good for sensing that is steady and not too expensive. Hall effect sensors can be linear or digital. Linear ones measure how strong the field is. Digital ones tell if a field is there or not. You should pick a sensor that fits your needs. Think about how sensitive it is, where you will use it, and what kind of magnetic field you want to check. Hall effect sensors work well in hard places like cars and factories. They can handle dust, water, and shaking. Magnetic sensors are in many things we use every day. They are in alarms, guitars, phones, and big machines. Always think about where you put the sensor. Also think about how heat and other things might mess up the reading. This helps you get good and true results.

What Is a Magnetic Sensor?

Definition

A magnetic sensor is a tool that finds and measures magnetic fields. It turns the magnetic field into an electrical signal you can use. Magnetic sensors work in different ways, like using the Hall effect, magnetoresistance, or electromagnetic induction. These methods help the sensor sense if a magnetic field is there, how strong it is, or which way it points. Magnetic sensors have gotten smaller and better over time. Today, you can see them in things like phones, cars, and medical tools.

Basic Principle

To understand a magnetic sensor, look at how it works. All magnetic sensors use the link between electricity and magnetism. When a magnetic field touches the sensor, it causes a change. The sensor then makes this change into an electrical signal. For example, a hall effect sensor uses something called the Lorentz force. If you run a current through a semiconductor in a magnetic field, the charges move to one side. This movement creates a voltage. The voltage tells you how strong the magnetic field is and which way it goes.

Here is a table that shows how different types of magnetic sensors find a magnetic field:

Types

There are a few main types of magnetic sensors. Each type senses a magnetic field in its own way.

Hall Effect Sensor

A hall effect sensor is a very common magnetic sensor. It uses the Hall effect to measure the magnetic field. You can use it to find out if a magnetic field is there, how strong it is, or its direction. Hall effect sensors are small and reliable. They work in many things, like car speed sensors or robots that need to know position.

Magnetoresistive Sensor

A magnetoresistive sensor uses special materials that change resistance when a magnetic field is near. These sensors are good when you need to sense very small changes, like in hard drives or for measuring exact positions.

Reed Switch

A reed switch is a simple kind of magnetic sensor. It has two thin metal reeds inside a glass tube. When a magnetic field comes close, the reeds touch and close a circuit. Reed switches are often used in door alarms for security.

Magnetic Pickup

A magnetic pickup, or coil sensor, uses a coil of wire and a magnet. When the magnetic field near the coil changes, it makes a voltage. Magnetic pickups are used to measure speed or find moving metal things, like in guitar pickups or engine sensors.

Tip: When picking a magnetic sensor, think about what kind of magnetic field you want to measure and how sensitive the sensor needs to be. Each sensor type is best for certain jobs.

What Is a Hall Effect Sensor?

Definition

A hall effect sensor helps you find a magnetic field. It works by using the Hall effect. When you put electric current through a thin material in a magnetic field, the charges inside move. This force pushes the charges to one side. That makes a voltage across the material. This voltage is called the Hall voltage. The size of the voltage depends on the sensor’s shape, thickness, and material. It also depends on how much current you use and how strong the magnetic field is. You can use this voltage to tell if a magnetic field is there, how strong it is, or which way it goes.

How It Works

To see how a hall effect sensor works, look inside it. When current goes through the sensor and there is a magnetic field, the charges inside get pushed sideways. This push is from the Lorentz force. More charges build up on one side of the sensor. This makes a voltage across the sensor. The voltage stays the same while the current and magnetic field are there. You can measure this voltage to know if a magnetic field is present, how strong it is, or its direction.

Here is a table that shows how the hall effect sensor works:

Note: The hall effect sensor makes it easy to turn a magnetic field into a signal you can measure.

Types

There are different types of hall effect sensors. Each type is good for certain jobs.

Linear

A linear hall effect sensor gives a voltage that changes smoothly. The voltage goes up or down as the magnetic field changes. If the magnetic field gets stronger, the voltage changes in a straight line. You use linear sensors to measure how strong a magnetic field is. For example, you can use them to check the position of a moving part or the current in a wire.

Digital

A digital hall effect sensor works like a switch. It only gives two outputs: on or off. When the magnetic field is strong enough, the sensor turns on. If the field is not strong enough, it turns off. You use digital hall effect sensors to know if something is there or not. They are used in door sensors or speed detectors.

• Linear hall effect sensors help you measure how strong a magnetic field is.

• Digital hall effect sensors help you know if a magnetic field is there or not.

Tip: Pick a linear sensor if you need to measure strength. Pick a digital sensor if you just need to know if a magnetic field is present.

How They Work

Magnetic Sensor Operation

A magnetic sensor helps you find changes in a magnetic field. Each type works in its own way. All types sense if a magnetic field is there, how strong it is, or which way it points. When a magnetic field gets close, the sensor reacts. It makes an electrical signal. This signal tells you about the magnetic field nearby.

Different magnetic sensors use different science ideas. For example, an inductive sensor uses Faraday’s law. It finds changes in the magnetic field by measuring voltage in a coil. A magnetoresistive sensor changes its resistance when a magnetic field is near. This helps you measure how strong the field is. Some sensors, like the hall effect sensor, use the Hall effect to sense the field.

Here is a table that shows how different magnetic sensors work and where you might use them:

In real life, using a magnetic sensor can be tricky. The Earth’s magnetic field or other electronics can cause problems. Even solar storms can make it hard to sense right. Engineers fix this by using better parts and smart ways to process data. Some systems use many sensors together. This helps block out noise and focus on real changes. These systems can even learn to tell normal signals from signals made by bumps or shakes.

Tip: Always think about where you use a magnetic sensor. Strong interference can make it less accurate. Pick the right sensor and setup for your job.

Hall Effect Sensor Operation

A hall effect sensor is a special magnetic sensor. It uses the Hall effect to sense a magnetic field. When you run electric current through the sensor and put it in a magnetic field, charges move to one side. This makes a voltage across the sensor. This voltage is called the Hall voltage. The size of the voltage depends on how strong the magnetic field is.

Here are the steps for how a hall effect sensor works:

1. You connect the hall effect sensor to power and ground.

2. The output pin connects to the supply voltage with a pull-up resistor.

3. If there is no magnetic field, the output stays high.

4. If a magnetic field is there, the sensor’s transistor turns on. This pulls the output voltage down close to zero.

5. The change from high to low voltage shows a magnetic field is present.

6. You can use this output to control things, like turning on a relay or sending a signal to a computer.

7. The hall effect sensor keeps checking the magnetic field and updates the output as the field changes.

A hall effect sensor can give an analog signal to show how strong the field is. It can also give a digital signal to show if the field is there or not. This makes it useful for many jobs, like checking if a door is closed or measuring how fast something spins.

Note: The hall effect sensor is popular because it gives a simple and reliable way to turn a magnetic field into an electrical signal you can use.

Magnetic Sensor vs Hall Effect Sensor

Key Differences

When you look at magnetic sensors and hall effect sensors, you notice they work in different ways. Both help you sense magnetic fields, but they use different science ideas. Magnetic sensors can use things like induction, magnetoresistance, or the Hall effect. Hall effect sensors only use the Hall effect to sense magnetic fields.

Here is a table that shows the main differences between these sensors:

The best sensor depends on what you need it for. Induction sensors are good for finding changes in the magnetic field. Hall effect sensors give a voltage that matches the field’s strength and direction. This makes them great for simple and reliable sensing.

Note: If you need to sense tiny changes or work in tough places, you might want a different magnetic sensor. If you want something easy and direct, a hall effect sensor is often the best pick.

Sensitivity

Sensitivity means how well a sensor can find weak magnetic fields. When you compare magnetic sensors and hall effect sensors, you see that sensitivity can be very different depending on the type and model.

Some magnetic sensors, like induction sensors, are very sensitive. They can find small changes in the magnetic field. Hall effect sensors can have different sensitivity levels. For example, the ABLIC S-5611A hall sensor can be set from 6 to 180 V/T, with a normal value of 130 V/T. Other Hall sensors, like ones made from InAs or GaAs, can reach up to 10.5 mV/kG at 100 mA control current. This means you can set a hall effect sensor for many jobs, from weak field sensing to strong field detection.

Here is a table that shows some sensitivity values:

When picking a sensor, think about how small a field you need to sense. Some sensors are better for weak fields, while others are better for strong fields. Also, remember that temperature and electromagnetic noise can change how sensitive your sensor is. For example:

• Hall effect sensors can pick up noise from power lines or motors. This can cause wrong signals or missing signals.

• Temperature changes can make readings less correct. You may need to use temperature compensation.

• Reed switches, another kind of magnetic sensor, can change sensitivity with temperature and are sensitive to shock or shaking.

Tip: Always test your sensor where you will use it. Good placement and shielding help stop noise and keep your readings right.

Output

The output tells you how a sensor shares information about the magnetic field. When you compare magnetic sensors and hall effect sensors, you will see different output types.

A hall effect sensor usually gives a voltage that changes with the magnetic field. For example, a Honeywell hall effect sensor gives about 3.125 mV for each gauss of magnetic field. If you use a strong magnet, you get a bigger voltage. This makes it easy to tell how strong the field is. Some hall effect sensors can also measure high voltages and currents, up to ±1,100 V and 80 ARMS, which is good for current sensing in power systems.

Other magnetic sensors, like induction sensors, give a voltage that matches how fast the magnetic field changes. This is good for sensing moving magnets or changing fields, but not for steady fields.

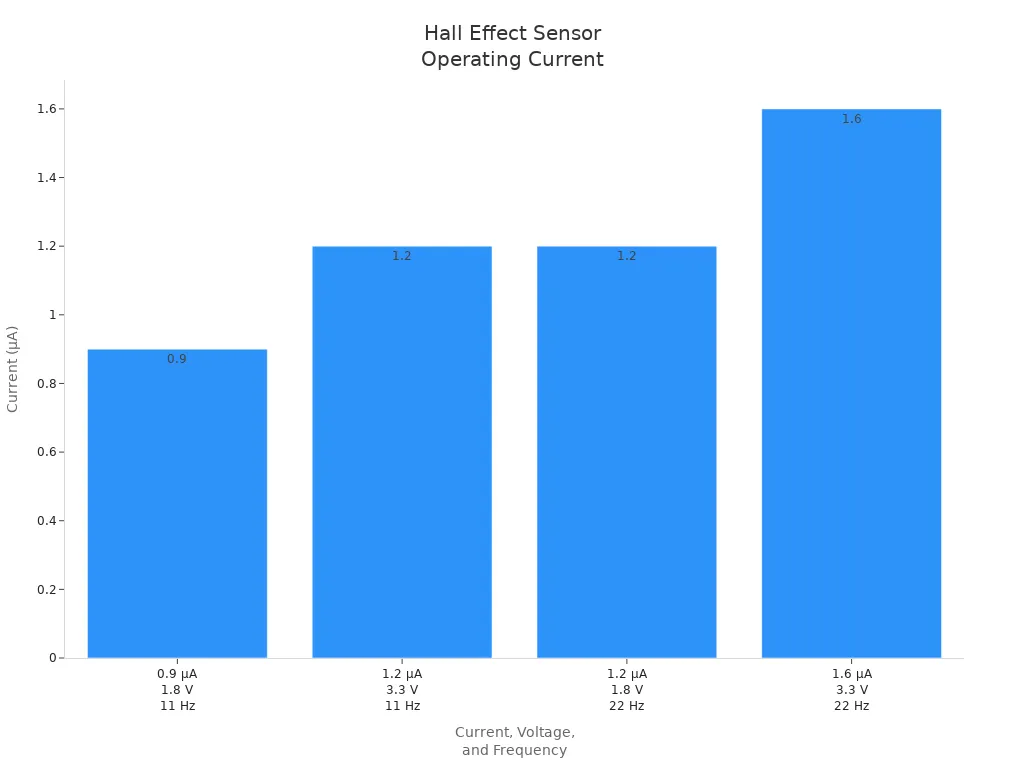

Power use is important too. Hall effect sensors, especially micropower types, use very little energy. Some models, like the MLX92216, use less than 2 microamps. This makes them great for battery-powered devices. You do not need extra parts, so your design stays simple and small.

Note: Hall effect sensors can run straight from a battery and last a long time. This is a big plus if you want to build small, portable devices.

When you choose between magnetic sensors and hall effect sensors, think about what kind of output you need. If you want to measure the strength or direction of a steady field, a hall effect sensor is a good choice. If you want to sense fast changes, an induction sensor or another magnetic sensor might work better. For sensing position, hall effect sensors are often used because they give a clear and direct signal.

Applications

The sensor you pick depends on what you want to measure. It also depends on where you will use the sensor. Each sensor type works best in different jobs and devices.

Where You Use Magnetic Sensors

Magnetic sensors are used in many areas. Here are some examples:

• Security systems: Reed switches are used in alarms for doors and windows. When the door opens, the magnetic field changes. This makes the alarm sound.

• Bicycles: Reed switches count how many times the wheel turns.

• Electric guitars: Magnetic pickups sense string movement and make sound.

• Industrial machines: Magnetoresistive sensors help track moving parts very well.

These sensors are good for simple and reliable jobs. You can use them to check if something is open or closed. They also help you know if something is moving.

Where You Use Hall Effect Sensors

Hall effect sensors are great for tough places. They help measure position, speed, or current. You can find them in these places:

• Cars: They help with ignition timing, fuel injection, and wheel speed. These sensors work even with dust, mud, or water.

• Electric motors: Hall effect sensors track where the motor shaft is. This helps control how fast or which way it turns.

• Mining and construction: Joysticks use these sensors to control machines.

• Power systems: You can measure electric current without touching the wire.

You often pick a hall effect sensor when you need it to work in hard conditions. They still give good results even when things get rough.

Comparing Applications: Magnetic Sensor vs Hall Effect Sensor

Here is a table to show where each sensor works best:

Tip: When you choose a sensor, think about where you will use it. Also think about what kind of signal you need. Hall effect sensors are better for places with dust, mud, or water. Magnetic sensors like reed switches are good for simple on/off jobs.

Both sensors are important. Your choice depends on what you want to sense. It also depends on how accurate you need to be and how tough the place is.

Applications

Magnetic Sensor Uses

Magnetic sensors are used in many things you see every day. They help control machines and keep devices safe. They also make your phone smarter. In cars, a magnetic sensor checks the throttle, steering wheel, and gears. This helps your car work well and keeps you safe. Electric motors use magnetic sensors to control speed and save energy.

Factories use magnetic sensors for many jobs. Robots use them to know where their arms are. Conveyor belts use them to track items as they move. These sensors help machines work with good accuracy. Magnetic sensors are also in linear and rotary encoders. These tools measure how far something moves or turns.

You find magnetic sensors in electronics too. Your smartphone uses one to know how you hold it. Gaming consoles use them for joystick and motion control. Fitness trackers use magnetic sensors to follow your movements. Some foldable phones use magnetic sensors to check the screen angle. This makes your device more flexible.

Here is a quick look at where you might find magnetic sensors:

Tip: Using a magnetic sensor gives you better control, more safety, and smarter devices.

Hall Effect Sensor Uses

A hall effect sensor is a good way to sense position and speed. You find these sensors in many new technologies. In cars, a hall effect sensor checks wheel speed for ABS and ESC. This helps your car stop safely and stay steady on the road. The sensor also helps control fuel injection and ignition timing. This makes your engine run better.

Factories use hall effect sensors to track machine speed. Robots use them to know where their parts are. These sensors work well in tough places because they resist dust and water.

Medical devices use hall effect sensors too. MRI machines and some implants need these sensors for correct readings. You also find them in patient monitors.

Consumer electronics use hall effect sensors as well. Your phone may use one to sense a smart cover or help with wireless charging. Gaming consoles and laptops use these sensors for better control and safety.

Here are some common uses for hall effect sensors:

• Automotive: Position and speed sensing for ABS, ESC, and ADAS systems

• Industrial Automation: Machine position and speed detection

• Medical Devices: MRI machines, implants, patient monitors

• Consumer Electronics: Smart covers, wireless charging, gaming controls

• Robotics: Detects movement and position of robot parts

• Aerospace: Flight control and navigation systems

Note: Hall effect sensors help make cars safer, machines smarter, and devices more reliable. You can count on them to work well, even in hard places.

Choosing the Right Sensor

Factors to Consider

When you choose between a magnetic sensor and a Hall effect sensor, you need to look at several important factors. Each factor can change how well the sensor works for your project.

• Magnet characteristics: The type, size, shape, and orientation of the magnet affect how strong the magnetic field is and how the sensor responds.

• Magnetic field direction: Hall effect sensors react to certain directions of the magnetic field. You must place the sensor so it lines up with the field you want to measure.

• Air gap distance: The space between the sensor and the magnet matters. A small change in this gap can make a big difference in the sensor’s output.

• Temperature drift: Heat can weaken the magnet and change the sensor’s accuracy. You should check if the sensor can handle temperature changes.

• Sensor type: Hall effect sensors come in linear, latch, or switch types. Each type works best for different jobs.

• Cost: Bigger or higher-grade magnets cost more. Custom shapes or special placements can help you get better results without spending too much.

• Mechanical placement: The way you mount the sensor and magnet can improve how well they work together.

• Environmental durability: Some sensors need to handle dust, water, or vibration. Look for sensors with strong packaging or high IP ratings if you use them in tough places.

Tip: Always match the sensor’s features to your project’s needs. Think about where you will use the sensor and what you want it to measure.

You have learned that magnetic sensors come in many types. Hall effect sensors use a special effect to find magnetic fields. Picking the right sensor gives you good results and keeps things working well.

• Choose a sensor that fits where you will use it. Hot, cold, wet, dusty, or shaky places can change how well it works and how long it lasts.

• Use sensors with strong covers or mounts that absorb shocks in tough places.

• Always check how sensitive the sensor is, how much it costs, and how often you must adjust it.
  Think about what you want to measure. The right sensor helps keep your project safe and working right.

FAQ

What is the main difference between a magnetic sensor and a Hall effect sensor?

A Hall effect sensor uses the Hall effect to detect magnetic fields. A magnetic sensor can use different methods, such as magnetoresistance or induction. All Hall effect sensors are magnetic sensors, but not all magnetic sensors use the Hall effect.

Can you use a Hall effect sensor to measure current?

Yes, you can. A Hall effect sensor measures the magnetic field around a wire. This field changes with the current. You can use the sensor to find out how much current flows through the wire.

Are Hall effect sensors affected by temperature?

Yes, temperature can change how a Hall effect sensor works. High or low temperatures may affect its accuracy. Some sensors have built-in temperature compensation to help keep readings correct.

Which sensor should you use for detecting if a door is open or closed?

You should use a reed switch for simple open or closed detection. It works well for doors and windows. Hall effect sensors can also do this job, but reed switches are often cheaper and easier to use.

Do magnetic sensors work in dirty or wet environments?

Many magnetic sensors, like Hall effect sensors, work well in dirty or wet places. They do not need direct contact with moving parts. This makes them good for harsh environments, such as cars or factories.

How do you choose the right magnetic sensor for your project?

You should think about what you want to measure, how sensitive the sensor needs to be, and where you will use it. Check the sensor’s size, cost, and how it handles temperature or vibration. Pick the sensor that matches your needs best.

Can you use magnetic sensors in smartphones?

Yes, you can. Smartphones use magnetic sensors to detect direction, screen position, or accessories. These sensors help your phone know how you hold it or when you close a smart cover.

Tip: Always read the sensor’s datasheet before you use it. This helps you understand its limits and best uses.
