How to handle ABS sensor replacement on modern cars

If you want to learn how to replace abs brake sensor, this tutorial gives you the steps you need. First, use a proper guide to find the abs sensor location. Loosen wheel nuts, lift your car, and disconnect the sensor. Clean the area and install the new one. This tutorial highlights safety and the right tools. A good guide and a clear tutorial make diy jobs like this easy. You can handle how to change abs sensor with confidence.

Key Takeaways

• ABS sensors watch how fast wheels spin. They help stop wheels from locking when you brake. This makes driving safer.

• If an ABS sensor is broken, warning lights turn on. You might have trouble braking or lose traction.

• Use an OBD-II scanner to check for problems. Also, look at the sensor to spot any issues.

• Get the right tools before you start. Always follow safety rules when changing an ABS sensor.

• Clean around the sensor before you put in a new one. Use grease to make it easier and stop rust.

• Make sure the new sensor fits your car’s model and wires. This helps it work the right way.

• After you change the sensor, clear any error codes. Take a test drive to see if the ABS works.

• Check and clean ABS sensor wires often. This helps stop problems and saves money on repairs.

ABS Sensor Basics

What Is an ABS Sensor?

You find the abs sensor as a small but vital part of your car’s braking system. This sensor sits near the wheel and tracks how fast each wheel spins. The abs sensor sends this information to the car’s computer. When you press the brake pedal, the computer uses this data to help control the brakes. The abs sensor helps prevent the wheels from locking up. This keeps your car stable and lets you steer during hard stops. In every abs sensor tutorial, you learn that the sensor works with the reluctor wheel and uses either a magnetic or hall-effect sensor to read wheel speed. The abs sensor is also called a wheel speed sensor in many technical guides.

Tip: If you want to understand how anti-lock brakes work, start by learning about the abs sensor. It is the main part that tells the system what each wheel is doing.

Why ABS Sensors Matter

The abs sensor plays a key role in keeping you safe. When you brake hard, the abs system uses the sensor’s data to stop the wheels from locking. This action helps you keep control of your car, even on wet or slippery roads. The abs sensor also works with other safety systems, like traction control and electronic stability control. Studies show that abs can lower the risk of crashes and help you stop faster in emergencies. If your abs sensor fails, your car’s computer cannot manage the brakes properly. You might see a warning light on your dashboard. You could also notice that your brakes do not work as well as before. Every tutorial on abs sensor replacement will tell you to fix a faulty sensor right away to keep your car safe.

Types of ABS Sensors

You find several types of abs sensors in modern cars. Most tutorials explain two main types: passive and active sensors.

• Passive sensors use a magnet and coil. They create a signal when the wheel turns. These sensors work well but only at higher speeds.

• Active sensors need power from the car. They use a hall-effect chip to give more accurate data. Active sensors can read wheel speed even when you drive very slowly. They can also tell which way the wheel turns.

Some cars use magnetic sensors, while others use hall-effect sensors. Older cars often have inductive sensors, which use a coil and magnet. Newer cars may use optical or radar sensors for advanced features. Each type of abs sensor has its own strengths. Your car’s service manual or a good abs sensor tutorial will help you find out which type your car uses.

Note: Always check your car’s manual before starting a tutorial. The abs sensor type and location can change from one model to another.

Signs of a Faulty ABS Sensor

Common Symptoms

When you have a faulty abs sensor, your car will show clear signs. You need to watch for these symptoms to keep your abs system working well.

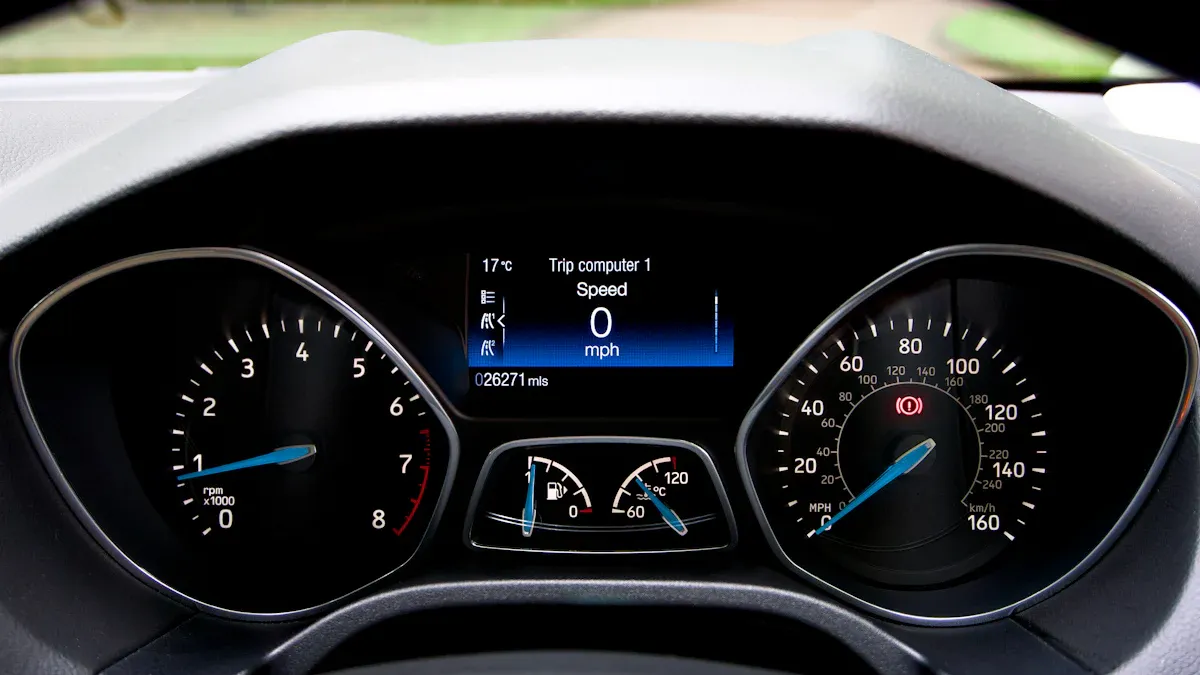

ABS Warning Light

The most common sign of a failing abs sensor is the abs warning light on your dashboard. This light turns on when the car’s computer finds a problem with the abs system. If you see this light, you should check your abs sensor right away. Many diagnostic tools, like OBD scanners, can read codes such as C1204, which points to a wheel speed sensor issue. When you see this code, you know the abs sensor needs attention.

Braking Issues

A faulty abs sensor can cause your brakes to act strangely. You might feel the brake pedal pulsate or notice the abs activates even on dry roads. Sometimes, your car may take longer to stop, or you may feel the car move in an odd way when you slow down. These problems happen because the abs system cannot get the right data from the sensor. You may also see your brake pads and discs wear out faster than normal.

Traction Control Problems

Your abs sensor does more than help you stop. It also works with traction control and stability systems. If you have a failing abs sensor, you might lose traction control. Your car could slip or slide more easily, especially on wet or icy roads. This makes driving less safe.

Tip: If you notice any of these symptoms, check your abs sensor soon. Early action can prevent bigger problems.

Diagnosing ABS Sensor Problems

You can use several methods to find out if you need to replace a faulty abs sensor. Modern cars make this process easier with built-in diagnostics.

OBD-II Scanner Codes

Start by connecting an OBD-II scanner to your car. Turn on the ignition and read the abs trouble codes. Codes like C1204 tell you which wheel speed sensor has a problem. The scanner also gives you live data, so you can see if the sensor is sending the right signals. This step helps you find the exact sensor that needs attention.

Visual Inspection

Look at the abs sensor and its wiring. Check for dirt, rust, or broken wires. Sometimes, you will find a loose or damaged reluctor ring near the sensor. Cleaning the sensor or fixing the wiring can solve the problem. If you see damage, you may need to replace the sensor.

Testing Sensor Resistance

You can use a digital multimeter to test the abs sensor. Measure the resistance of the sensor coil. Most sensors should read between 500 and 3000 ohms. If the reading is outside this range, the sensor may be bad. You can also check for shorts to ground or test the sensor’s output by spinning the wheel and watching for voltage changes.

A failing abs sensor can cause many problems, but with these steps, you can find and fix the issue. If you need to replace a faulty abs sensor, follow the guide in the next section.

How to Replace ABS Brake Sensor

Preparation and Tools

Before you start, gather all the tools and supplies you need for this tutorial. Having everything ready makes the process smoother and safer. Here is a guide to the essential items:

• Jack and jack stands

• Lug wrench or tire iron

• T-25 Torx screwdriver or 5mm hex key (check your car’s manual)

• Flathead screwdriver

• Wire brush or sandpaper

• WD-40 or penetrating spray

• Digital multimeter

• Safety glasses and gloves

• High-temperature grease or Sil-Glyde

• OBD-II scan tool

You will use these tools to remove the wheel, access the abs sensor, and complete the replacement. Always choose OEM or high-quality parts for the best results. This tutorial recommends checking your vehicle’s service manual for any model-specific instructions.

Tip: Lay out your tools before you begin. This step saves time and helps you avoid missing anything during the replacement.

Safety Steps

Safety comes first in every tutorial about how to replace abs brake sensor. Follow these steps to protect yourself and your vehicle:

1. Wear safety glasses and gloves to shield your eyes and hands.

2. Park your car on a flat surface. Set the parking brake and place wheel chocks behind the tires.

3. Disconnect the negative battery cable. This step prevents electrical shocks and accidental airbag deployment.

4. Use a jack to lift the car. Support it with jack stands. Never work under a car supported only by a jack.

5. Double-check that the car is stable before you start the replacement.

Note: Never drive with a faulty abs sensor. Your braking system may not work as designed, especially on slippery roads.

Removing the Old Sensor

This part of the tutorial gives you a step-by-step guide on how to change abs sensor safely and correctly. The process may look different depending on your car, so always check your manual for model-specific details.

1. Loosen the wheel nuts slightly before lifting the car. Remove the wheel after the car is secure on jack stands.

2. Locate the abs sensor. You will usually find it near the wheel hub or inside the wheel assembly.

3. Inspect the sensor and wiring for dirt, rust, or damage. Clean the area with a wire brush or sandpaper if needed.

4. Spray WD-40 or penetrating oil on the sensor mounting bolt to help loosen it.

5. Disconnect the abs sensor’s electrical connector. Press the tab and pull gently to avoid damaging the wiring.

6. Remove the sensor retaining bolt using the correct tool (often a T-25 Torx or 5mm hex key).

7. Carefully twist and pull the sensor out of its mounting hole. Do not yank on the wire. If the sensor feels stuck, work it out slowly to avoid breaking it.

8. Remove any clips or fasteners holding the sensor wire. Note the wire routing so you can install the new sensor the same way.

Tip: Take a photo of the sensor and wire routing before removal. This guide helps you during installation.

A good tutorial on how to replace abs brake sensor always reminds you to clean the mounting area before installing the new sensor. Apply a small amount of high-temperature grease to the sensor o-ring if your car uses one. This step makes future replacement easier and helps prevent corrosion.

If you follow this guide, you will complete the replacement safely and efficiently. The next part of the tutorial will show you how to install the new sensor and finish the job.

Installing the New Sensor

You have removed the old sensor. Now you can start the installation of the new abs sensor. This part of the tutorial will help you finish the job with confidence. Follow this guide step by step for a smooth replacement.

1. Clean the Mounting Area
   Use a wire brush or sandpaper to clean the sensor hole and the area around it. Dirt or rust can cause problems with the new sensor. A clean surface helps the sensor work well.

2. Apply High-Temperature Grease
   Put a small amount of high-temp grease on the sensor’s O-ring or the mounting surface. This step makes future replacement easier and helps prevent rust. Do not use too much grease. Only a thin layer is needed.

3. Insert the New Sensor
   Slide the new abs sensor into the mounting hole. Make sure it sits flat and lines up with the bolt hole. Do not force the sensor. If it does not fit, check for dirt or damage.

4. Secure the Sensor
   Use the correct bolt or screw to hold the sensor in place. Tighten it by hand first, then use your tool to finish. Do not overtighten. You can break the sensor or strip the threads.

5. Connect the Electrical Plug
   Attach the sensor’s connector to the car’s wiring harness. Listen for a click to make sure it locks in place. A loose connection can cause abs warning lights or system errors.

6. Route and Secure the Sensor Wire
   Follow the same path as the old wire. Use the clips or fasteners you removed earlier. Keep the wire away from moving parts like the axle or brake rotor. This guide helps you avoid wire damage.

7. Reinstall the Wheel
   Put the wheel back on and hand-tighten the nuts. Lower the car to the ground. Tighten the nuts in a star pattern for even pressure.

8. Reconnect the Battery
   Attach the negative battery cable. This step lets the abs system reset and prepares the car for testing.

Tip: Take your time during installation. Rushing can lead to mistakes or missed steps. A careful guide helps you avoid problems later.

After you finish, use an OBD-II scanner to clear any abs codes. Start the car and check for warning lights. Take a short test drive to make sure the abs system works. This tutorial gives you the steps you need for a safe and successful replacement.

Model-Specific Notes

Every car is a little different. This part of the tutorial gives you extra tips for replacing abs sensor on different models. Always check your service manual for details about your car.

• Sensor Location
  Some cars have the abs sensor mounted on the wheel hub. Others place it on the axle or near the brake rotor. The guide in your manual will show the exact spot.

• Connector Types
  You may find different connectors. Some use a simple plug. Others have a locking tab or a weather seal. Make sure you match the new sensor to your car’s connector.

• Wire Routing
  The path for the sensor wire can change from one model to another. Use the same clips and fasteners as the old wire. This tutorial recommends taking a photo before removal to help with installation.

• Torque Specs
  Some cars need the sensor bolt tightened to a certain torque. Check your manual for the right number. Too much force can break the sensor.

Note: If you have a car with advanced abs or traction control, you may need to calibrate the system after replacement. Your manual or a scan tool can guide you through this step.

• Common Models
  For cars like BMW, VW, or Subaru, you may need special tools or extra steps. The service manual or a trusted online tutorial will give you a detailed guide for your model.

Tip: If you feel unsure about any step, look for a video tutorial or ask a mechanic for help. A good guide can save you time and trouble.

This tutorial on how to replace abs brake sensor covers the basics and gives you the tools to handle most jobs. With the right guide, you can finish the replacement and keep your abs system working well.

Changing ABS Sensor on Different Cars

European Models

European cars have some special features in their ABS sensor setups. Cars like the BMW E9x and VW Golf GTI Mk V use advanced sensors. You can find both passive and active sensors in these cars. Active sensors, like Hall Effect or Magneto Resistive, are more accurate. They work at all speeds and help with safety systems, such as Hill Hold Assist.

Some cars use special hardware, like grommets or wire clips, to hold the sensor. Certain European cars have sensors that can tell if the wheel spins backward. This helps with stability control. If you work on a Mercedes with Sensotronic Brake Control, check the sensor and solenoid valves.

Here is a table with some European cars and their ABS sensor details:

Tip: Always look in your service manual for the right sensor and how to mount it. Some European cars need all sensors changed if you see many warning lights.

Japanese Models

Japanese cars, like Subaru Impreza and Toyota Camry, use strong ABS sensor designs. The wheel speed sensor is usually on the hub or near the brake rotor. Many Japanese cars use active sensors for good performance in any weather.

Sometimes, the sensor is built into the hub assembly. If it breaks, you may need to change the whole hub. Toyota says to use genuine parts for the best fit and safety. These sensors have a warranty if a dealer installs them.

Check the connector style before buying a new sensor. Some cars use plugs that keep out dirt and water. If more than one sensor is damaged, replace all of them to keep the ABS system balanced.

• Subaru Impreza: Sensor is held by one bolt and is easy to reach.

• Toyota Camry: Sensor may be part of the hub, so replacement takes more work.

• Honda Accord: Uses active sensors with simple plug connectors.

Note: If your car has features like traction control, make sure the new sensor works with all functions.

American Models

American cars, like Ford, Chevrolet, and Toyota made for the U.S., use different ABS sensor designs. Many newer trucks and SUVs have sensors built into the hub and bearing assembly. This makes changing the sensor easier, but you might need to replace the whole assembly.

Toyota and other makers say to use genuine sensors. These parts have a warranty and meet high standards. If you use non-genuine parts, you could lose your warranty and have system problems.

Always check your owner’s manual or ask a dealer for the right part. Some American cars use sensors that read both speed and direction. This helps with stability control. If you see ABS or traction control lights for more than one wheel, you may need to change all sensors at once.

Tip: When changing abs sensor on American cars, always use the right sensor for your car. The correct wheel speed sensor keeps your ABS and safety systems working right.

Troubleshooting an ABS Sensor

Stuck or Seized Sensors

When you try to remove an abs sensor, you might find it stuck or seized in place. This happens often in areas with lots of road salt or moisture. Corrosion can build up around the sensor, making it hard to pull out. If you force the sensor, you could break it or damage the mounting hole.

Start by spraying penetrating oil around the sensor base. Let it soak for a few minutes. Use gentle twisting and pulling motions. If the sensor will not budge, try using a plastic trim tool to pry it out. Avoid using metal tools that can scratch or break the sensor. If the sensor breaks off, you may need to carefully drill out the remains. Always clean the mounting hole with a wire brush before installing a new sensor.

Tip: Take your time and use patience. Rushing can lead to more damage and a bigger repair job.

Broken Bolts or Connectors

Sometimes, the bolts that hold the abs sensor in place snap off due to rust or over-tightening. If this happens, you need to remove the broken bolt with a bolt extractor. Use steady pressure and avoid drilling too deep, which can harm the hub.

Connectors can also break or corrode. If you see green or white powder on the connector, that means corrosion is present. Clean the contacts with electrical cleaner. If the connector is damaged, replace it with a new one from your auto parts store. Make sure the new connector fits tightly and locks in place.

A common troubleshooting step is to check the wiring for rodent damage. Mice and other animals sometimes chew through sensor wires, causing the abs warning light to come on. Look for any cuts or missing insulation along the wire.

ABS Light Won't Turn Off

You might replace the abs sensor and still see the abs warning light on your dashboard. This can be frustrating. Research shows that wiring issues are a leading cause of this problem. Wires can break or corrode, especially near the wheel where they flex and face road debris. Even after replacing the sensor, a bad wire or connector can keep the light on.

Modern vehicles use self-diagnostic systems. You can use an OBD-II scan tool to read error codes and see if the problem is fixed. Sometimes, the system needs to be reset after a repair. If the light stays on, check the wiring harness for damage. Compare live data from each wheel speed sensor. If one sensor shows a different reading, you may have a wiring or signal issue.

False abs activations can also happen if the sensor tip is dirty or the tone ring is damaged. Clean the sensor and inspect the tone ring for cracks or missing teeth. Make sure the sensor sits at the correct distance from the ring. If the air gap is too wide or too narrow, the abs system may not work right.

Note: Do not replace parts without a full diagnosis. Many abs problems come from wiring or signal issues, not just the sensor itself.

A careful approach to troubleshooting an abs sensor helps you find the real cause and fix it the first time.

Sensor Wire Issues

Sensor wire problems are a common cause of ABS warning lights and braking issues. You may notice the ABS light on your dashboard. This often points to a problem with the sensor wiring, not the ABS module itself. Wires for ABS sensors run close to the wheels. They face dirt, water, and road debris every day. Over time, these wires can wear out, break, or become corroded.

Start with a visual inspection. Look at the wires near each wheel. Check for cracks, cuts, or missing insulation. Sometimes, you may see green or white powder on the wires or connectors. This is a sign of corrosion. Dirt and debris can also build up around the sensor and wire. Metal shavings from brake parts may stick to the sensor tip. This contamination can send false signals to the ABS system.

You should check the wiring for continuity. Use a digital multimeter to test if electricity flows through the wire. If the wire has no continuity, you have found a break or a bad connection. Many ABS problems come from damaged wires, not the sensor itself. If you find a damaged wire, you can repair it with a soldering kit or replace the section with a new wire. Make sure to use waterproof connectors to keep out moisture.

Cleaning the sensor and wire area helps prevent future problems. Use a soft brush or cloth to remove dirt and debris. Avoid using harsh chemicals that can damage the wire insulation. After cleaning, check the sensor and wire again for any signs of wear.

Diagnostic scan tools help you find sensor wire issues quickly. Plug in the tool and read the ABS fault codes. These codes tell you which sensor or wire has a problem. Once you fix the wire, you may need to reset the ABS light. You can do this by disconnecting the battery for a few minutes or using the scan tool.

Routine maintenance is important. Inspect and clean the sensor wires every time you rotate your tires or change your brakes. This simple step can save you from bigger repairs later.

Tip: If you see the ABS light come on after driving through mud or snow, check the sensor wires for dirt or damage. Cleaning them may solve the problem right away.

You can handle troubleshooting an abs sensor by following these steps. Careful inspection and regular cleaning keep your ABS system working safely.

After You Replace a Faulty ABS Sensor

Clearing ABS Codes

After you replace a faulty abs sensor, you need to clear any stored codes in your car’s computer. Most modern vehicles keep ABS warning lights on until you reset the system. You can do this in two main ways:

1. Use an OBD-II scan tool to connect to your car’s diagnostic port. Select the ABS module and clear any trouble codes. This method works best because it also lets you check for new codes.

2. Disconnect the negative battery cable for about 10 minutes. This step can reset the warning light in some cars. Always check your owner’s manual before disconnecting the battery.

Some vehicles need extra steps after sensor replacement. Certain models require you to perform a calibration or programming process using a scan tool. If your ABS light stays on, check for new codes and make sure the sensor is installed correctly.

Tip: Always read the fault memory from the ABS module after installation. This helps you catch any hidden issues before you drive.

Test Drive and Check

You should always test your work before calling the job done. A careful test drive helps you confirm that the ABS system works as it should. Here is a simple checklist to follow:

1. Start the engine and check that the ABS warning light turns off after a few seconds.

2. Drive at a low speed in a safe area. Gently apply the brakes and watch for any warning lights or strange noises.

3. Use a scan tool to monitor live ABS data while driving. Make sure the sensor outputs match the other wheels and stay within normal ranges.

4. Perform a few stops on different surfaces, such as dry pavement and gravel, to see if the ABS activates smoothly.

5. Visually inspect the sensor wiring and connectors after your drive. Look for any loose plugs or damaged wires.

If you notice any problems, check the sensor output with a multimeter or oscilloscope. You can also swap sensors between wheels to see if a fault follows the sensor. This step helps you confirm that the new sensor works correctly.

Maintenance Tips

Regular care keeps your ABS system working well. Here are some easy tips to help you avoid future problems:

• Inspect the ABS sensor wires and connectors every time you rotate your tires or change your brakes.

• Clean dirt and debris from the sensor area with a soft brush. Avoid using harsh chemicals that can damage the wires.

• Check for signs of corrosion or damage, especially if you drive in areas with road salt or mud.

• Use a scan tool to check for stored codes or sensor errors during routine maintenance.

• If your car has advanced ABS or traction control, follow the service manual for calibration steps after any repair.

Keeping your ABS system clean and checking it often helps you avoid costly repairs. If you ever feel unsure, ask a professional for help.

You can change an ABS sensor if you follow some simple steps. First, use a scan tool to check for problems. Look at the wires to see if they are damaged. Always pick OEM or good quality parts for your car. Clean the spot where the new sensor will go before you put it in. When you finish, clear any error codes and test if the system works.

• Check your ABS system often and fix problems quickly to keep it working well.

• Read your car’s manual for tips about your model.

• Ask a mechanic for help if you are not sure what to do.

• Checking your ABS sensor often can stop problems before they start.

FAQ

How do you know if your ABS sensor is bad?

You may see the ABS warning light on your dashboard. You might notice strange braking or traction control problems. A good tutorial can help you check the sensor with a scan tool or by looking for damage.

Can you drive with a faulty ABS sensor?

You can drive, but your car’s safety systems will not work as designed. You may lose anti-lock braking and traction control. Always follow a tutorial to replace the sensor as soon as possible for your safety.

Do you need to reset the ABS system after sensor replacement?

Yes, you should reset the ABS system. Use a scan tool or disconnect the battery for a few minutes. Many tutorials explain how to clear codes and check if the repair worked.

Are ABS sensors the same on all cars?

No, ABS sensors differ by car make and model. Some use active sensors, while others use passive types. Always check your vehicle’s manual or a trusted tutorial before buying a replacement.

What tools do you need to replace an ABS sensor?

You need a jack, jack stands, lug wrench, screwdriver, wire brush, and a scan tool. Some cars may need special tools. A tutorial will list the exact tools for your car.

Can you clean an ABS sensor instead of replacing it?

You can sometimes clean a dirty ABS sensor with a soft brush. If cleaning does not fix the problem, you need to replace it. Follow a tutorial for cleaning steps and safety tips.

How long does it take to change an ABS sensor?

Most people can change an ABS sensor in 30 to 60 minutes. The time depends on your car and your experience. A step-by-step tutorial makes the job easier and faster.

See Also

How Mass Air Flow Sensors Impact Vehicle Performance

Exploring The Function Of Crank Angle Sensors In Vehicles

Keeping Your Engine Healthy With Proper MAF Sensor Care

Complete Tips For Selecting The Right Car Relays

Step By Step Guide To Safely Replace Blower Motor Resistor
