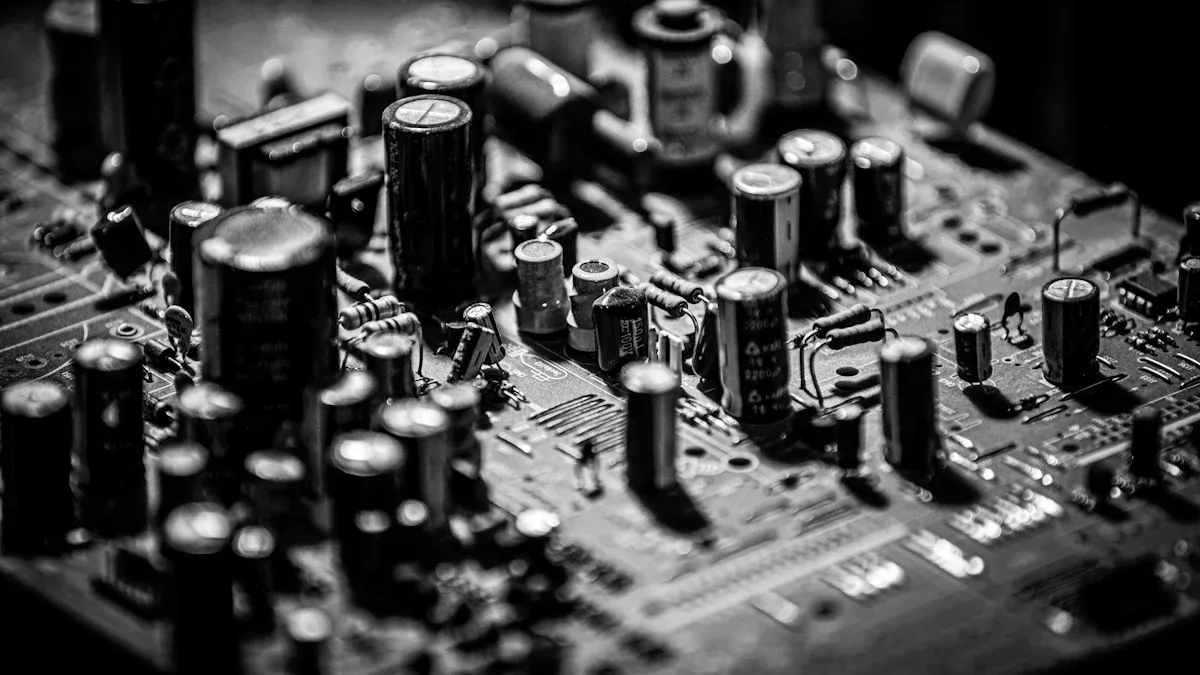

Energy Storage in Capacitors Explained for Everyday Applications

Capacitors are important for storing energy and using it quickly, as described by the energy capacitor equation. You encounter capacitors every day, such as in camera flashes or electric cars. They hold energy by separating charges, which creates an electric field. Capacitors operate faster than batteries when it comes to charging and discharging. For instance, they assist cars in accelerating and conserving energy during braking. This can reduce energy waste by up to 20%. The supercapacitor market, valued at $4.2 billion in 2023, is expanding at a rate of 14.1% each year. This illustrates how valuable capacitors are for energy storage.

Key Takeaways

• Capacitors store energy quickly and release it fast. They are great for camera flashes and electric cars.

• They have two metal plates with a material in between. This material helps hold energy by creating an electric field.

• Capacitors charge and discharge in seconds. Batteries take hours, so capacitors are better for quick energy needs.

• Supercapacitors are special capacitors that store more energy. They are used in things like braking systems in electric cars.

• Capacitors last a long time, over 50,000 cycles. This is much longer than most batteries.

• They work well in very hot or cold temperatures, from -40°C to 75°C. This makes them useful in many situations.

• Always discharge capacitors safely to avoid electric shocks. Follow safety rules when handling them.

• Capacitors are important in renewable energy. They store energy from solar panels and wind turbines.

What Is a Capacitor?

A capacitor is a tool that stores electrical energy in an electric field. Think of it as a small battery that charges and discharges quickly. Capacitors are very useful in electronics. They help filter signals, steady power supplies, and store energy for short uses.

Definition and Basic Function

Capacitors store energy between two metal plates separated by an insulator called a dielectric. When voltage is applied, one plate gets positive charge, and the other gets negative charge. This creates an electric field that holds the energy.

The main job of a capacitor is to store and release energy when needed. For example, in a camera flash, the capacitor charges up and releases energy quickly to create the flash. Capacitors also help keep power steady in devices, so they work properly.

Key Components of a Capacitor

Every capacitor has three main parts:

1. Conductive Plates: Metal plates where charges build up.

2. Dielectric Material: An insulating layer that keeps the charges apart. It can be made of ceramic, plastic, or air.

3. Leads or Terminals: Wires that connect the capacitor to a circuit.

How well a capacitor works depends on things like the type of dielectric, the size of the plates, and the space between them. For example, bigger plates or thinner dielectrics increase capacitance (C).

Here’s a table showing important capacitor features:

Types of Capacitors

There are different types of capacitors for various uses. Here are the most common ones:

Electrolytic Capacitors

Electrolytic capacitors store a lot of energy, making them great for power supplies and audio devices. However, they don’t last forever and can wear out over time.

Ceramic Capacitors

Ceramic capacitors are small, strong, and widely used in electronics like phones and computers. They help filter signals and keep voltage steady. They store less energy than electrolytic capacitors but last longer.

Super Capacitors

Super capacitors, also called ultracapacitors, have very high energy storage. They can charge and discharge quickly. These are used in electric cars for braking systems and backup power.

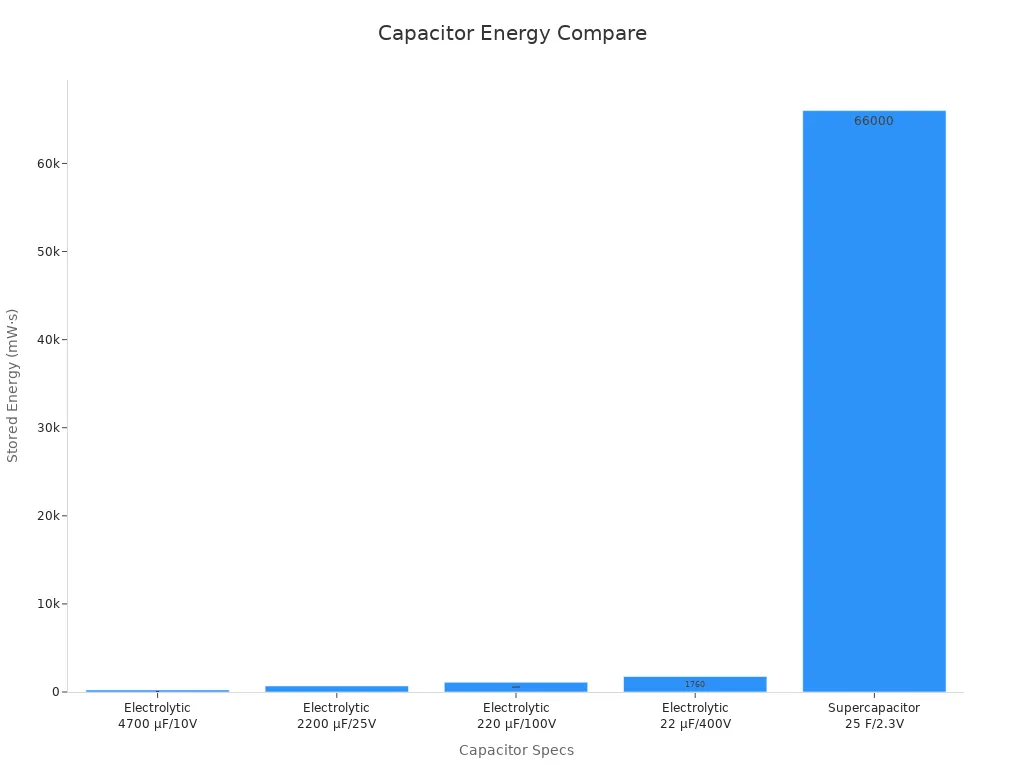

Here’s a chart comparing energy storage of electrolytic and super capacitors:

Super capacitors store about 10% of the energy of regular batteries but release energy much faster. This makes them great for quick energy needs.

Energy Storage in Capacitors

How Capacitors Store Energy

Electric Field and Charge Separation

Capacitors keep energy by forming an electric field. This happens between two metal plates. When voltage is applied, one plate gets positive charge. The other plate gets negative charge. This creates an electric field across the insulating material, called the dielectric. The energy stays in this field until the capacitor releases it.

Think of it like a temporary energy holder. For example, in a camera flash, the capacitor stores energy. It then releases it quickly to create the flash. This makes capacitors great for things needing fast energy.

Here are key steps in this process:

• Charge Accumulation: Positive and negative charges build on the plates.

• Electrostatic Field Formation: Energy is stored in the electric field.

• Discharge Cycle: Energy is released back into the circuit when needed.

The Role of Dielectric Material

The dielectric material is very important for storing energy. It stops the plates from touching each other. It also helps the capacitor hold more charge. Common dielectric materials include ceramic, plastic, or air.

The type of dielectric affects how well the capacitor works. A good dielectric increases capacitance, meaning more energy can be stored. For example, thinner dielectrics or materials with better properties store energy more efficiently.

Energy Capacitor Equation

Formula: E = ½ CV²

The formula (E = \frac{1}{2}CV^2) shows how capacitors store energy. Here:

• (E) is the energy stored, measured in joules.

• (C) is the capacitance, measured in farads.

• (V) is the voltage across the capacitor, measured in volts.

This formula shows that energy depends on capacitance and voltage. If you double the voltage, the energy stored becomes four times greater.

Other forms of the formula include:

1. (E = \frac{QV}{2})

2. (E = \frac{Q^2}{2C})

These versions show how charge, voltage, and capacitance are connected.

Factors Affecting Energy Storage

Several things affect how much energy a capacitor can hold:

• Capacitance: Bigger capacitance means more energy storage.

• Voltage: Higher voltage stores more energy.

• Dielectric Material: Better dielectrics store energy more efficiently.

• Plate Area and Distance: Larger plates and smaller gaps increase capacitance.

For example, a defibrillator uses a capacitor to store 400 joules of energy at 10,000 volts. This energy is released in one burst to help restart a heart. This shows how the energy capacitor formula works in real life.

Advantages of Capacitors for Energy Storage

Capacitors have many benefits for storing energy:

• Rapid Charge and Discharge: They can charge and release energy in seconds. Batteries take hours.

• High Power Density: They give quick energy bursts, perfect for camera flashes or braking systems.

• Long Lifespan: Capacitors last over 50,000 cycles, much longer than batteries.

• Wide Temperature Range: They work well in extreme temperatures, from -40°C to 75°C.

Here’s a table comparing capacitors with other energy storage options:

These features make capacitors great for fast, durable, and efficient energy storage.

Capacitors vs. Batteries

Energy Storage Mechanism

Capacitors and batteries store energy in different ways. A capacitor keeps energy as an electric charge on its plates. This happens because of an electric field between the plates. Batteries, however, store energy using chemical reactions. These reactions turn chemical energy into electrical energy inside the battery.

Capacitors can release energy very quickly. This makes them perfect for things like camera flashes or braking systems. Batteries release energy more slowly because of the time needed for chemical reactions. This slower release is better for devices like phones or laptops that need steady power.

Here’s a simple comparison of how they store energy:

Charge and Discharge Rates

Capacitors charge and discharge very fast. They can do this in seconds or even milliseconds. This is because they have low resistance and a simple way of storing energy. For example, a defibrillator uses a capacitor to charge quickly and deliver a life-saving shock.

Batteries take much longer to charge and discharge. For instance, lithium-ion batteries can take hours to fully charge. This is because chemical reactions take time. While slower, this steady energy release is great for long-lasting power.

The speed difference shows why capacitors are used for quick energy needs, like power stabilization. Batteries are better for devices needing energy over a long time.

Lifespan and Durability

Capacitors last much longer than batteries. Supercapacitors, a type of capacitor, can handle over 50,000 charge-discharge cycles. They can also last up to 20 years. This makes them great for long-term uses, like in renewable energy systems or electric cars.

Batteries don’t last as long. Lithium-ion batteries usually last about 5,000 cycles, while lead-acid batteries last around 1,000 cycles. Their shelf life is between 5 and 20 years, depending on the type. Batteries are also more affected by temperature changes, which can lower their lifespan.

Here’s a table comparing how long capacitors and batteries last:

Capacitors are tough and work well in extreme conditions. Batteries, while less durable, are still important for storing large amounts of energy.

Applications of Capacitors vs. Batteries

Choosing between capacitors and batteries depends on your energy needs. Capacitors are great for quick energy bursts, while batteries work better for steady, long-term power. Let’s look at how they are used in everyday life.

Everyday Uses of Capacitors

Capacitors are key parts of many electronic devices. They keep voltage stable, reduce noise, and store energy for fast use. Here are some examples:

1. Power Supply Circuits: They smooth out voltage and remove electrical noise for better device performance.

2. Audio Systems: In car audio, they store energy for amplifiers and improve sound by cutting noise.

3. Lighting Systems: They stop flickering in LED and fluorescent lights, making them more efficient.

4. Timing Applications: They help create precise timing in circuits like oscillators and pulse generators.

5. Uninterruptible Power Supplies (UPS): They give quick energy during power outages to keep systems running.

Tip: Use capacitors for fast energy needs or to boost electronics performance.

Everyday Uses of Batteries

Batteries are best for steady energy over long periods. They store energy chemically and release it slowly. Examples include:

• Power Supply Circuits: They provide reliable power for laptops and smartphones.

• Electric Vehicles: They store energy to drive cars over long distances.

• Lighting Systems: They power portable lights like flashlights and emergency lamps.

• Industrial Systems: They supply energy to machines, ensuring they work without interruptions.

Comparing Capacitors and Batteries

Here’s a table showing how capacitors and batteries are used differently:

Picking Between Capacitors and Batteries

Choose capacitors for fast energy bursts, like improving sound in audio systems or starting motors. Pick batteries for steady power, like running electric cars or industrial machines.

Knowing the strengths of capacitors and batteries helps you decide wisely. Capacitors are fast and durable, while batteries give steady energy for longer use.

Everyday Uses of Capacitors

Capacitors are important in many things we use daily. They help devices work smoothly, store energy for quick use, and make systems more efficient. Let’s see how capacitors are used in gadgets, home appliances, and vehicles.

Gadgets

Camera Flashes

Capacitors power camera flashes in photography. They store energy and release it quickly to create a bright flash. When you press the button, the capacitor sends out energy instantly for the flash. This happens because capacitors charge fast and hold energy until needed. Without them, flashes wouldn’t work as well.

Camera flash capacitors charge to high voltages in seconds. This makes them great for capturing moments that need perfect timing. Their quick energy release shows why they are useful for fast energy needs.

Backup Power in Devices

Capacitors also act as backup power in electronics. They store energy to keep devices running during power cuts. For example, in computers, capacitors stop data loss by giving energy when the main power fails. Supercapacitors are often used because they deliver energy quickly.

In backup systems, capacitors keep devices working smoothly. They are durable and charge fast, making them reliable. Unlike batteries, capacitors can handle many charge cycles, lasting a long time.

Home Appliances

Bug Zappers

Bug zappers use capacitors to create high voltage to kill bugs. The capacitor stores energy and releases it quickly when a bug touches the zapper. This sudden energy release makes bug zappers effective.

Capacitors in bug zappers also keep the voltage steady for better performance. Their ability to store and release energy fast is key to how they work.

Starting Motors in Fans and ACs

Capacitors help start motors in fans and air conditioners. They give the energy boost needed to start the motor. After starting, they keep the voltage steady for smooth operation.

Motor capacitors improve efficiency and save energy. They also protect appliances from voltage changes, making them last longer. This is why they are important in many home devices.

Cars and Transportation

Regenerative Braking

Capacitors are vital in regenerative braking systems. These systems save energy lost during braking and store it in capacitors. The saved energy powers the vehicle, making it more efficient.

Regenerative braking with capacitors can save up to 20% more energy. This is great for electric and hybrid cars. Capacitors’ fast charging and discharging make this possible.

Electric Car Power

In electric cars, capacitors help batteries by giving quick energy bursts. They assist during acceleration and other high-energy needs. Capacitors also improve energy recovery systems for better performance.

New ultracapacitors are even better for electric cars. With large capacitances, they store and release big amounts of energy quickly. This makes them perfect for high-power and durable uses.

Note: The market for car ultracapacitors is growing fast due to electric and hybrid cars. It may reach $2.52 billion by 2025, growing at 23.0% yearly.

Renewable Energy Systems

Capacitors are crucial in renewable energy systems. They boost efficiency and reliability by storing energy quickly and releasing it when needed. This makes them perfect for solar and wind power setups. Let’s see how capacitors improve these systems.

Solar Power Storage

Solar panels make electricity during the day, but energy must be saved for nighttime or cloudy days. Capacitors, especially supercapacitors, are great for this. They charge fast when the sun shines and release energy quickly when required.

Supercapacitors are better than regular batteries in many ways:

• They charge and discharge much faster due to higher power density.

• They last longer because they don’t wear out easily.

• They are more efficient, losing only about 1% of energy during charging, unlike lead-acid batteries that lose up to 30%.

In solar systems, capacitors keep voltage steady and reduce sunlight-related power changes. For example, solar streetlights use capacitors to store daytime energy and provide light at night reliably.

Wind Turbine Systems

Wind turbines turn wind into electricity, but wind speeds change, causing uneven power output. Capacitors fix this by saving extra energy during strong winds and releasing it when winds are weak.

Supercapacitors work well in wind turbines. They handle quick wind speed changes due to their fast charge and discharge abilities. Their long life also means fewer replacements are needed.

In wind farms, capacitors stabilize the grid. They store extra energy during high production and release it when demand rises. This reduces grid stress and improves energy system efficiency.

Using capacitors in wind turbines helps capture more energy and ensures steady power. This makes wind energy more dependable and eco-friendly.

Tip: For renewable energy storage, choose capacitors for their durability, efficiency, and ability to handle quick energy changes.

Safety Tips for Using Capacitors

How to Handle and Discharge Capacitors

It’s important to handle capacitors safely to avoid harm. Capacitors can hold energy even after being unplugged. Always discharge them before working on circuits. Follow these simple steps:

1. Turn Off Power: Unplug the capacitor from any power source.

2. Check Voltage: Use a multimeter to see if it still has charge.

3. Choose a Discharge Tool:

   • For small capacitors (under 50V), use an insulated screwdriver.

   • For large capacitors, use a resistor or discharge pen.

4. Discharge with Screwdriver: Hold the capacitor and touch both ends with the screwdriver.

5. Use a Resistor: Attach the resistor to the terminals and wait for it to discharge.

6. Other Tools: A light bulb or discharge pen can also work safely.

Tip: Wear insulated gloves and follow safety rules like NFPA 70E or OSHA 29 CFR 1910.137 when working with capacitors.

Here’s a table of key safety standards:

Dangers of Overvoltage and Short Circuits

Capacitors have voltage limits. Going over these limits can cause damage. Too much voltage can break the insulating layer, causing failure. It can also make the capacitor overheat, harming nearby parts. Short circuits can release energy too fast, leading to fires or explosions.

Reliability is measured in FIT (Failures in Time). This predicts failures per billion hours of use. Things like voltage, current, and temperature affect reliability. For example:

• High voltage can break the insulating layer.

• Too much current can cause overheating.

• Humidity can wear out the capacitor faster.

Note: Always pick capacitors that match your circuit’s voltage and current needs for safety.

How to Dispose of Capacitors Safely

Throwing away capacitors properly is important for the environment. Some capacitors have harmful materials like PCBs, which need special care. Follow these rules for safe disposal:

Never throw capacitors in regular trash. Take them to recycling centers or hazardous waste facilities. This keeps harmful chemicals out of the environment and follows the law.

Tip: Check local rules for capacitor disposal to avoid fines and protect nature.

Tips for Safe Use in DIY Projects

Using capacitors in DIY projects can be fun, but safety is key. Capacitors store energy, which can be dangerous if not handled properly. Follow these tips to stay safe and use them effectively.

Wear Protective Gear

Always wear safety gear when working with capacitors. Use:

• Gloves to avoid electric shocks.

• Glasses to shield your eyes from sparks.

• Mats to prevent grounding yourself.

• Shoes that stop static electricity.

• Tools with insulation for safer handling.

Tip: Keep your workspace neat and dry to avoid accidents.

Discharge Capacitors Correctly

Make sure capacitors are empty before working on circuits. Steps include:

1. Find out what type of capacitor you’re using.

2. Turn off power and unplug the device.

3. Use a resistor to empty large capacitors. Attach it to the terminals and wait.

4. For small capacitors, use a screwdriver with insulation to connect the terminals.

5. Check with a multimeter to confirm the capacitor is discharged.

Warning: Never touch charged capacitor terminals directly. Even small ones can shock you.

Know Capacitor Ratings

Check the capacitor specs before using it. Important ratings include:

1. Voltage Rating: Maximum voltage it can handle.

2. Capacitance: How much charge it stores.

3. Temperature Range: Safe temperature limits.

4. Frequency Range: Frequencies it works with.

5. Breakdown Voltage: Voltage where it stops working.

6. Maximum Operating Temperature: Going over this can damage it.

Pick capacitors that match your circuit to avoid problems.

Create a Safe Workspace

Set up your work area to reduce risks. Use good lighting and keep flammable items away. Make sure tools are in good shape and made for electrical work. Double-check connections before turning on power.

Test Your Circuit

After building your project, test it carefully. Use a multimeter to check voltage and current. If something is wrong, turn off power and fix the issue.

Note: Being patient and careful helps avoid mistakes and makes your project successful.

By following these steps, you can safely use capacitors in DIY projects. Knowing how they work and handling them properly leads to better results and fewer risks.

Capacitors are key to storing energy and powering modern devices. They charge and release energy quickly, making them useful in renewable energy, electric cars, and gadgets. For example, supercapacitors save up to 30% energy in braking systems and improve car energy use by 20%. Their long lifespan, over 1 million cycles, makes them reliable for many industries.

New capacitor technology has changed how we use energy. They are vital for renewable energy, with a market expected to reach $2.5 billion by 2030. In transportation, capacitors make up 35% of the global supercapacitor market, showing their role in eco-friendly travel.

Always handle capacitors safely. Discharge them correctly and follow safety rules to avoid harm. By learning how they work and using them wisely, you can unlock their potential to boost innovation and save energy.

FAQ

What does a capacitor do?

A capacitor saves electrical energy and releases it when needed. It helps keep voltage steady, filters signals, and gives quick energy in electronics.

How is a capacitor different from a battery?

A capacitor holds energy as an electric charge. A battery stores energy through chemical reactions. Capacitors work faster but store less energy than batteries.

Can capacitors help in renewable energy?

Yes, capacitors are useful in renewable energy. They save energy from solar panels or wind turbines and release it quickly to balance power.

Why are capacitors useful in electric cars?

Capacitors give quick energy for speeding up and braking. They also help save energy, making electric cars more efficient and eco-friendly.

How can you safely empty a capacitor?

Turn off the power first. Use a resistor or insulated tool to connect the capacitor’s ends. This safely releases the energy. Check with a multimeter to ensure it’s empty.

What are supercapacitors used for?

Supercapacitors hold lots of energy and release it fast. They are used in electric cars, renewable energy setups, and backup power systems.

Are capacitors long-lasting?

Yes, capacitors last a long time. They can handle over 50,000 charge cycles and work well in hot or cold conditions, making them very reliable.

Can capacitors take the place of batteries?

Capacitors can’t fully replace batteries because they store less energy. But they work well with batteries by giving quick energy boosts and improving efficiency.

See Also

Exploring Various Capacitor Types and Their Unique Characteristics

A Look Back at Key Developments in Capacitor Technology

The Role of Capacitors Explained Through Data Insights

Distinguishing Between Start Capacitors and Run Capacitors

Essential Steps You Should Follow for Supercapacitor Testing
