What Does Double Pole Single Throw Switch Mean in Electrical Circuits

A double pole single throw switch in electrical circuits lets people control two separate circuits with one action. The term double pole means the switch manages two independent circuits at the same time. Single throw means each circuit can only be turned on or off, with no middle setting. This type of switch has four terminals—two inputs and two outputs.

• Two poles control two circuits.

• One throw gives an on/off function per pole.

• Four terminals connect the circuits.

Understanding how a double pole single throw switch works helps ensure safe and efficient control of multiple circuits.

Key Takeaways

• A double pole single throw (DPST) switch can turn two circuits on or off at the same time.

• DPST switches have four terminals. Two are for input and two are for output. This helps connect or disconnect both circuits safely.

• Using a DPST switch makes things safer. It cuts power to both live and neutral wires. This helps protect people and equipment.

• DPST switches are used a lot in homes and factories. They are found in things like water heaters, ovens, and big machines.

• To wire a DPST switch, you must know which terminal is which. You should also turn off the power before you start working.

• DPST switches give better control than single pole switches. They can manage two circuits at once and keep them apart.

• Picking the right switch depends on how many circuits you have. It also depends on safety needs and where you will use it.

• Always use switches that have safety certifications. Follow wiring rules to keep things safe and working well.

Double Pole Single Throw Switch Basics

What Is a Double Pole Switch

A double pole switch can control two circuits at once. Each pole works with its own circuit. This means both circuits turn on or off together. People use this design to control two wires with one switch. For example, it can turn off both live and neutral wires in a power supply. This makes it safer to work on electrical devices.

Tip: Electricians use double pole switches when safety is very important. They help keep devices fully separated from power.

The double pole single throw switch has four terminals. Two terminals connect to the power source. The other two connect to the devices. When you flip the switch, both circuits open or close together. This is different from a single pole switch. A single pole switch only controls one circuit.

What Is Single Throw

Single throw means the switch has just two positions: ON and OFF. Each pole can connect or disconnect its circuit. There is no middle position. This makes the switch simple and easy to use.

A single throw switch cannot switch between many outputs. It only lets current flow or stops it. This clear ON/OFF action is important in many systems. It helps make sure both circuits are fully on or off.

DPST Switch Structure

The dpst switch puts two single throw switches in one unit. You use one lever or button to control both. It has four terminals—two for input and two for output. When you move the actuator, both circuits change at the same time.

Lab tests show dpst switches can handle high power. They also keep circuits well separated. For example, the Pickering Electronics Series 125 DPST reed relay can switch up to 1 Amp and 20 Watts. It has high insulation resistance and low contact resistance. This means it works well for many cycles. Engineers use dpst switches at home and in factories. They are safe for controlling two circuits at once.

Note: Some dpst switches use special materials and designs to work better. These changes help reduce signal loss and handle more power. This makes the double pole single throw switch good for tough jobs, like RF systems and factory machines.

A double pole single throw switch is simple but strong. It can connect or disconnect two circuits at the same time. Its design makes it important for many systems where safety and easy use matter.

How a DPST Switch Works

Internal Operation

A dpst switch can control two circuits at once. Inside, there are two contacts that move together. When you flip the actuator, both contacts move. Each contact connects or disconnects one circuit. The dpst switch works like two single throw switches joined by one lever. This lets both circuits turn on or off with one action.

Engineers use computer models to see how a dpst switch works. These models use important numbers like control current for ON and OFF, coil inductance, and resistance. The table below lists some of these details:

These numbers help show how the dpst switch works in real life and in computer tests. The switch uses one actuator to change both circuits at the same time. This makes it good for controlling two lines.

Note: The dpst switch keeps both circuits apart, even though they share one actuator.

ON and OFF States

The dpst switch has two main positions: ON and OFF. In the ON state, both circuits connect and current flows. In the OFF state, both circuits disconnect and no current flows. This makes the dpst switch simple to use.

Performance numbers help show the difference between ON and OFF. Engineers use steady state gain and time constant to measure how fast and strong the switch works. The table below gives examples:

Steady state gain shows how much the circuit changes when the dpst switch turns ON or OFF. The time constant shows how fast the circuit reaches its new state. These numbers help engineers make safe systems.

When the dpst switch is ON, both circuits work. When it is OFF, both circuits stop. This makes the double pole single throw switch safe.

Comparison with Single Pole Switch

A dpst switch and a single pole switch work in similar ways. But the dpst switch controls two circuits, while the single pole switch controls one. Both have a single throw, so they only have ON and OFF.

The table below shows the main differences:

The dpst switch gives more control and safety because it can turn off two wires at once. This is important in places that need to break both live and neutral lines, like home appliances or machines.

A dpst switch gives more control than a single pole switch. It helps keep people and equipment safe by turning off two circuits at once.

DPST Switch vs Other Electrical Switches

SPST Switch

An SPST switch stands for Single Pole Single Throw. This electrical switch controls one circuit with a simple ON or OFF action. It has two terminals. When someone flips the switch, it either connects or disconnects the circuit. Many people use this type of switch for basic tasks, such as turning lights on or off in a room. The single pole switch is easy to wire and understand. It works well for simple control needs.

A dpst switch differs from an SPST switch because it can control two circuits at the same time. The dpst switch has four terminals, while the SPST switch only has two. This means the dpst switch can turn off both the live and neutral wires in a device, making it safer for some applications. The SPST switch cannot do this because it only controls one wire.

SPDT Switch

An SPDT switch means Single Pole Double Throw. This electrical switch has one pole but two throws. It connects one input to one of two outputs. The switch has three terminals. People use SPDT switches when they need to choose between two different circuits. For example, a person might use this switch to select between two audio sources.

The dpst switch does not let users choose between two outputs. Instead, it turns two circuits on or off at the same time. The dpst switch is better for situations where both circuits must work together. The SPDT switch is better for switching between options.

DPDT Switch

A DPDT switch stands for Double Pole Double Throw. This switch controls two circuits, and each circuit can connect to one of two outputs. The DPDT switch has six terminals. It acts like two SPDT switches joined together. People use DPDT switches for more complex tasks, such as reversing the direction of a motor.

The dpst switch is simpler than the DPDT switch. The dpst switch only turns two circuits on or off together. The DPDT switch can change the path of both circuits, offering more flexibility. However, the DPDT switch needs more wiring and planning.

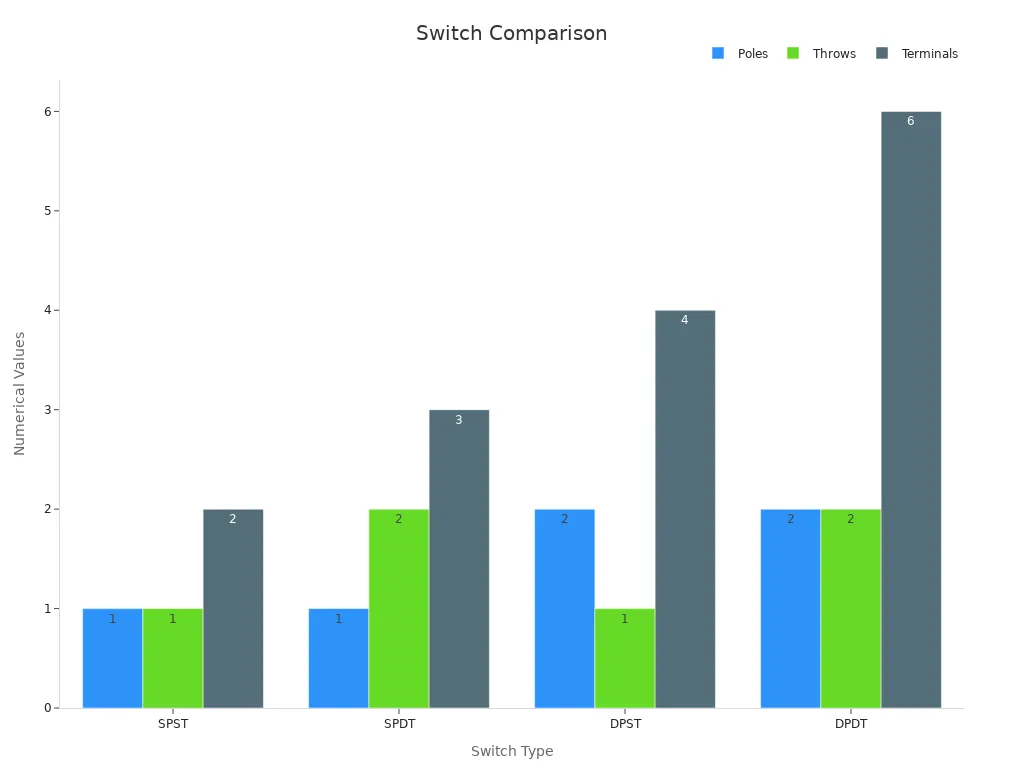

Below is a table that compares these four types of switches:

• SPST switches have one pole and one throw, making them the simplest type.

• SPDT switches add another throw, giving users a choice between two outputs.

• The dpst switch uses two poles and one throw, so it can control two circuits at once.

• DPDT switches have two poles and two throws, which allows for more complex switching.

The dpst switch stands out because it can turn two circuits on or off together with one action. This feature makes the dpst switch useful for switching dual power supplies or for safety in home appliances. However, if one pole in the dpst switch fails or closes before the other, it can cause problems in sensitive circuits. Designers must consider this when choosing a dpst switch for important tasks.

Tip: The number of poles shows how many circuits the switch can control. The number of throws shows how many outputs each pole can connect to. More poles and throws mean more complex wiring and more options for controlling circuits.

Key Differences

When comparing DPST switches to other types, several important differences stand out. Each switch type serves a unique purpose in electrical circuits. Understanding these differences helps people choose the right switch for their needs.

1. Number of Poles and Throws

The main difference between these switches comes from the number of poles and throws.

• Poles show how many separate circuits the switch can control.

• Throws show how many positions or outputs each pole can connect to.

Tip: More poles and throws mean the switch can do more complex tasks.

2. Function and Use Cases

Each switch type fits different jobs:

• SPST Switches work best for simple ON/OFF control. People use them for lights or basic appliances.

• SPDT Switches let users pick between two outputs. These switches help when someone needs to select between two circuits, like changing audio sources.

• DPST Switches control two circuits at once. They turn both ON or OFF together. This feature makes them useful for devices that need to disconnect both live and neutral wires for safety.

• DPDT Switches offer the most flexibility. They can switch two circuits between two outputs each. People use them for reversing motors or changing signal paths.

3. Wiring Complexity

Wiring gets more complex as the number of poles and throws increases.

• SPST: Simple wiring, only two terminals.

• SPDT: Three terminals, a bit more wiring.

• DPST: Four terminals, controls two circuits, but still easy to wire.

• DPDT: Six terminals, most complex, needs careful planning.

Note: DPST switches give more safety than SPST or SPDT switches because they can disconnect two wires at once.

4. Safety and Isolation

DPST switches stand out for safety. They can isolate both sides of a circuit, such as live and neutral. This feature protects people and equipment during repairs or emergencies. SPST and SPDT switches only break one side, so they may not provide full isolation.

5. When to Use Each Switch

• Use SPST for simple ON/OFF tasks.

• Use SPDT when choosing between two outputs.

• Use DPST when you need to control two circuits together, especially for safety.

• Use DPDT for complex switching, like reversing motors.

Choosing the right switch depends on the job. DPST switches offer a balance of control and safety for many home and industrial uses.

Applications of Double Pole Single Throw

Home Uses

Many homes use double pole single throw switches for important jobs. These switches are found in things like water heaters and ovens. When you flip the switch, both live and neutral wires turn off together. This keeps the appliance safe by cutting all power. People can fix or check the device without any danger.

A double pole single throw switch can control two circuits at once. Some homes use them for both heating and cooling systems. This means you need fewer switches in your house. It makes the system easier to use and fix. The switch also stops wires from crossing, which can cause problems.

These switches help homes work better and safer. They make wiring simple and lower the chance of mistakes. Their size and power ratings fit many home devices. That is why many people pick this switch for new homes.

Industrial Uses

Factories and shops use double pole single throw switches for big machines. These switches can handle more power than regular ones. Workers use them to turn off both power lines at once. This keeps people safe when fixing machines.

Control panels in factories often have these switches. They can manage two circuits, like a motor and its controls. This lets workers shut down machines fast if needed. The switch also keeps circuits apart, stopping damage from power surges.

Some places use these switches for lights, belts, and pumps. The switch makes sure both circuits stop at the same time. This lowers the risk of accidents. Repair teams like these switches because they can turn off all power with one move.

Safety Benefits

Safety is a big reason to use a double pole single throw switch. The switch cuts off both sides of a circuit. This keeps people safe from shocks and stops machines from turning on by mistake. At home, it helps keep families safe when fixing big appliances.

A double pole switch also stops circuits from mixing. This is very important in high-voltage and special devices. The switch lowers the risk of fires and broken equipment. Many rules say you must have a safety switch for some machines. Double pole single throw switches meet these rules.

Tip: Pick a double pole single throw switch for things that need full power cut-off. This makes things safer and easier to fix.

Wiring a DPST Switch

Identifying Terminals

A dpst switch has four terminals. Each terminal connects to a different wire. Two terminals are for input, and two are for output. You can find which is which by looking at a diagram or schematic. These often come with the switch. Some switches have letters like A, B, C, and D next to the terminals.

You can also use an ohmmeter to check the terminals. This tool measures resistance between two points. When the switch is OFF, all terminals should show very high resistance. This means no current can flow. When the switch is ON, A and B connect, and C and D connect. The ohmmeter will show low resistance between A & B and C & D. Other pairs will still show high resistance. This test helps you know which terminal does what.

• Check for a diagram or schematic.

• Use an ohmmeter to measure resistance.

• When OFF, all terminals have high resistance.

• When ON, A & B and C & D have low resistance.

Tip: Always check the terminal spots before wiring. This helps you avoid mistakes.

Basic Wiring Steps

Wiring a dpst switch is simple if you follow steps. You need tools like a screwdriver, wire stripper, and the switch. Always turn off the power before you start.

1. Find the four terminals on the switch.

2. Strip the ends of the wires you will use.

3. Attach the two input wires to the input terminals (often A and C).

4. Attach the two output wires to the output terminals (often B and D).

5. Tighten the screws to hold the wires in place.

6. Check that all wires are tight and in the right spot.

7. Turn the power back on and test the switch by flipping it ON and OFF.

Here is a table to help you remember the steps:

Safety Tips

Safety is the most important thing when wiring a switch. There are rules from groups like UL, CSA, SEMKO, BS, VDE, and ENEC. These rules help stop shocks and fires. Using a switch with these safety marks keeps you safer and helps you follow local laws. For example, UL is needed in the United States, and CSA is needed in Canada.

• Always turn off the power before you start.

• Use switches with the right safety marks.

• Follow the right way to solder and mount the switch.

• Be careful with locking parts.

• Use the right amount of force on screws.

• Keep switches in dry, safe places.

Note: If you follow these safety tips and use certified switches, you lower the chance of accidents. This keeps people and equipment safe.

Choosing the Right Electrical Switch

When to Use a DPST Switch

Picking the right switch depends on what the circuit needs. A double pole single throw switch is best when you must control two circuits at once. This switch works like two single pole switches joined together. You can turn both circuits on or off with one move. Engineers use this switch for machines that need to keep two circuits apart but controlled together. Keeping the circuits apart stops them from mixing, which is important in strong or tricky devices.

A double pole single throw switch is great when safety and trust matter. It is good for things that must turn off both live and neutral wires at the same time. This keeps people and equipment safe during repairs or emergencies. Many homes and factories use this switch for water heaters, ovens, and big machines. The double pole single throw switch is special when you need to control two circuits and keep them apart. These features make it better than simple switches like single pole single throw or single pole double throw in some cases.

Tip: Pick a double pole single throw switch if you need to control two circuits together and keep them apart for safety.

Factors to Consider

Choosing a switch means looking at many technical and environmental things. The right switch keeps everything safe and working well. The table below shows important things to compare for different switches:

Environmental things also matter when picking a switch:

What the switch is made of and how it is built changes how it works. Stainless steel and special plastics stop rust and handle heat. Silver or gold contacts help electricity flow and last longer. Rubber seals keep out water and dust.

Note: Always check the ratings and safety marks before using a switch. Look for marks like UL or CE to make sure it is safe.

Engineers also look at new materials and ways to help the planet. Some switches use tiny materials for better work or plastics that break down to help the earth.

When picking a switch, think about:

• How many circuits you need to control

• If you need to keep circuits apart

• Where the switch will be used

• How strong and safe the switch must be

Choosing the right switch keeps everything safe and working well.

Double pole single throw switches help control two circuits at once. They make it safe and easy to turn both circuits on or off. It is important to know how different switches work. This helps people pick the best switch for their needs. Studies show that safety, reliability, and the place where you use the switch all matter. If people learn about these things, they can make circuits safer and work better.

Picking the right switch keeps people and machines safe.
Using this information helps everyone stay safe when working with electricity.

FAQ

What does "double pole" mean in a switch?

A double pole switch controls two separate circuits at the same time. Each pole connects or disconnects one circuit. This design helps users turn off both wires with one action.

Can a DPST switch replace a single pole switch?

A DPST switch can replace a single pole switch if the user needs to control two circuits together. For only one circuit, a single pole switch works better and is simpler.

Where should someone use a DPST switch at home?

People often use DPST switches for water heaters, ovens, or large appliances. These switches help turn off both live and neutral wires, making repairs safer.

How can someone identify the terminals on a DPST switch?

Most DPST switches have four terminals. Diagrams or labels show which terminals connect to input and output wires. An ohmmeter can also help test which terminals connect when the switch is ON.

What safety tips should users follow when wiring a DPST switch?

Always turn off the power before wiring.
Use switches with safety certifications like UL or CSA.
Double-check all connections before turning the power back on.

What is the main difference between DPST and DPDT switches?

A DPST switch turns two circuits ON or OFF together. A DPDT switch can also change each circuit between two outputs.
