Definition of passive infrared movement sensors

You use passive infrared movement sensors to find motion by sensing heat changes from people or animals. These sensors notice when a new heat source, like a person, comes into their area and make something happen, like turning on lights. Infrared energy comes from all warm things and helps passive infrared movement sensors work well and correctly. They do not use much energy and do not cost a lot, so many people use them in smart homes and security systems.

Key Takeaways

• PIR sensors find movement by noticing heat changes from people or animals. They do not send out any signals. These sensors use pyroelectric materials and lenses. They spot fast heat changes and start actions like turning on lights or alarms. PIR sensors help save energy. They only turn on devices when they sense movement. This helps lower electricity bills. They are cheap, dependable, and used in many places like homes, offices, and security systems. PIR sensors work best inside small or medium rooms. They need to be put in the right spot to stop false alarms. You can get fewer false alarms by keeping sensors clean and away from heat sources. You can also change the sensitivity settings. PIR sensors use less power and cost less than ultrasonic and microwave sensors. But they do not cover as much area and have a shorter range. Cleaning and installing them the right way helps them work better and last longer.

What Are Passive Infrared Movement Sensors

PIR Sensor Basics

Passive infrared movement sensors help find motion by sensing heat from people or animals. These sensors do not send out signals. They only sense the natural infrared energy from warm things. When you walk into a room, your body gives off heat. The sensor notices this change and knows something moved.

PIR sensors work because of the pyroelectric effect. This effect lets the sensor notice quick heat changes. When you move in front of the sensor, it sees the difference between your body’s heat and the cooler background. The sensor then sends a signal to turn on a light or sound an alarm.

There are different types of PIR sensors. Here are some ways to group them:

• By beam setup: single-beam and multi-beam.

• By design: some use Fresnel lenses, others use segmented parabolic mirrors to focus infrared energy.

• By coverage: some cover less than 180°, while ceiling-mounted ones can cover up to 360°.

• By range: most PIR sensors detect up to 10 meters, but bigger ones can reach 30 meters.

Tip: PIR sensors are called "passive" because they only sense infrared energy. They do not make or send out any energy.

You can see the main types and uses of PIR sensors in this table:

Key Components

A passive infrared movement sensor has several important parts. Each part helps the sensor find motion fast and correctly.

Pyroelectric Material

The main part of every PIR sensor is the pyroelectric material. This material makes a small electric charge when it feels a temperature change. When you move in front of the sensor, your body’s heat makes the temperature rise fast. The pyroelectric material reacts and sends out an electrical signal.

• The sensor uses a crystal or thin film that reacts to heat.

• Electrodes collect the charge made by the temperature change.

• Optical filters make sure only infrared light gets to the sensor.

• Signal processing electronics turn the weak signal into a strong one that can turn on lights or alarms.

Some PIR sensors use special designs, like quad-type pyroelectric elements. These can sense very small movements, even if the temperature difference is just 4°C. This makes the sensor more accurate and helps stop false alarms.

Sensor Slots

Sensor slots are special openings or sections in the PIR sensor. These slots help the sensor focus on changes in infrared energy. Most PIR sensors use Fresnel lenses or segmented mirrors to direct the infrared energy onto the pyroelectric material.

• Fresnel lenses collect and focus infrared light from a wide area.

• Segmented mirrors can change the coverage area, making it wide or narrow.

• The slots help the sensor notice movement by creating zones of sensitivity.

When you walk through these zones, the sensor picks up the heat change. The sensor then sends a signal to a connected device, like a light or alarm. This process makes PIR sensors very good at finding motion in homes, schools, and offices.

How PIR Sensors Work

Knowing how PIR sensors work helps you see why people use them a lot. These sensors use special parts and smart designs to notice small heat changes. If you understand how PIRs work, you can use them better and make fewer mistakes.

Detecting Infrared Changes

PIR sensors find movement by sensing changes in infrared energy. Anything warmer than absolute zero gives off infrared radiation. Your body, pets, and even chairs give off this energy. PIR sensors do not see light like your eyes. They only "see" heat.

When you walk in front of a PIR sensor, this happens:

• The sensor uses a Fresnel lens or mirrors to focus infrared energy onto the pyroelectric sensor inside.

• The pyroelectric sensor reacts when it senses a change in infrared energy, like when you enter a room.

• The sensor compares your body’s heat to the cooler background.

• If the sensor notices a quick change, it knows something moved.

Note: PIR sensors do not react to slow temperature changes. They only respond to quick changes, like a person walking by.

You can think of PIR sensors as heat detectors. They do not care about color or brightness. They only care about how much infrared energy hits their sensor. This makes them good for finding people or animals, even in the dark.

Here is a simple list of how PIR sensors detect motion:

• PIR sensors detect infrared radiation from all objects warmer than absolute zero.

• The Fresnel lens focuses this energy onto the pyroelectric sensor.

• When a moving object enters the sensor’s view, the infrared energy changes.

• The sensor notices this change and gets ready to send a signal.

Signal Processing

After the PIR sensor detects a change in infrared energy, it must turn that into something useful. This is called signal processing. The sensor takes the small electrical signal from the pyroelectric material and decides if it means real motion.

Electrical Signal Conversion

The pyroelectric sensor makes a tiny electrical charge when it senses a heat change. This charge is very weak. The sensor uses special electronics to make the signal stronger and easier to read. Here is how it works:

1. The pyroelectric sensor detects a change in infrared radiation.

2. The Fresnel lens or mirror focuses the energy and shapes the detection area.

3. The sensor sends out a small electrical signal.

4. An analog-to-digital converter (ADC) changes this signal into digital data.

5. The control logic or processor checks the data and filters out noise.

Some advanced PIR sensors use digital signal processors (DSPs). These help remove extra noise and make sure the sensor only reacts to real motion, not small changes in the environment.

Triggering Actions

Once the sensor decides there is real motion, it needs to do something with that information. This is where PIR sensors become very useful in your daily life. The sensor can trigger many different actions, such as:

• Turning on lights when you walk into a room.

• Sounding an alarm if someone enters a protected area.

• Sending a signal to a smart home system to start recording video.

The sensor’s circuitry checks if the signal is strong enough to mean real motion. If it is, the sensor sends an output signal. This output can control lights, alarms, or other devices.

Tip: PIR sensors can tell the difference between body heat and background heat by looking for quick changes. This helps reduce false alarms and makes the sensor more reliable.

PIR sensors work best when you put them where they can see the whole area you want to protect. They do not need to touch or see the person directly. They only need to sense the heat change.

If you want to know how PIRs work in more detail, remember these steps:

1. The sensor detects infrared radiation from objects.

2. The lens focuses the energy onto the sensor.

3. The sensor converts the change into an electrical signal.

4. The electronics process the signal and decide if there is motion.

5. The sensor triggers an action, like turning on a light or sounding an alarm.

6. The sensor checks for quick changes to avoid false alarms.

By learning how PIRs work, you can use them in many ways to make your home or business safer and smarter.

PIR Motion Sensor Applications

PIR motion sensors are used in many places at home and work. These sensors help keep you safe, save energy, and make life easier. Let’s see some common ways people use them.

Security Alarms

PIR motion sensors are often part of security systems. They help protect your house or office by noticing movement from people or animals. If someone enters a protected area, the sensor sets off an alarm. This fast action helps stop intruders before they do harm. Security companies like these sensors because they only react to real heat changes. They do not go off for small pets or moving curtains. You can put them in doorways, halls, or outside to guard your space. Many security systems use these sensors to keep you safe all day and night.

PIR motion sensors help you feel safe by making your security better and more trustworthy.

Automatic Lighting

Another big use for PIR motion sensors is lighting control. When you walk into a room, the sensor turns on the lights. When you leave, the lights turn off after a short time. This saves energy and lowers your electric bill. You do not have to remember to flip a switch. In offices, schools, and outside, these sensors help use lights only when needed. PIR motion sensors work better for lighting than other sensors. They find people more accurately and use less power. You can put them in halls, bathrooms, and parking lots to make lighting smarter and save energy.

Tip: PIR motion sensors are the top choice for automatic lighting in homes and businesses. They save money, use less energy, and find movement well.

Other Uses

PIR motion sensors are also used in new technology. In smart homes, these sensors help control heating and cooling by checking if someone is in the room. Smart buildings use them to see how many people are there and change the temperature or lights for comfort and saving energy. Vending machines and digital signs use these sensors to light up only when someone is close, which saves power. Automatic doors in malls and hospitals open when the sensor sees you coming. Some printers and screens use these sensors to turn on only when needed. In offices, PIR motion sensors help save energy by running air conditioning or lights only when people are there.

Here is a quick list of where you might see PIR motion sensors:

• Security alarms in homes and offices

• Lighting control in rooms, halls, and outside

• Automatic doors in public places

• Smart home systems for heating and cooling

• Energy-saving in vending machines and digital signs

You can count on PIR motion sensors to notice people or movement very well. These sensors make your security, lighting, and smart home systems work better and smarter.

Advantages of PIR Sensors

Energy Efficiency

PIR sensors help you save energy at home or work. They sense heat from people and only turn on lights or systems when someone is there. They do not send out energy, just sense it. This means they use very little power. When you walk into a room, the sensor turns on the lights. When you leave, the lights turn off. This stops wasting energy and lowers your bills.

Using occupancy sensors for lighting can save 20%-65% in conference rooms, 30%-90% in restrooms, and 5%-35% in open offices.

You will see PIR sensors in smart lighting and HVAC systems. They make sure energy is used only when needed. This helps green buildings and the environment. You can count on these sensors to keep your spaces comfy and efficient.

• PIR sensors sense people by detecting body heat.

• They turn things on or off when someone is there.

• They help stop wasting energy in empty rooms.

• They work well in offices, conference rooms, and restrooms.

Cost-Effectiveness

You do not need to spend a lot for good motion detection. PIR sensors cost less than many other motion sensors. Most cost between $30 and $100. This makes them a smart pick for homes, schools, and small businesses.

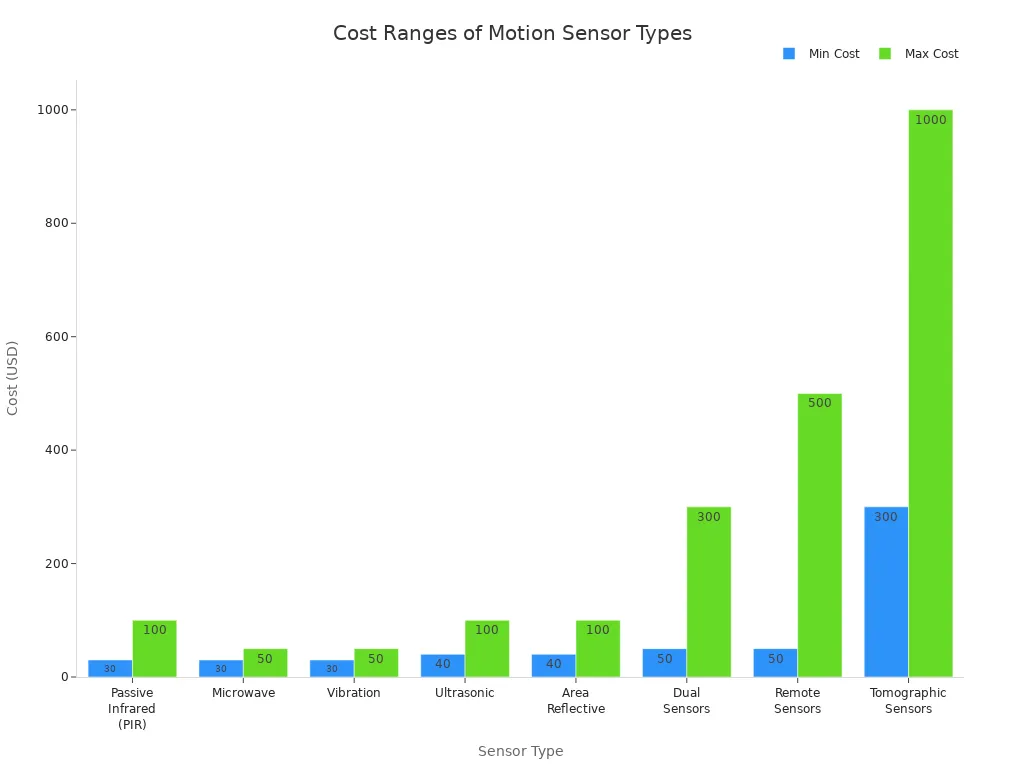

You can see PIR sensors have a fair price. Some other sensors cost much more, especially fancy ones. You get good performance without paying a lot. This is why many people choose PIR sensors.

Reliability

You want a sensor that works every time. PIR sensors are very reliable in real life. Experts check how well these sensors work by looking at accuracy, recall, and precision. These numbers show how often the sensor finds real movement and avoids false alarms.

• PIR sensors have about 77% accuracy in real tests.

• Real-time detection accuracy can reach 80.8% with better processing.

• Mean distance error for finding location is about 0.23 meters.

You can make sensors work better by putting them in the right places and using smart software. Deep learning helps PIR sensors count people and see which way they move. Using data from other sensors can make results even better. You can trust PIR sensors to give you strong and correct results in homes, offices, and smart buildings.

Limitations of PIR Sensors

Sensitivity to Temperature

PIR sensors do not always work the same everywhere. They find movement by sensing heat differences. If the room is almost as warm as your body, the sensor may not notice you moving. On hot days, the air and surfaces can be as warm as people. This makes it hard for the sensor to spot movement.

Humidity can also make the sensor less effective. When the air is humid, it absorbs more infrared energy. This weakens the signal the sensor gets. If dust or dirt covers the sensor lens, it blocks infrared energy. The sensor then becomes less accurate. Clean the lens often to help the sensor work well.

Tip: Keep your PIR sensor away from heaters, sunlight, and damp places. This helps it work better.

Detection Range

PIR sensors can only sense movement a certain distance away. Most can detect up to 30 feet, but their area is not very wide. They work best in small rooms or hallways. They are not good for big open spaces. If you want to cover a large area, you will need more than one sensor.

Here is a table that compares PIR sensors with other types:

PIR sensors are best for small, simple spaces. If you want to watch a big room or a place with many things in the way, try ultrasonic or microwave sensors.

False Alarms

Sometimes PIR sensors give false alarms. Many things can set them off, not just people or pets. Sudden changes in temperature, air blowing, or sunlight can trigger the sensor. Pets near the sensor can also cause alerts. Moving things like curtains, balloons, or even bugs on the sensor can set it off.

Here is a table showing what can cause false alarms:

You can stop many false alarms by putting the sensor in a good spot. Keep it clean and follow the instructions. Check the sensor often to make sure it works right.

PIR vs Other Motion Sensors

When you pick a motion sensor, you have many choices. PIR sensors, ultrasonic sensors, and microwave sensors all work in their own ways. It is important to know how they are different. This helps you choose the best one for your security.

PIR vs Ultrasonic

PIR sensors and ultrasonic sensors both find movement, but they do it differently. PIR sensors sense heat from people or animals. Ultrasonic sensors send out sound waves and listen for them to bounce back.

Here is how they are different:

• PIR sensors are good for indoor security. They save energy and do not cost much.

• Ultrasonic sensors can find any moving thing, no matter what it is made of. They can even sense movement through glass or thin walls.

• PIR sensors might give false alarms if the sun shines in or the room heats up fast.

• Ultrasonic sensors work well in big rooms or places with things in the way.

• You see PIR sensors a lot in home security. Ultrasonic sensors are used more in factories or large spaces.

• Some sensors use both PIR and ultrasonic parts. These are called dual-technology sensors. They are better at finding real movement and help stop false alarms.

Tip: Put your sensors in the right spot. Good placement helps stop false alarms and keeps your security strong.

PIR vs Microwave

Microwave sensors use special waves to find movement. They send out these waves, which bounce off things and come back. You can use microwave sensors to find movement through walls or in big areas.

Let’s see how they are different:

You should put PIR sensors about 2 meters high. Keep them away from vents, windows, or things that get hot. Microwave sensors do not need to be placed as carefully. But they might sense movement outside the area you want to protect.

Note: Dual-technology sensors with both PIR and microwave parts give you better security and fewer false alarms.

Choosing the Right Sensor

You want the best sensor for your security. Think about these things before you pick one:

• How big is the space? PIR sensors are best for small or medium rooms. Microwave sensors cover bigger areas.

• What kind of movement do you want to find? PIR sensors notice people or animals. Ultrasonic and microwave sensors can find any moving thing.

• What is the room like? PIR sensors may not work well if the temperature changes a lot. Microwave sensors work better in tough places.

• What about false alarms? PIR sensors can go off because of pets, sunlight, or moving air. Microwave sensors might sense movement through walls and give extra alerts.

• How much does it cost? PIR sensors usually cost less and use less power.

• Where will you use it? For homes, PIR sensors are a great choice. For big buildings or places with lots of things in the way, try ultrasonic or microwave sensors.

Remember: The right sensor makes your security system work well and helps stop false alarms. Always pick the sensor that fits your space and needs.

PIR Motion Sensor Installation Tips

Placement

You want your PIR motion sensor to work well and not give false alarms. Pick a good spot for the sensor. Put it where lots of people walk, like halls or stairs. These places help you catch anyone moving through. Mount the sensor 6 to 8 feet above the floor. This height lets it see more and miss less.

Keep the sensor away from things that get hot. Heaters, vents, ovens, and sunlight can make it go off by mistake. Try to keep the sensor at least 10 to 15 feet from heat. Do not put the sensor behind big furniture or objects. These things block the sensor and stop it from seeing movement.

Put the sensor close to doors, basements, or rooms with important things. You want it to notice someone right when they come in. Place it on walls where people walk beside its view. PIR sensors work best when people move across their view.

Tip: Do not put sensors in garages, attics, patios, or sunrooms. These places change temperature a lot and can cause false alarms.

Read the instructions from the company for best results. Use wireless sensors if you need to move them around. Make sure the sensor can see clearly and is pointed the right way. If you put it too high or too low, it may not work well. Change the sensitivity to fit your room. This helps stop missed movement or false alarms.

Here is a simple checklist for where to put your sensor:

• Mount 6–8 feet high

• Keep 10–15 feet from heat

• Put in busy areas and near doors

• Stay away from things that block or sunlight

• Angle for people walking across its view

• Use wireless if you need to move it

Maintenance

Taking care of your PIR motion sensor keeps it working well. Start by checking old records for problems. Look at the power supply. Make sure both main and backup power work. Check wires for damage or loose ends.

Look at the sensor to see if it is broken or loose. Make sure it is still in the right spot. Clear away anything in front of the sensor. Check the height and angle. Make sure nothing like bugs or dust is in the way.

Test the sensor by walking in front of it. Watch to see if it works right. This is called testing a pir. Look for false alarms, slow response, or missed movement. Clean the lens with a soft cloth and gentle cleaner. Wipe off dirt, water, or weather marks.

Update the software if the company says to. Change the sensitivity or range if needed. Recalibrate if it does not read right. Change batteries often if your sensor uses them. Throw away old batteries safely.

If you find a problem, fix it. Check wires, false alarms, or if the sensor is not working. Sometimes turning the system off and on helps. After you finish, test everything again. Write down what you did and plan the next check. Ask users for feedback and change settings to keep the sensor working well.

Note: Keeping up with PIR sensor care helps stop false alarms and keeps your security strong.

You have learned that passive infrared movement sensors find motion by sensing heat from people. These sensors help keep your home or business safe. They also help you save energy and money. PIR sensors use little power and are easy to set up. They do not give many false alarms.

• PIR sensors work in most rooms and help you save money.

• Clean them and put them in the right spot for best results.

• Other sensors, like microwave, can cover bigger spaces but use more energy.

Choose the sensor that fits what you need for safety, saving money, and comfort.

FAQ

What does a PIR sensor detect?

A PIR sensor detects heat from people, animals, or objects. You will notice it reacts when something warm moves in its view. It does not see light or color. It only senses changes in infrared energy.

Can PIR sensors work in the dark?

Yes, you can use PIR sensors in complete darkness. They do not need light to work. They sense heat, not visible light. You will get the same motion detection day or night.

Do pets trigger PIR motion sensors?

Small pets may not always trigger PIR sensors. If your pet is large or close to the sensor, it might set it off. You can adjust the sensor’s angle or sensitivity to help avoid false alarms from pets.

How do you reduce false alarms with PIR sensors?

You can reduce false alarms by placing the sensor away from heaters, windows, and vents. Clean the lens often. Set the right sensitivity. Make sure nothing blocks the sensor’s view. Test the sensor after installation.

Where should you install a PIR sensor?

Install your PIR sensor 6 to 8 feet above the floor. Place it in busy areas like hallways or near doors. Avoid spots with direct sunlight or heat sources. Make sure the sensor faces the area you want to monitor.

How long do PIR sensors last?

Most PIR sensors last 5 to 10 years. You can help them last longer by keeping them clean and dry. Change the batteries if needed. Test the sensor often to make sure it works well.

Can you use PIR sensors outdoors?

Yes, you can use PIR sensors outdoors. Pick a sensor made for outdoor use. Place it under a roof or cover. Keep it away from rain, snow, and direct sunlight. Outdoor models resist weather better than indoor ones.

Do PIR sensors use a lot of electricity?

No, PIR sensors use very little electricity. You can run them for months or years on batteries. They only use power when they sense motion. This makes them a good choice for saving energy.
